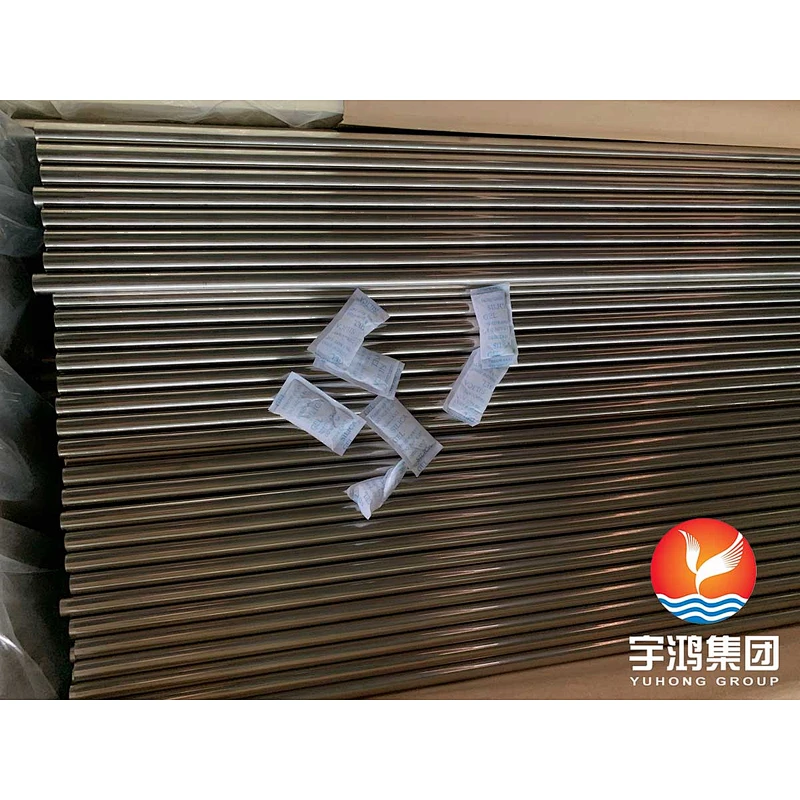

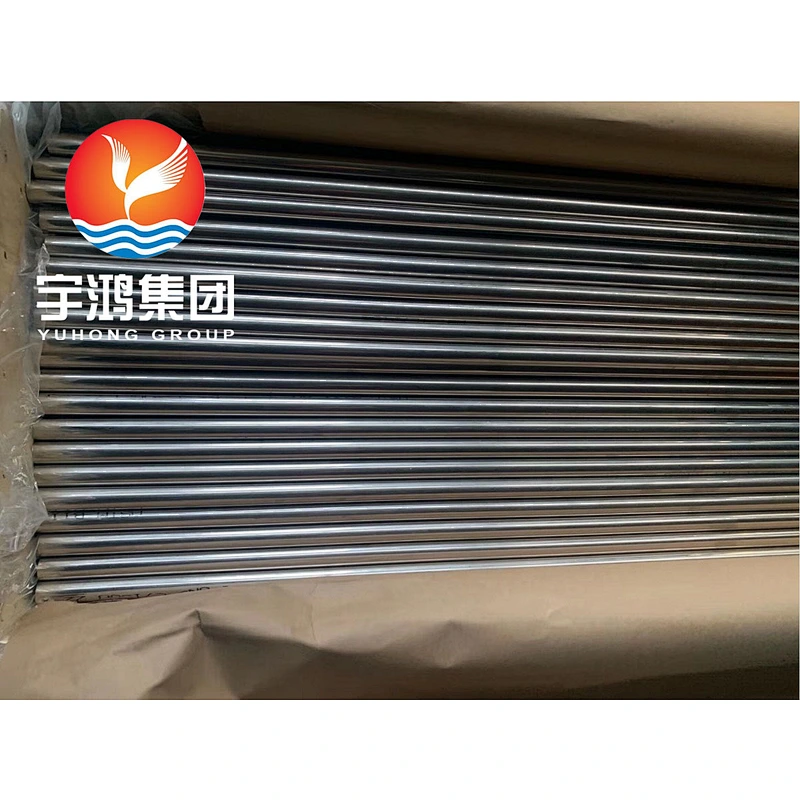

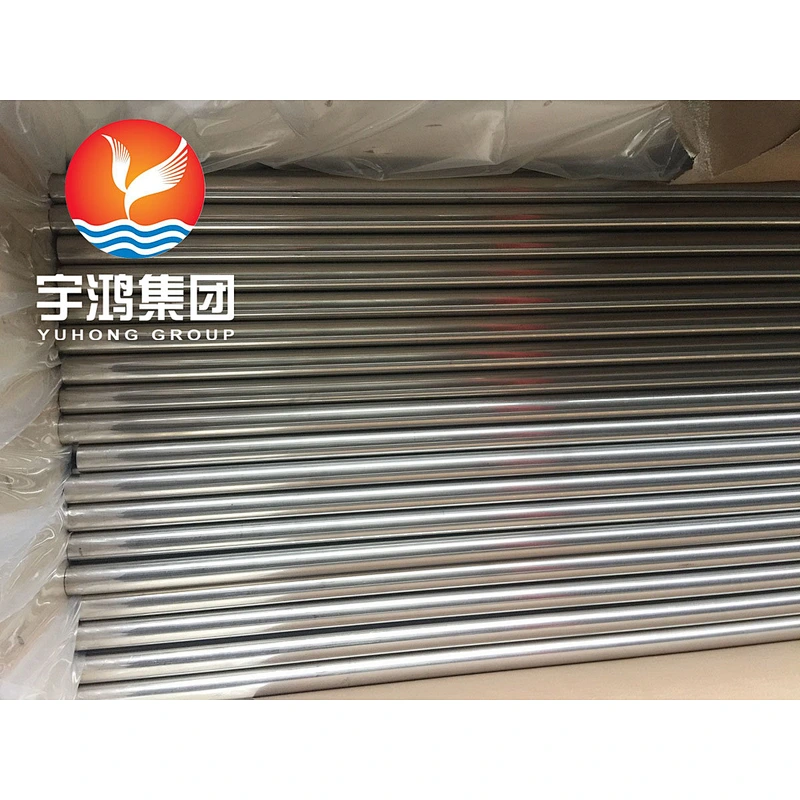

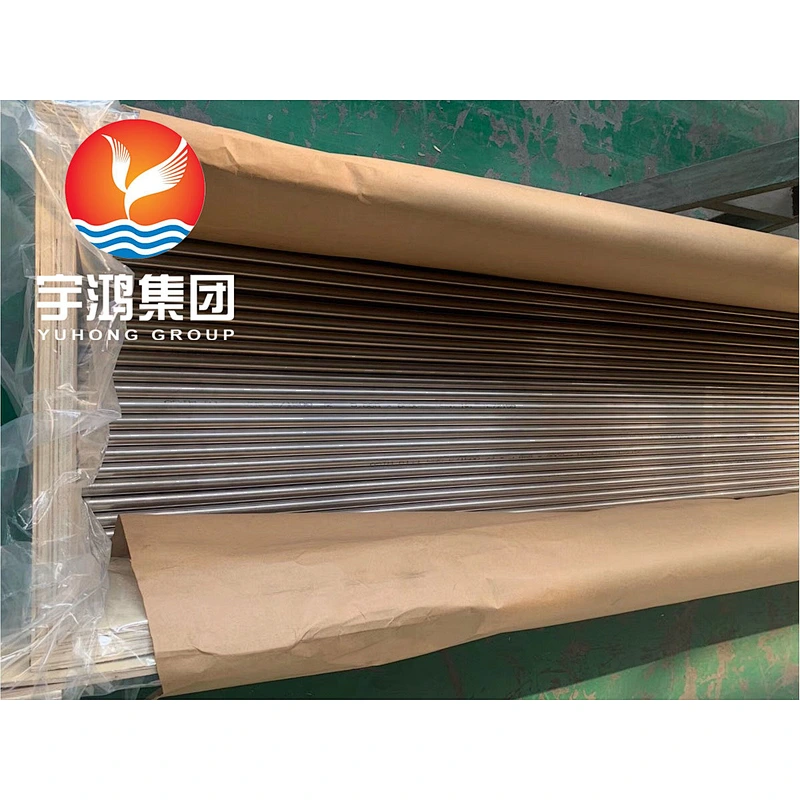

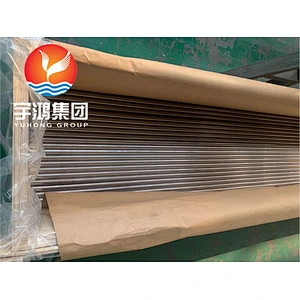

ASTM B111 C71520 Copper Nickel Alloy Tube (Condenser Tube)
ASTM B111 C71520 Copper Nickel Alloy Tube (Condenser Tube)
ASTM B111 C71520 Copper Nickel Alloy Tube (Condenser Tube)
ASTM B111 C71520 Copper Nickel Alloy Tube (Condenser Tube)
ASTM B111 C71520 Copper Nickel Alloy Tube (Condenser Tube)

ASTM B111 C71520 Copper Nickel Alloy Tube (Condenser Tube)

ASTM B111 C71520 copper nickel alloy tube which additions of iron significantly improve the resistance to erosion corrosion in flowing seawater.

Model NO.: ASTM B111 C71520
Overview

Cu-Ni alloys are alloys of copper (base metal with the largest individual content) and nickel with or without other elements, whereby the zinc content may not be more than 1%. When other elements are present, nickel has the largest individual content after copper, compared with each other element. As with other copper alloys, it is necessary to distinguish between wrought alloys, which are processed to semi-finished products, and cast alloys, from which castings are produced by various casting processes. The Cu-Ni alloys with additions of manganese are important in electrical engineering. Additions of iron significantly improve the resistance of Cu-Ni alloys to erosion corrosion in flowing seawater and other aggressive waters.



Specifications

FormSpecific Sub-FormStandardDescription
BarB151/B151MCOPPER-NICKEL-ZINC ALLOY (NICKEL-SILVER) AND COPPER-NICKEL ROD AND BAR
Condenser & Heat Exchanger Tube with Integral Fins B956/B956MWELDED COPPER AND COPPER-ALLOY CONDENSER AND HEAT EXCHANGER TUBES WITH INTEGRAL FINS
Heat Exchanger TubeB543/B543MWELDED COPPER AND COPPER ALLOY HEAT EXCHANGER TUBE
PipeB466/B466MSEAMLESS COPPER-NICKEL PIPE AND TUBE
WeldedB608WELDED COPPER ALLOY PIPE
WeldedB467WELDED COPPER-NICKEL PIPE
PlateB171/B171MCOPPER ALLOY CONDENSER TUBE PLATES
RodB151/B151MCOPPER-NICKEL-ZINC ALLOY (NICKEL-SILVER) AND COPPER-NICKEL ROD AND BAR
Rod, Bar & ShapesB124/B124MCOPPER AND COPPER-ALLOY FORGING ROD, BAR AND SHAPES
Sheet, Strip, Roller Bar & PlateB122/B122MCOPPER-NICKEL-ZINC ALLOY (NICKEL-SILVER) AND COPPER-NICKEL PLATE, SHEET, STRIP, AND ROLLED BAR
TubeB395/B395MU-BEND SEAMLESS COPPER AND COPPER ALLOY HEAT EXCHANGER AND CONDENSER TUBES
WeldedB552SEAMLESS AND WELDED COPPER-NICKEL TUBES FOR WATER DESALTING PLANTS
B359/B359MCOPPER AND COPPER-ALLOY SEAMLESS CONDENSER AND HEAT EXCHANGER TUBES WITH INTEGRAL FINS
B466/B466MSEAMLESS COPPER-NICKEL PIPE AND TUBE
B111/B111MCOPPER AND COPPER ALLOY SEAMLESS CONDENSER TUBES AND FERRULE STOCK

Trade NameUNSCopper Nickel Industry SpecificationsChemical CompositionMin.Tensile
(KSI)
Min.Yield
(KSI)
Elongation
%
CuNi 70/30UNS C71500
UNS C71520
ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543
ASTM B111, B122, B151, B171, B359, B395, B432, B467, B543, B552, B608, F467, F468
DIN 2.0882
MIL C-15726, T-15005, T-16420, T-22214
SAE J461, J463
Cu(65.0 min)
Pb .05 max*
Fe 0.4-1.0
Zn 1 max*
Ni 29-33
Mn 1 max
 521845


Chemical Composition

Elements
Cu(1,2)PbZnFePNi(3)CMnS
(1) Cu value includes Ag.
(2) Cu + Sum of Named Elements 99.5% min.
(3) Ni value includes Co.
Min (%)65.00.4029.0
Max (%)0.020.501.00.0233.00.051.00.02


Mechanical Properties

FormTemperTemper CodeTensile Strength
(ksi)
YS-0.2% Offset
(ksi)
Elongation
(%)
Section Size
(in)
Flat ProductsAs Hot Forged - Air CooledM1050 Min20 Min30 Min6
As Hot Forged - Air CooledM1045 Min18 Min30 Min
