Overview

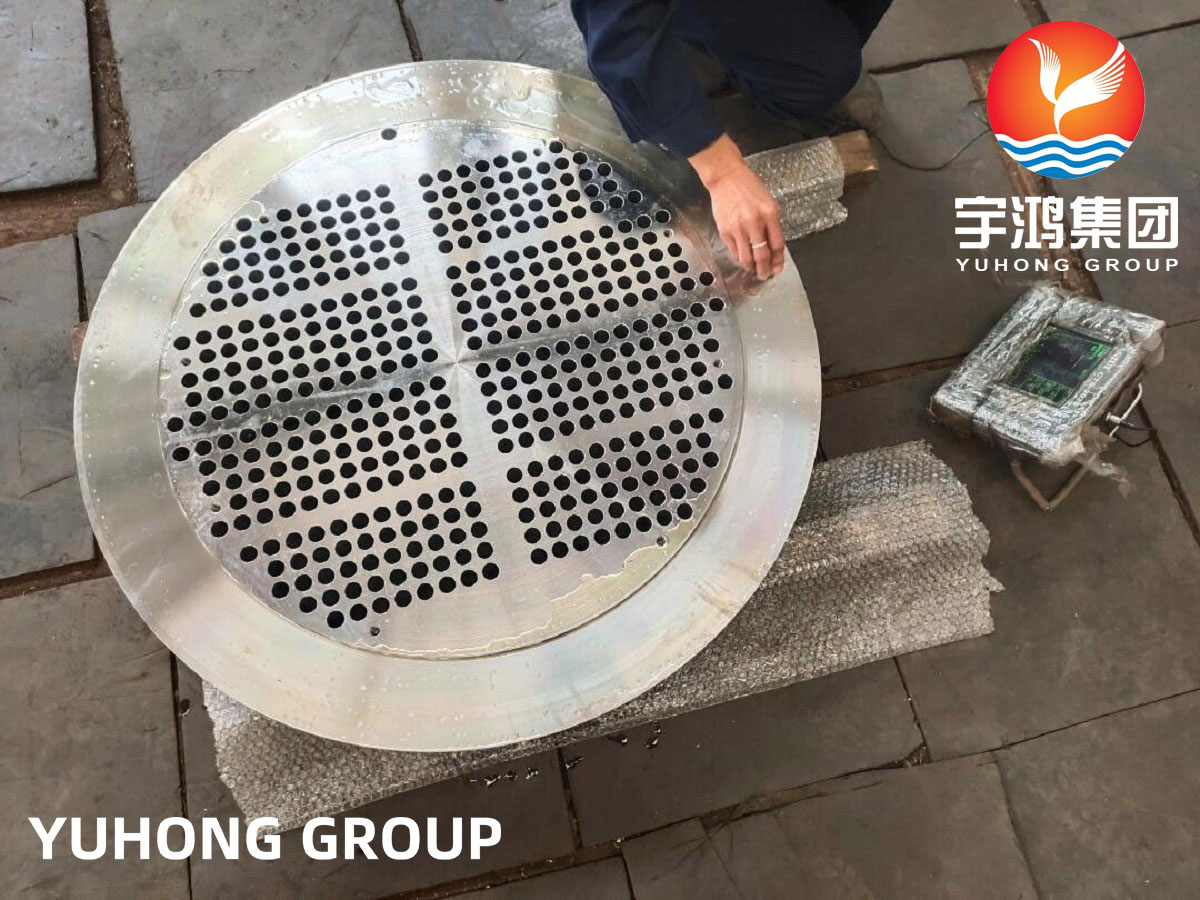

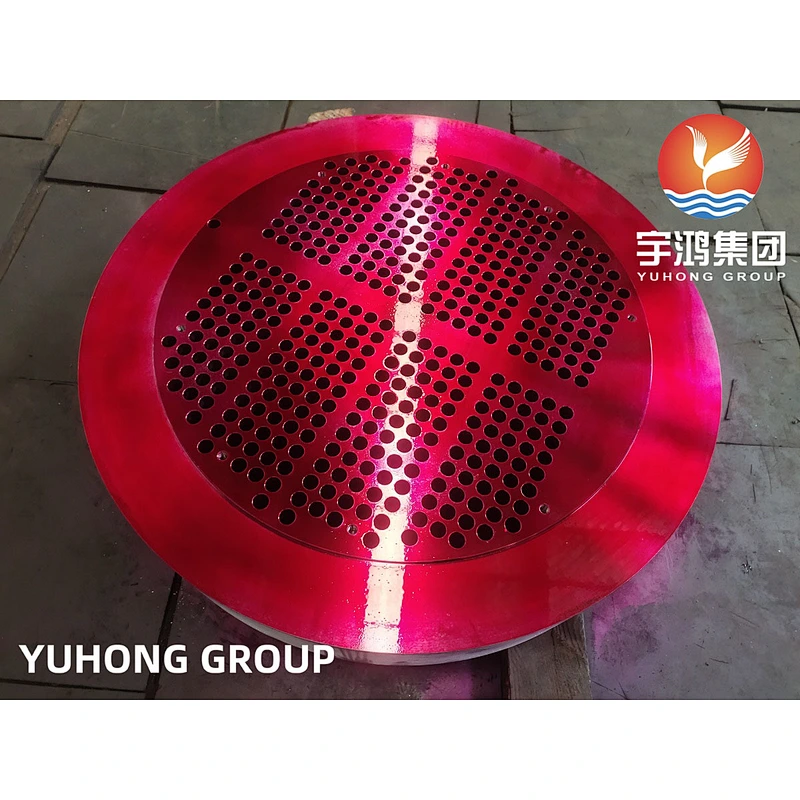

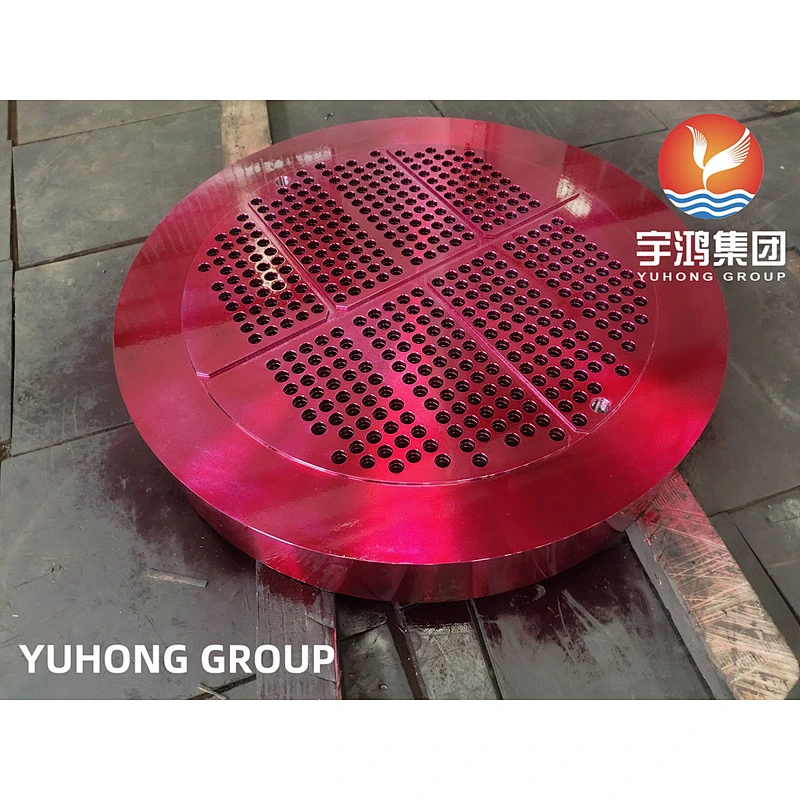

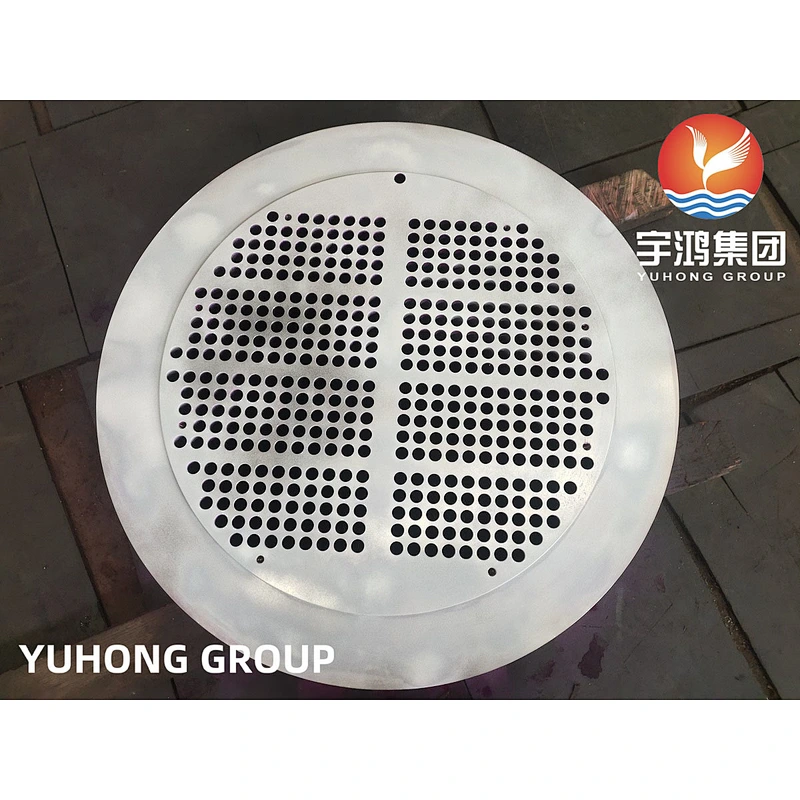

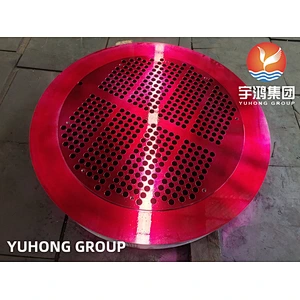

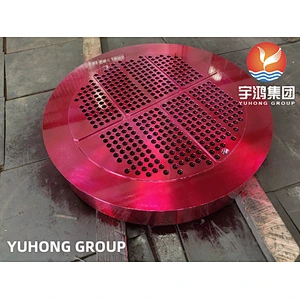

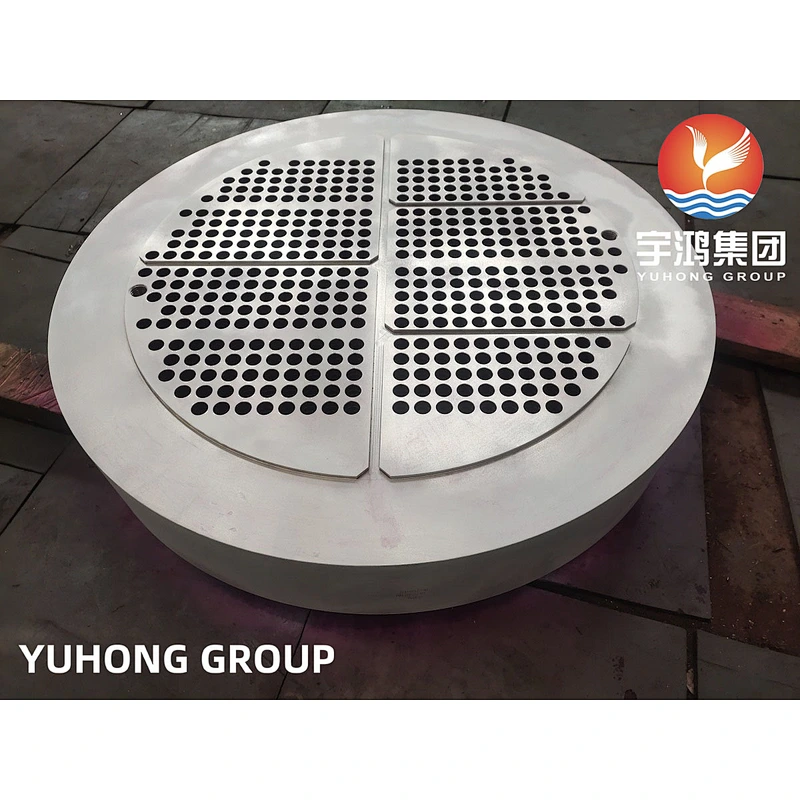

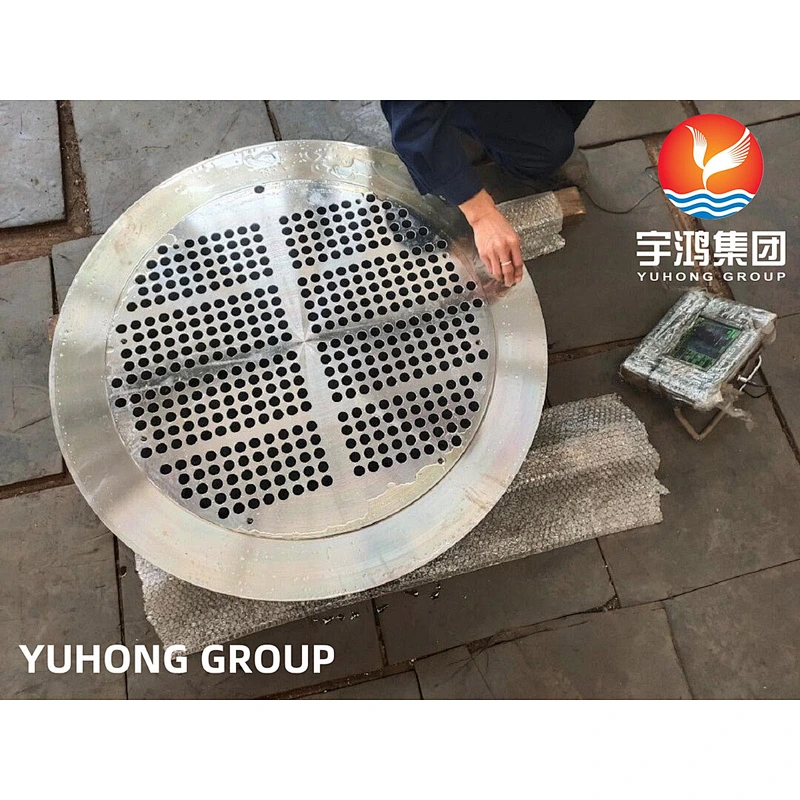

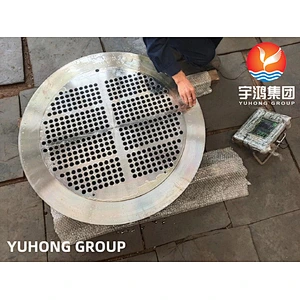

A tubesheet is usually made from a round flat piece of plate, sheet with holes drilled to accept the tubes or pipes in a accurate location and pattern relative to one another.The tube sheets are used to support and isolate tubes in heat exchangers and boilers or to support filter elements. Tubes are attached to the tube sheet by hydraulic pressure or by roller expansion.
Size:1/2″-160″,DN15-DN4000mm.
Standard: ANSI/ASME B16.5, ANSI/ASME B16.47, BS4504, BS3293, EN 1092, DIN2631,DIN2632,DIN2633, DIN 2634, DIN2635, DIN2636, DIN2637, DIN2638, JIS B2220, SABS / SANS 1123 , GOST / ГОСТ 12821-80 Flange, MSS SP-44 FLANGE, API 6A, 6B, 6BX weld neck FLANGE, ISO 7005 Weld neck flange. NFE 29203 Weld neck flange, KS B1503 , UNI 2280-67 ,UNI 2281-67 ,UNI 2282-67 ,UNI 2283-67 , UNI 2284-67, HG20595, AS2129.
Face America Series: Flat face(FF),Raised face(RF),Tongue(T),Groove(G),Female(F),Male(M),Ring type joints face(RJ/RTJ)
Europe Series: Type A(Flat Face),Type B(Raised Face),Type C(Tongue),Type D(Groove),Type E(Spigot),Type F(Recess),Type G(O-Ring Spigot),Type H(O-Ring Groove)
Pressure America Series: Class 150 ,Class 300, Class 600, Class 900A ,Class 1500,Class 2500.
Europe Series:PN2.5,PN6,PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN320,PN400.
Material: Carbon steel: ASTM A105, A181, ASTM A516 GR.60, GR.70, ASTM A694 F42, F46, F52, F56, F60, F65, F70, ST37, ST45.8, C22.8, S235, S235JRG2, P235GH, P245GH, P250GH, P265GH, P355GH, S355J2, 16MN, 20MN, Q235, 20#, CT20, SS400. Stainless steel: ASTM A182 F304, F304L, F316, F316L, F321, F321H, F304H, F316H, F347H, 1.4301, 1.4306, 1.4401, 1.4404, 1.4541, 1.4571, SUS304, SUS316. Alloy Steel: ASTM A350 LF2, CL1/CL2, ASTM A182 F5, F9, F11, F12, F22, F91. |
Duplex Steel: S31803 / F51 / S32205 / F60 / 1.4462 Super Duplex: S32750 / F53 / 1.4410 / S32760 / F55 / 1.4501 |
Applications
Tube plate is widely used in tubular heat exchangers, boilers, pressure vessels, steam turbines, large central air conditioners, condensers, evaporators and other products. The metal material makes it not only rigid, but also has great heat conduction performance. The precision of tube plate processing, especially the tolerance of hole spacing and diameter, perpendicularity, and finish greatly affect the assembly and performance of the equipment listed above.
