Overview
SUS304 (JIS Standard) is one of the most widely used versions of stainless steel, it is made up of 18% Cr (Chromium) and 8% Ni (Nickel). In high and low temperatures it can keep its heat and strength resistance, while also having great weldability, mechanical properties, cold workability and corrosion resistance at room temperature.

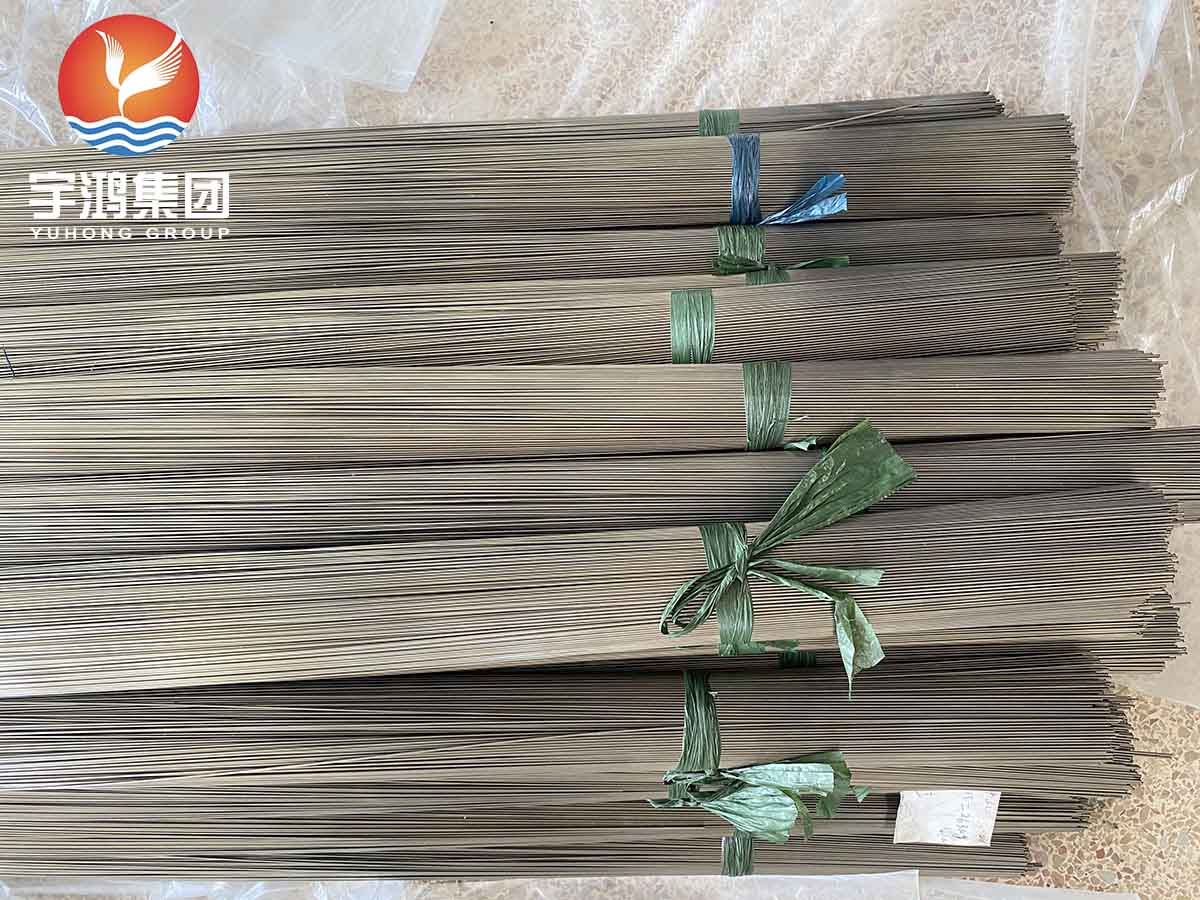

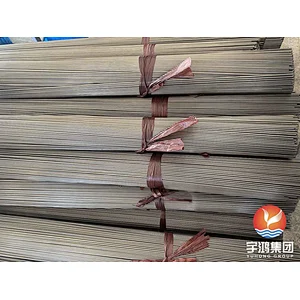

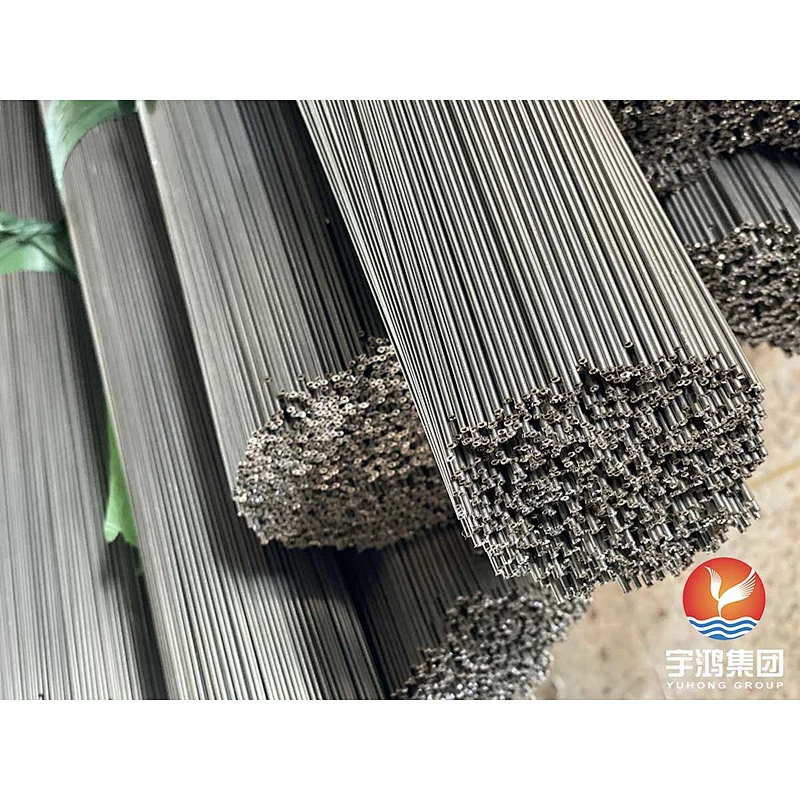

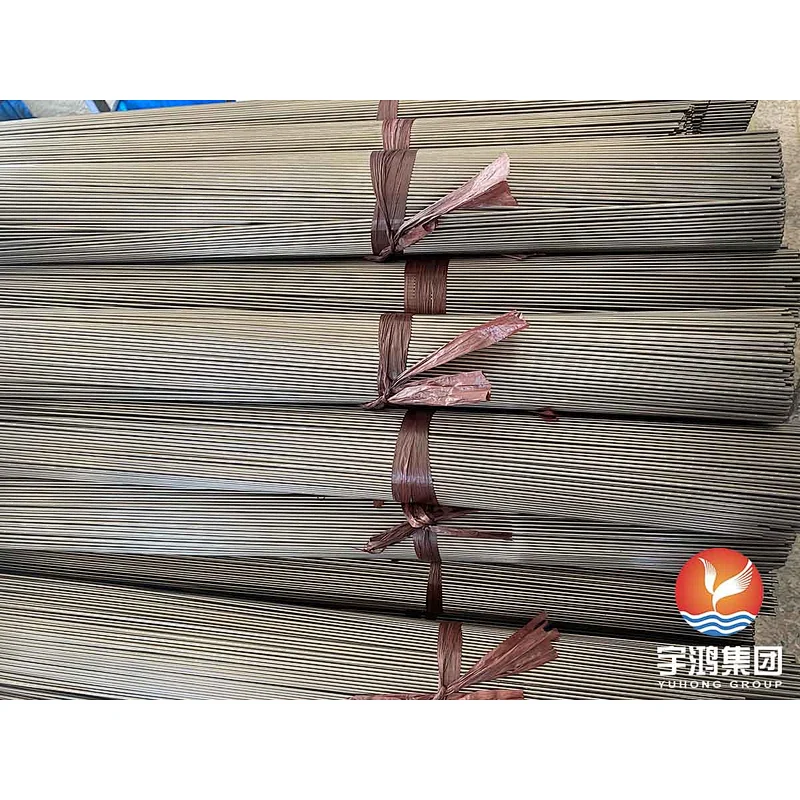

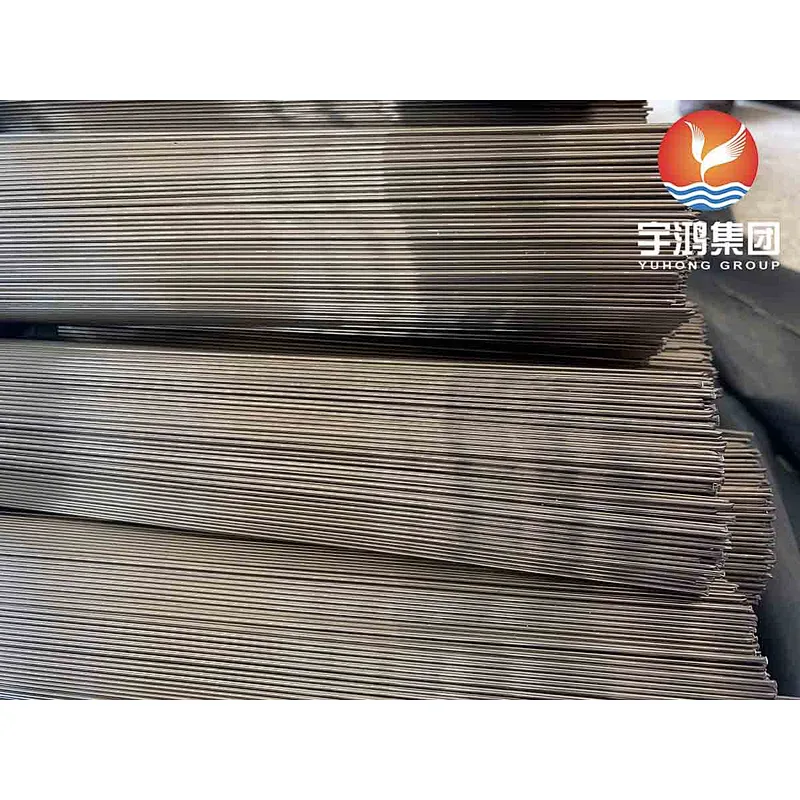

Steel capillary tube, called metal capillary tube, is the steel pipe with small diameter which is made by stainless steel and other alloys. The stainless capillary tube is often made with SS 316 or SS 304, which has been widely applied in industry, science, medical, space development, etc. And the reason why SUS 304 stainless steel has excellent corrosion resistance in the atmosphere is due to the formation of a chromium passivation film on its surface. But when SUS 304 is in a warm chloride environment, the corrosion is even faster than non-alloyed mild steel.
Specification
Equivalent Grade
| Japan | USA | European Union | ISO | China | |||||
| Standard | Grade | Standard | Grade (UNS) | Standard | Steel Name (Steel Number) | Standard | Grade | Standard | Grade |
| JIS G4304 | SUS304 | A240/A240M; A276/A276M | AISI 304 (S30400) | EN10088-3 EN10088-1 | X5CrNi18-10 (1.4301) | ISO 15510 | X5CrNi18-10 | GB/T 20878; GB/T 1220; GB/T 3280 | 06Cr19Ni10; 0Cr18Ni9 (Old designation) |
Chemical Composition
| Standard | Steel Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Cr | Ni |
| JIS G4303 | SUS304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | 18.00-20.00 | 8.00-10.50 |
Mechanical Properties
| Standard | Steel Grade | Diameter (d) in mm | Yield strength (N/mm2) | Tensile strength (N/mm2) | Elongation (%) | Hardness (HB) | Hardness (HV) |
| JIS G4303 | SUS304 | d≤180 | ≥ 205 | ≥ 520 | 40 | ≤ 187 | ≤ 200 |
Physical Properties
| Density (g/cm3) | 7.93 |
| Melting point (℃) | 1,400-1,450 |
| Specific heat (J/kg·℃) | 460-502 |
| Electrical resistivity (μΩ·m) (20℃) | 0.73 |
| Thermal expansion (10-6/K) | 16.3 (20-100℃) |
| 17.8 (20-300℃) | |
| 18.4 (20-500℃) | |
| Thermal conductivity (W/m·K) | 16.8 (100℃) |
Applications
SUS304 stainless steel is widely used in
1. Medical fields (such as surgical instruments, test instruments)
2. Food fields (such as kitchen utensils and tableware)
3. Architectural decoration
4. Artwork (such as metal curtains, punching nets, metal facades)
5. Electronic products (such as cell phones and Laptop case, kettle)
6. Daily necessities (such as scissors, water cups, etc.)
