Overview
The ASTM B564 UNS N06600 alloy is used in a variety of corrosion resisting applications. The high nickel content of Alloy 600 provides a level of resistance to reducing environments, while the chromium content of the material provides resistance to weaker oxidizing environments, the material provides exceptional resistance to chloride-ion stress-corrosion cracking.

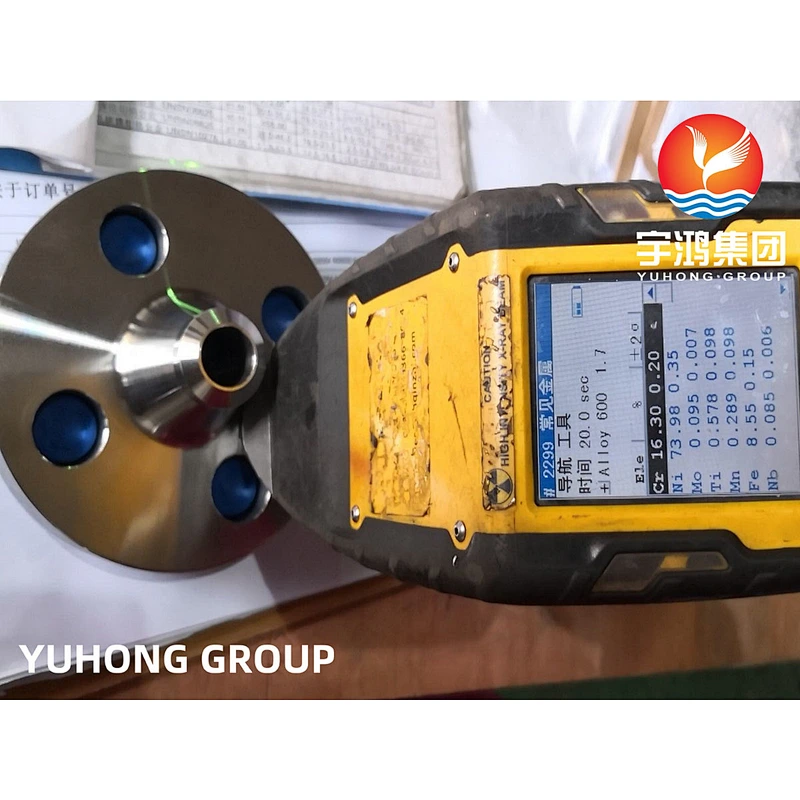

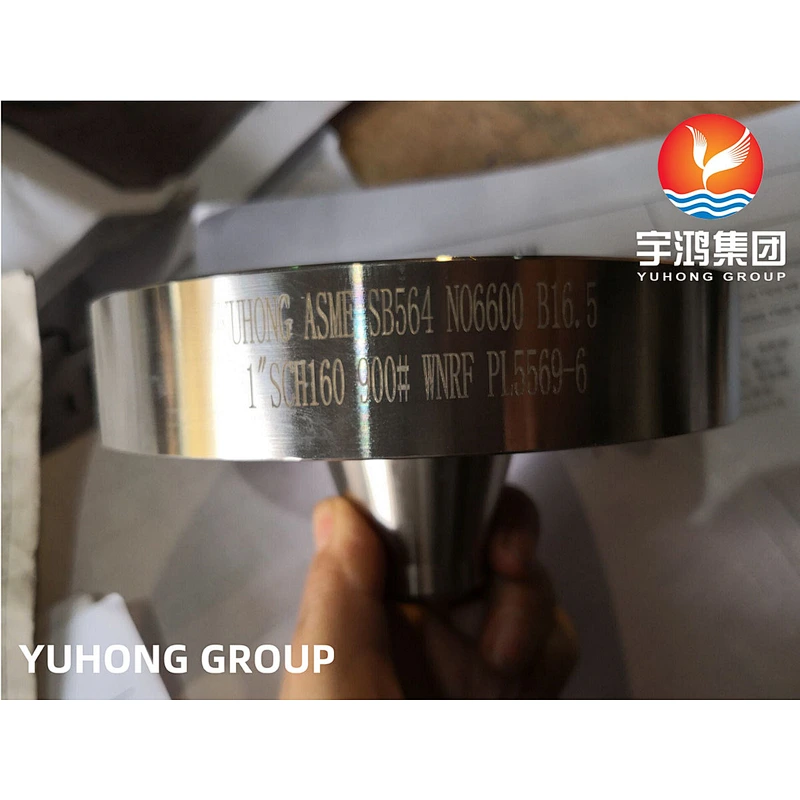

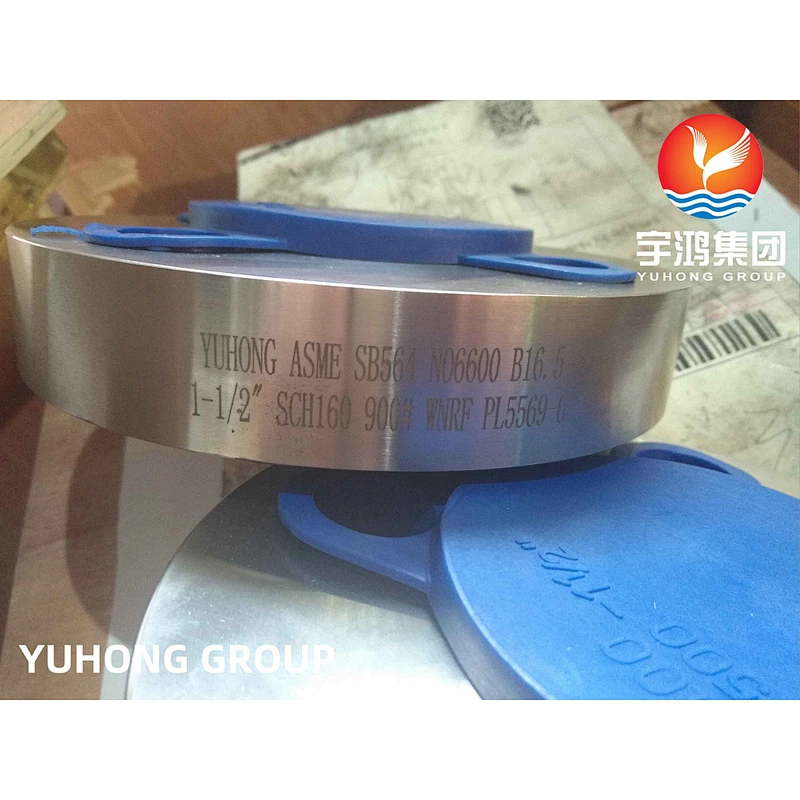

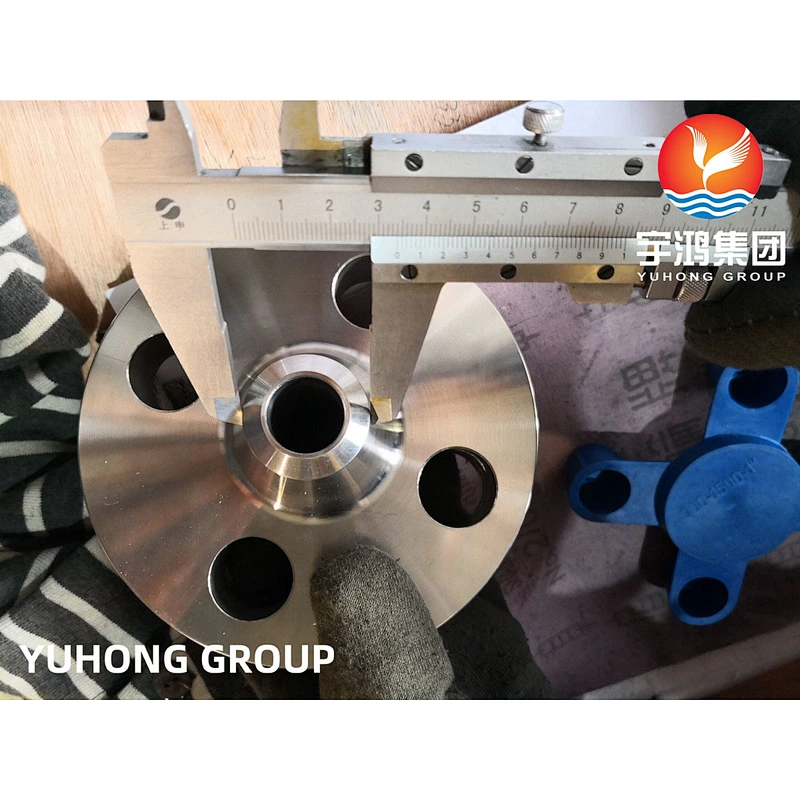

Welding Neck Flanges are easy to recognize at the long tapered hub, that goes gradually over to the wall thickness from a pipe or fitting. The long tapered hub provides an important reinforcement for use in several applications involving high pressure, sub-zero and / or elevated temperatures. The smooth transition from flange thickness to pipe or fitting wall thickness effected by the taper is extremely beneficial, under conditions of repeated bending, caused by line expansion or other variable forces.
These flanges are bored to match the inside diameter of the mating pipe or fitting so there will be no restriction of product flow. This prevents turbulence at the joint and reduces erosion. They also provide excellent stress distribution through the tapered hub and are easily radiographed for flaw detection.
Specification
ASTM B564-19 Standard Specification for Nickel Alloy Forgings.
| B564 N06600 Flange Size Chart | 1/2"(15 NB) to 48"(1200NB) DN10~DN5000 |
|---|---|
| B564 UNS N06600 SORF Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| B564 gr. N06600 Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| ASTM B564 UNS N06600 Flange Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| ASTM B564 N06600 Flange JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| ASTM B564 N06600 Flange UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| SB564 N06600 FlangeEN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ASTM B564 UNS N06600 Flange Production Technique | Forged, Heat treated and machined |
| B564 UNS N06600 Flange Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
Chemical Composition
| Alloy | % | Ni | Cr | Fe | C | Mn | Si | Cu | P | S |
|---|---|---|---|---|---|---|---|---|---|---|
600 | Min. | 72 | 14 | 6 | - | - | - | - | - | - |
| Max. | - | 17 | 10 | 0.15 | 1 | 0.5 | 0.5 | 0.015 | 0.015 |
Mechanical Properties
| Aolly status | Tensile strength Rm N/mm² | Yield strength R P 0. 2N/mm² | Elongation A 5 % | Brinell hardness HB |
|---|---|---|---|---|
| Annealing treatment | 550 | 240 | 30 | ≤195 |
| Solution treatment | 500 | 180 | 35 | ≤185 |
Applications
- 1. Food processing equipment
- 2. Chemical shipping containers
- 3. Electrical and electronic parts
- 4. Equipment for processing caustic alkali
- 5. Equipment that is resistant to seawater corrosion, and heat exchangers
- 6. Chemical, petroleum, non-ferrous metal smelting, high temperature, high pressure, high concentration or mixed with impurities.
