Overview
INCONEL (nickel-chromium-iron) alloy 600 (UNS N06600/W.Nr. 2.4816) is a standard engineering material for applications which require resistance to corrosion and heat. The alloy also has excellent mechanical properties and presents the desirable combination of high strength and good workability.

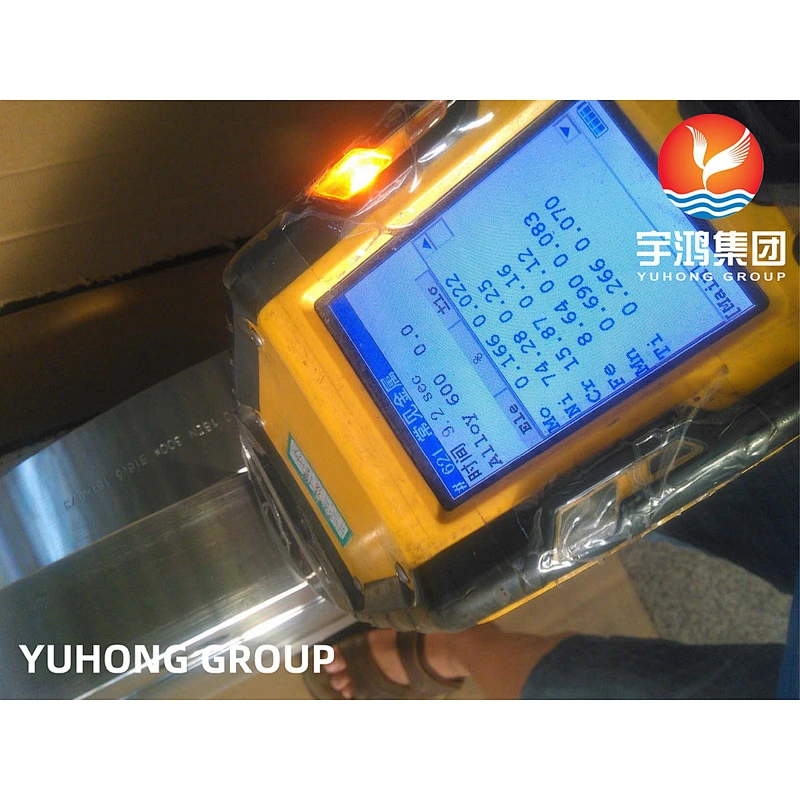

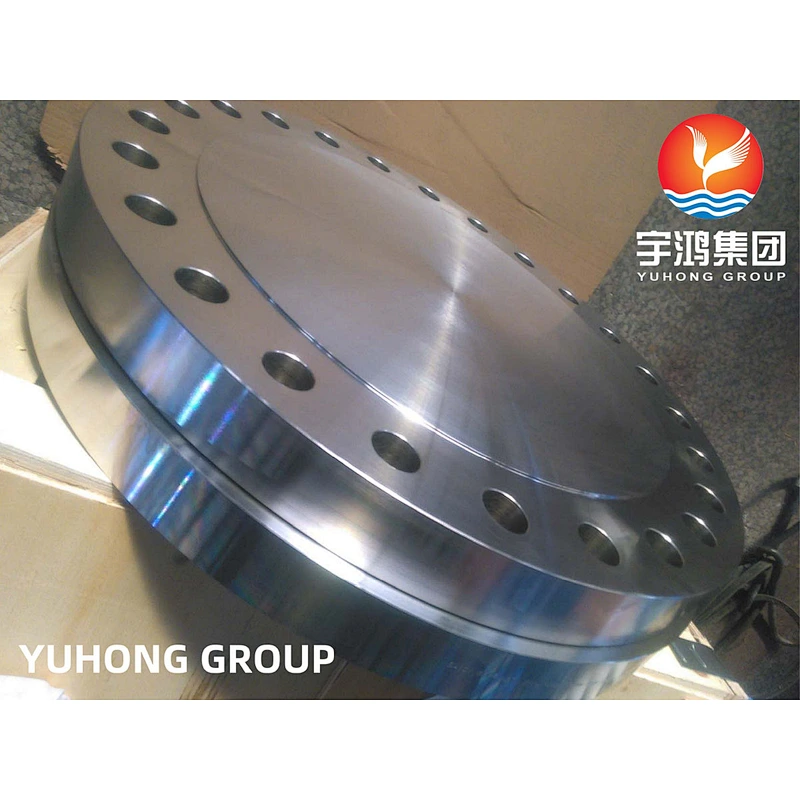

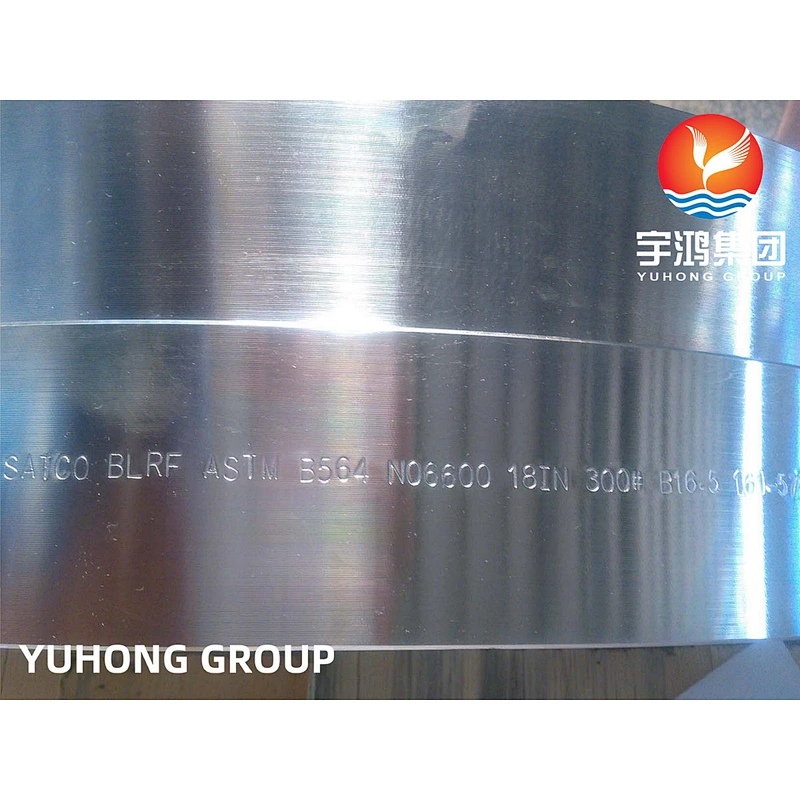

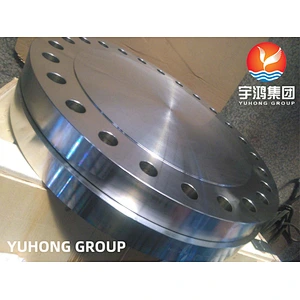

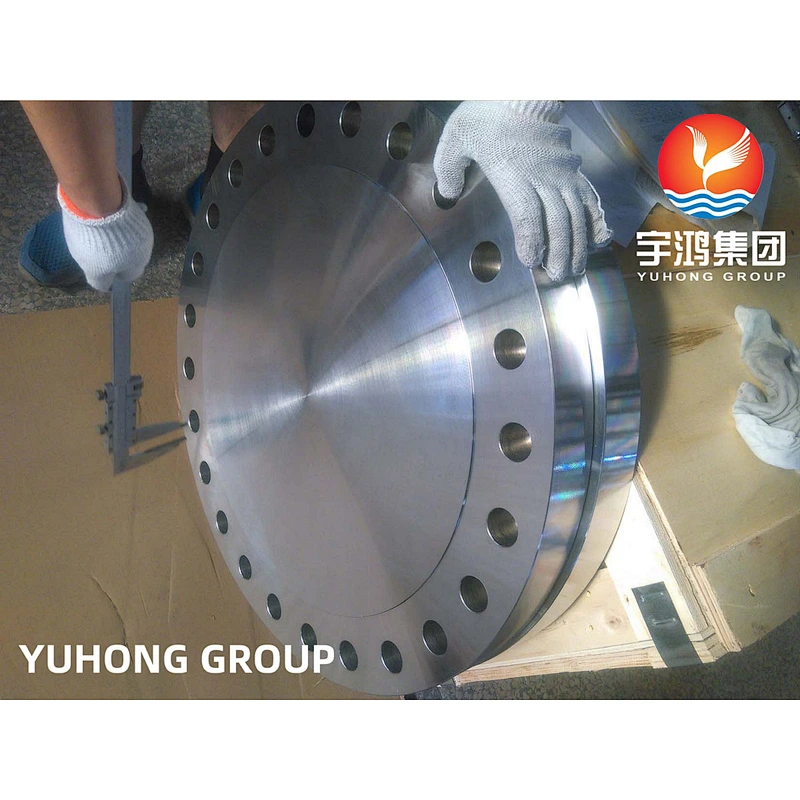

Blind Flanges are manufactured without a bore and used to blank off the ends of piping, Valves and pressure vessel openings. From the standpoint of internal pressure and bolt loading, blind flanges, particularly in the larger sizes, are the most highly stressed flange types. However, most of these stresses are bending types near the center, and since there is no standard inside diameter, these flanges are suitable for higher pressure temperature applications.
Specification
ASTM B564-19 Standard Specification for Nickel Alloy Forgings
| B564 N06600 Flange Size Chart | 1/2"(15 NB) to 48"(1200NB) DN10~DN5000 |
|---|---|
| B564 UNS N06600 SORF Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| B564 gr. N06600 Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| ASTM B564 UNS N06600 Flange Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| ASTM B564 N06600 Flange JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| ASTM B564 N06600 Flange UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| SB564 N06600 FlangeEN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ASTM B564 UNS N06600 Flange Production Technique | Forged, Heat treated and machined |
| B564 UNS N06600 Flange Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
Chemical Composition
| Alloy | % | Ni | Cr | Fe | C | Mn | Si | Cu | P | S |
|---|---|---|---|---|---|---|---|---|---|---|
600 | Min. | 72 | 14 | 6 | - | - | - | - | - | - |
| Max. | - | 17 | 10 | 0.15 | 1 | 0.5 | 0.5 | 0.015 | 0.015 |
Mechanical Properties
| Aolly status | Tensile strength Rm N/mm² | Yield strength R P 0. 2N/mm² | Elongation A 5 % | Brinell hardness HB |
|---|---|---|---|---|
| Annealing treatment | 550 | 240 | 30 | ≤195 |
| Solution treatment | 500 | 180 | 35 | ≤185 |
Applications
- 1. Aircraft ducting systems
- 2. Aerospace
- 3. Jet engine exhaust systems
- 4. Engine thrust-reverser systems
- 5. Specialized seawater equipment
- 6. Chemical process equipment
- 7. Chemical Processing
- 8. Heat treating industry
- 9. Power generation
- 10. Heat treating muffles and retorts
- 11. Radiant tubes
- 12. Catalyst support grids in nitric acid production
- 13. Steam superheater tube supports
- 14. Pulp and paper industry
- 15. Food processing
- 16. Nuclear Engineering
- 17. Gas turbine components
