Overview
ASTM A694 F52 Flanges is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed. Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal.
ASTM A694 F52 Flanges (Standard Specification for Carbon and Alloy Steel Forgings for Pipe Flanges, Fittings, Valves, and Parts for High-Pressure Transmission Service)
ASTM A694 F52 Standard Specification for Carbon and Alloy Steel Forgings for Pipe Flanges, Fittings, Valves, and Parts for High-Pressure Transmission Service. Several grades of material, based on minimum yield strength requirements, are covered Materials adhere to testing and tensile property requirements as well.
ASTM A694 F52 Flanges are having min Yield of 360 Mpa and Tensile Strength of min 455 Mpa.
ASTM A694 F52 Flanges is readily available for applications in the Industrial and Transportation fields.
Related product
ASTM A694 F52 Flanges,A694 F52 fitting manufacturers ,A694 F52 SORF Flange ,Carbon Steel Pipe Fittings ,ASTM A694 F52 Weld Neck Flanges ,CS Forged Flanges ,F52 Carbon Steel Spectacle Blind Flanges ,Carbon Steel A694 Buttweld Fittings
Specification
A694/A694M-08 is Standard Specification for Carbon and Alloy Steel Forgings for Pipe Flanges, Fittings, Valves, and Parts for High-Pressure Transmission Service
ASTM A694 F52 Flanges Specification | ASTM A694 / ASME SA694 |
ASTM A694 F52 fitting manufacturing Process | Hot Forging / Rolling / Machining |
ASTM A694 F52 Flanges Other Grades | ASTM A694 F42 / ASTM A694 F46 / ASTM A694 F52 / ASTM A694 F56 / ASTM A694 F60 / ASTM A694 F65 / ASTM A694 F70 / ASME SA694 F42 / ASME SA694 F46 / ASME SA694 F52 / ASME SA694 F56 / ASME SA694 F60 / ASME SA694 F65 / ASME SA694 F70 |
ASTM A694 F52 Flange Outer Diameter | 1/2"NB TO 64"NB |
ASTM A694 F52 Flanges Pressure Class | Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500# or As Per Custom Requirement |
ASTM A694 F52 Flanges Schedule | Sch 10s TO Sch XXS or As Per Custom Requirement |
ASTM A694 F52 Flanges Facing | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
ASTM A694 F52 Flanges Dimension | ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc.. |
ASTM A694 F52 Flanges Types | Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flange, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom Flange as per Drawing etc. |
ASTM A694 F52 Flanges Other Testing | NACE MR0175, Ultrasounic Test, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service, A for annealed, N for normalized, NT for Normalized and Tempered, or QT for Quenched and Tempered, Carbon Equivalent etc. |
ASTM A694 F52 Flanges Value Added Services | Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |

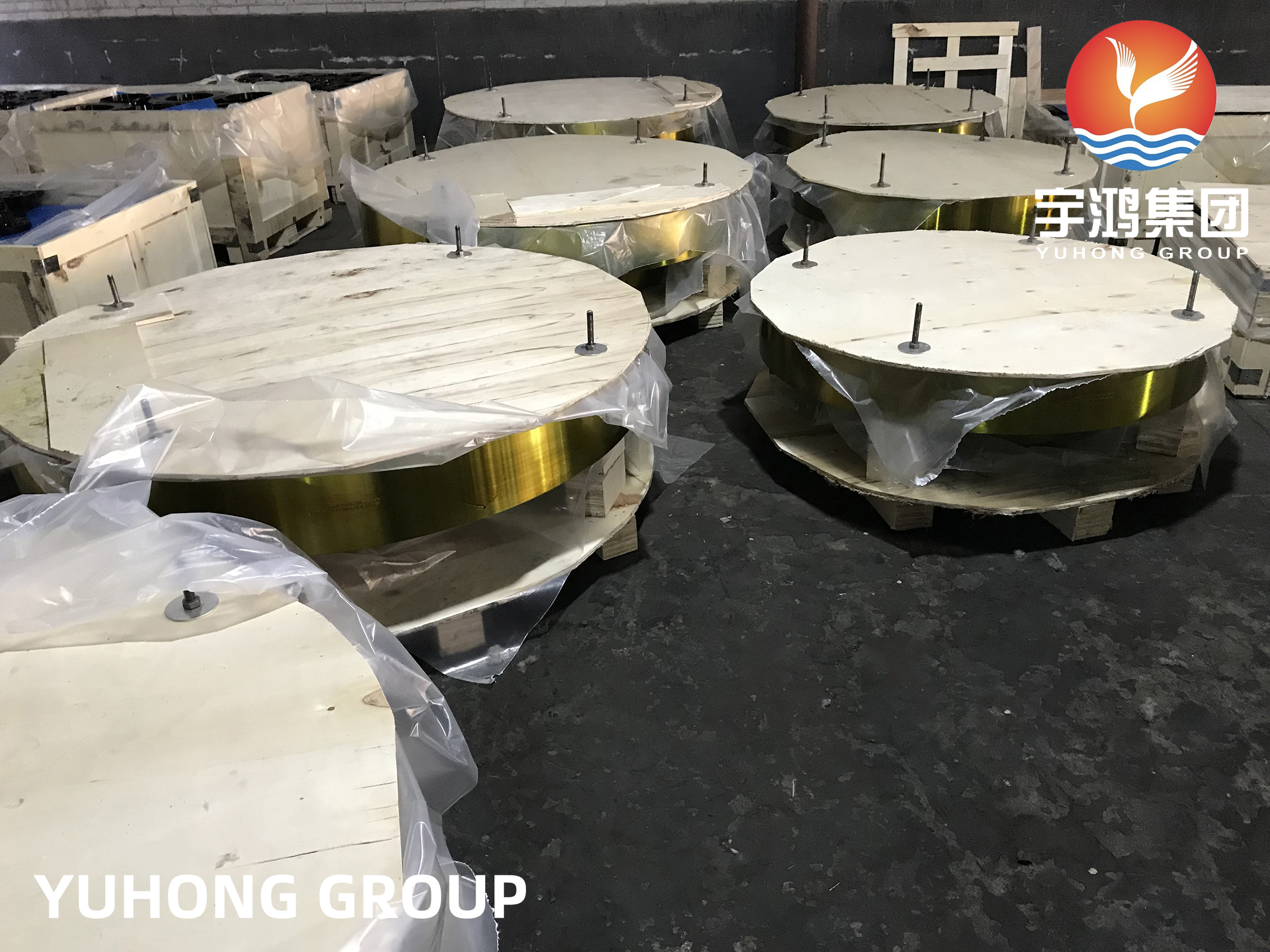

ASTM A694 F52 Flanges Packaging | Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
ASTM A694 F52 Flanges Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
ASTM A694 F52 Flanges Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved etc. |
Carbon Steel Pipe Fittings Chemical Composition
| ASTM A694, Heat Analysis, % | |
|---|---|
| Carbon [C] | ≤0.30 |
| Manganese [Mn] | ≤1.60 |
| Phosphorus [P] | ≤0.025 |
| Sulfur [S] | ≤0.025 |
| Silicon [Si] | 0.15-0.35 |
Carbon Steel Pipe Fittings Mechanical Properties
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| ASTM A694 F52 | 415 | 315 | 20 % |
Applications
- 1. Petrochemical Industry
- 2. Chemical Industry
- 3. Nuclear Power Plant Industry
- 4. Oil and Gas Industry
- 5. Research & Development
- 6. Mega Projects & Defense & Development Industries
- 7. Pulp & Paper Industry
