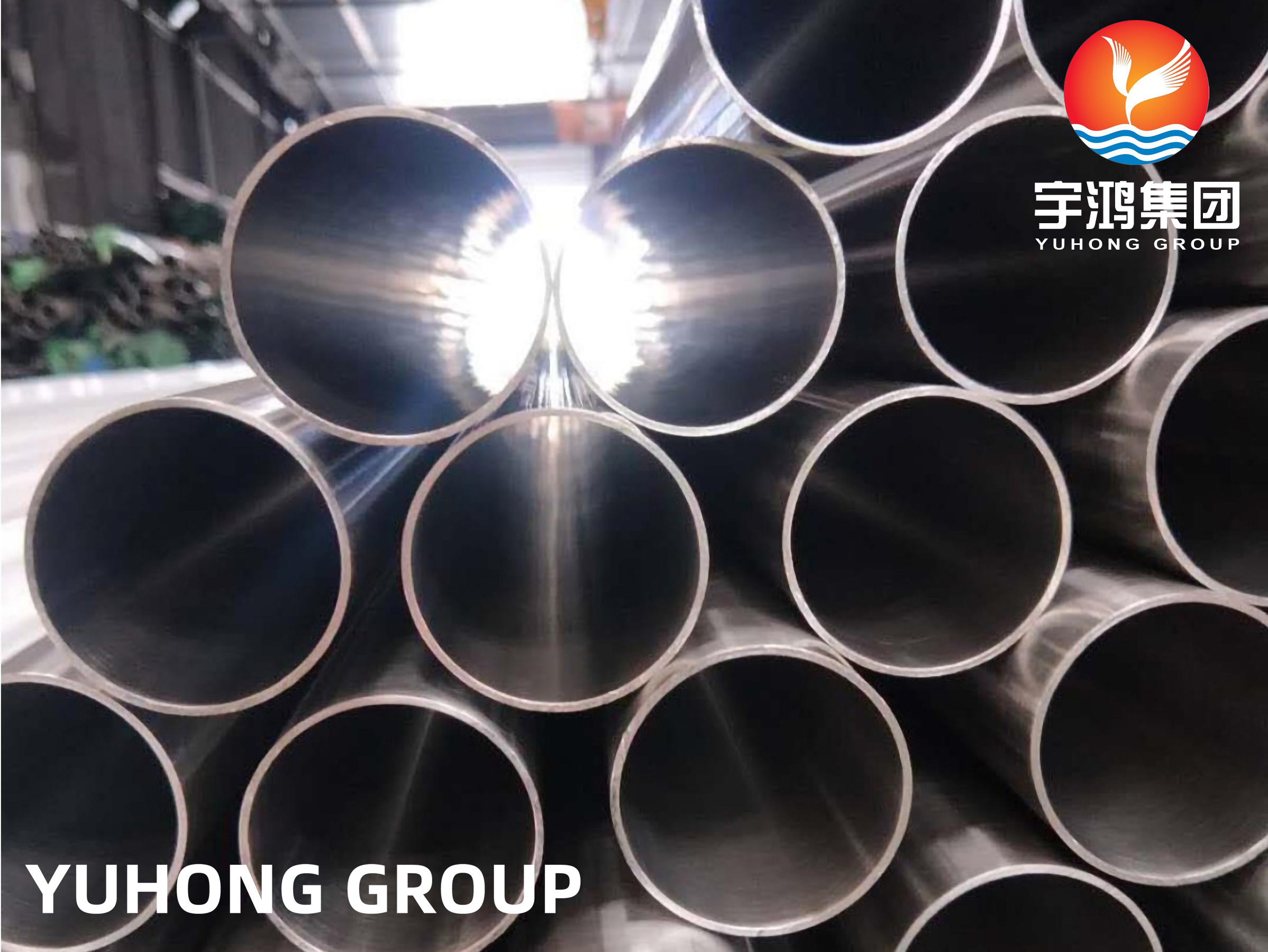

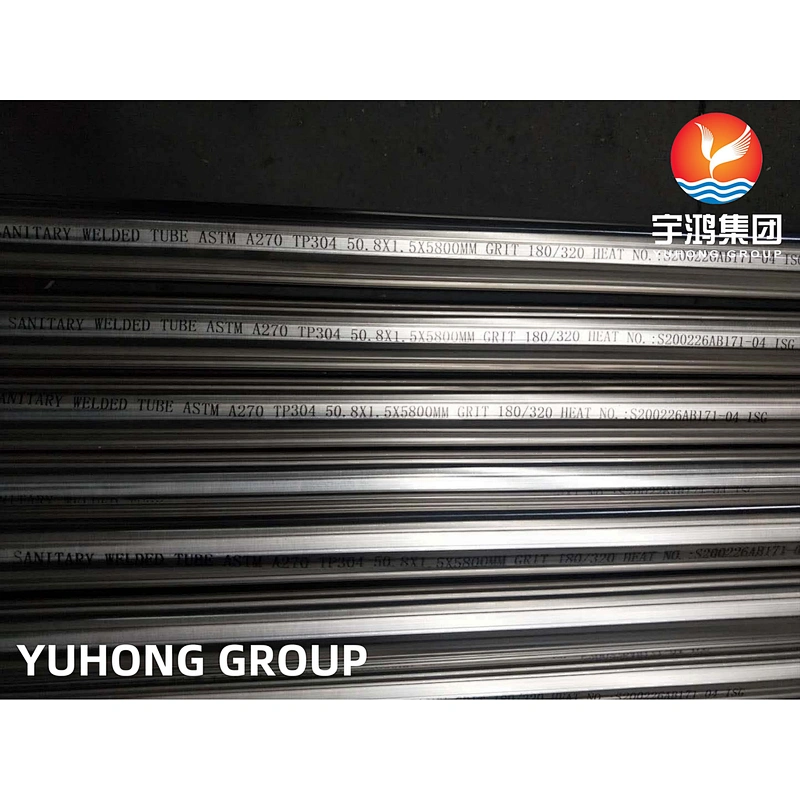

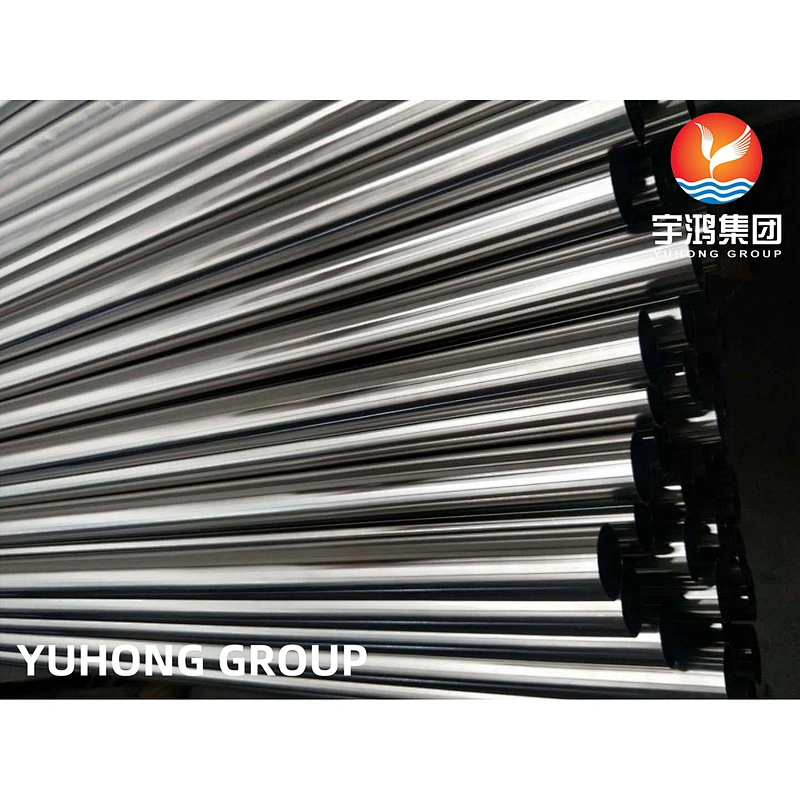

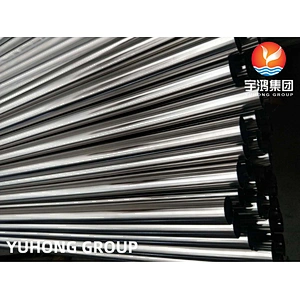

ASTM A270 TP304 tube in sizes up to and including 12 in. [300 mm] in outside diameter. A270 TP304 sanitary stainless pipe usually refers to the small pipe diameters, normally from 1/2"to 2 1/2", thickness from 0.049 in (1.24mm) to 0.15 in (3.81mm). The maximum O.D. of A270 TP304 tubing is 12 inch (i.e. 304.8 mm).
ASTM A270 Standard Specification for Seamless and Welded Austenitic Stainless Steel Sanitary Tubing. Covers grades of seamless, welded, and heavily cold worked austenitic and ferritic/austenitic duplex stainless steel sanitary tubing. Seamless tubes shall be manufactured by a process that does not involve welding at any stage. Welded tubes shall be made using an automated welding process with no addition of filler metal during the welding process. Heavily cold worked tubes shall be made by applying cold working of not less than 35% reduction of thickness of both wall and weld to a welded tube prior to the final anneal. No filler shall be used in making the weld.
Specification
A270/A270M-15 Standard Specification for Seamless and Welded Austenitic and Ferritic/Austenitic Stainless Steel Sanitary Tubing
ASTM A270 TP304 Sanitary Tubing Type | Seamless and Welded Austenitic and Ferritic/Austenitic Stainless Steel Sanitary Tubing |
ASTM A270 TP304 Sanitary Tubing OD. | 1/2” |
ASTM A270 TP304 Sanitary Tubing Wall | 16 Gauge (0.065”) |
ASTM A270 TP304 Sanitary Tubing Length | 20′ |
ASTM A270 TP304 Sanitary Tubing OD Tolerance | +/-0.005” / +/-0.13MM |
ASTM A270 TP304 Sanitary Tubing WT Tolerance | +/-10% |
ASTM A270 TP304 Sanitary Tubing Length Tolerance | +1/8” / +3.18MM |
ASTM A270 TP304 Sanitary Tubing Material | SS 304, SS 304L,SS 316,SS 316L |
ASTM A270 TP304 Sanitary Tubing Standard | 3A / ASTM A270 / A270M |
ASTM A270 TP304 Sanitary Tubing Finish | 2B MIll Finish , No.4 finish, BA Finish, 400 Grit Finish, 550 Grit Finish, 600 Grit Finish |
ASTM A270 TP304 Sanitary Tubing Polish | Mechanical Polished |
ASTM A270 TP304 Sanitary Tubing Type | Seamless |
ASTM A270 TP304 Sanitary Tubing Certification | 3A – Food / Dairy Grade |
ASTM A270 TP304 Sanitary Tubing Mill Test Certificate | EN10204 3.1 |
ASTM A270 TP304 Product | ASTM A270 304 Sanitary Tubing, ASTM A270 SS304 Seamless Sanitary Tubes, ASTM A270 Type 304 Tubing, ASTM A270 TP304 Welded Sanitary Tubing, ASTM A270 304 Welded Sanitary Tubes, ASTM A270 TP304 Stainless Steel Sanitary Tubing |
ASTM A270 TP304 Sanitary Tubing Packing | Sleeved, Ends Capped, Wooden Boxe |
Chemical Composition
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
304 | min. | - | - | - | - | - | 18.0 | - | 8.0 | - |
max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||
304L | min. | - | - | - | - | - | 18.0 | - | 8.0 | - |
max. | 0.030 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 12.0 | 0.10 | ||
304H | min. | 0.04 | - | - | - | - | 18.0 | - | 8.0 | - |
max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | |||
Mechanical Properties
Grade | Tensile Strength | Yield Strength | Elongation | Hardness | |
Rockwell B | Brinell | ||||
304 | 515 | 205 | 40 | 92 | 201 |
304L | 485 | 170 | 40 | 92 | 201 |
304H | 515 | 205 | 40 | 92 | 201 |
