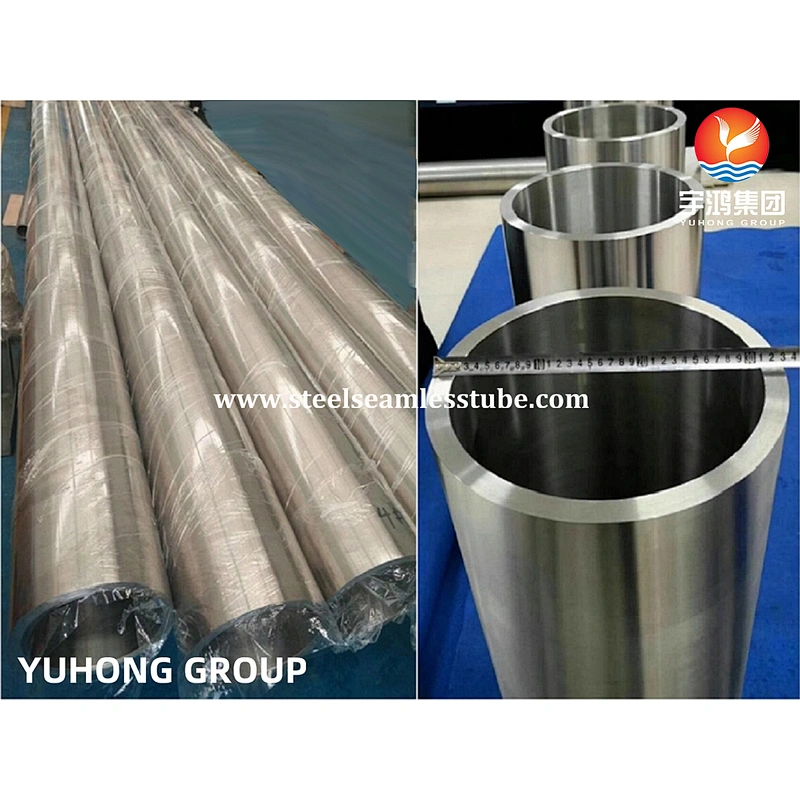

Overview

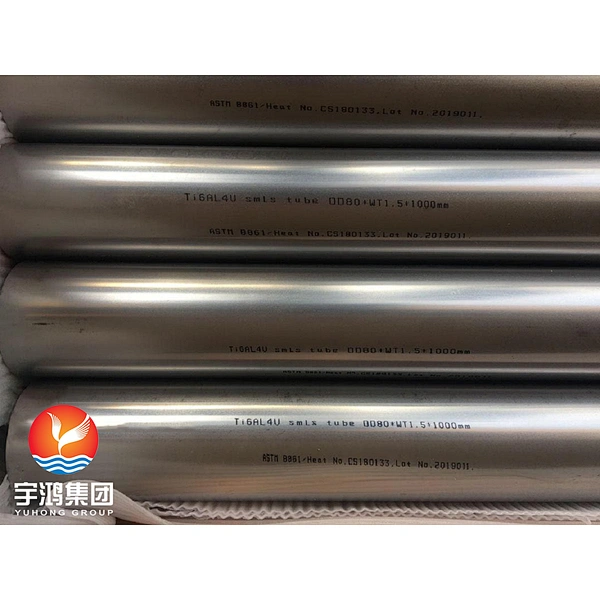

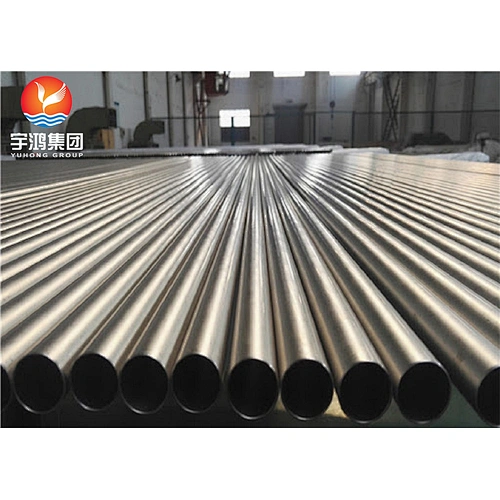

Titanium pipe and tube is increasingly being used in a myriad of applications due to the inefficiency of stainless steel and other materials in many instances. A common titanium mill product is titanium tubes, which are employed in a variety of products owing to its superior corrosion resistance and strength-to-weight ratio. The development of many different alloys has extended the application of titanium in industries ranging from industrial and chemical processing to power generation.
Grade2, UNS R50400, 3.7034, CP-3 titanium has an alpha crystal structure. This alloy is widely used because it combines excellent formability and medium strength with excellent corrosion resistance. It has good corrosion resistance in highly oxidizing and mildly reducing environments (including compounds). And easy to weld, hot and cold processing and machining. The combination of these characteristics makes it ideal for many applications, including seawater pipelines in aerospace, petrochemical, oil and gas and marine industries, reaction vessels and heat exchangers, ships, automotive parts, medical, and sports equipment.
Specification
STM B338-17e1 Standard Specification for Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers
| ASTM B338 Titanium Alloy Tubes Specification | ASTM B338 / ASTM B861 / ASTM B862 / ASME SB338 / ASME SB861 / ASME SB862 |
| ASTM B338 Titanium Alloy Tubes Grades | Grade 1 , Grade 2, Grade 3 , Grade 5 , Grade 7, Grade 8, Grade 9, Grade 11, Grade 12, Grade 23, UNS R50250, UNS R50400, UNS R56400, UNS R52400, UNS R56320, UNS R53400, Ti-6Al-4V, C-130AM, C-110M, Ti-4Al-3Mo-1V, Ti-6Al-2Sn-4Zr-2Mo, Ti-8Al-1Mo-1V, Ti-13V-11Cr-3Al, Ti-15V-3Cr-3Sn-3Al |
| ASTM B338 Titanium Alloy Tubes Type | Hot Rolled / Cold Drawn / Welded / ERW |
| ASTM B338 Titanium Alloy Tubes Outer Diameter Size | Seamless - 1/4"NB to 12"NB (Nominal Bore Size) Welded / ERW- 1"NB to 16"NB (Nominal Bore Size) |
| ASTM B338 Titanium Alloy Tubes Wall Thickness | Schedule 10 to Schedule 160 |
| ASTM B338 Titanium Alloy Tubes Length | 5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size. |
| ASTM B338 Titanium Alloy Tubes Pipe Ends | Plain Ends / Beveled Ends |
| ASTM B338 Titanium Alloy Tubes Delivery Conditions | As Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered |
| ASTM B338 Titanium Alloy Tubes Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| ASTM B338 Titanium Alloy Tubes Other Testing | ardness Test, Hydrostatic Test, Eddy Current test, Eddy Current, Tensile Test, Flattening, Flare Test, Annealed, Hydrostatic Test, Tempered, Stress Relieved etc. |
| ASTM B338 Titanium Alloy Tubes Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME |
| ASTM B338 Titanium Alloy Tubes Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| ASTM B338 Titanium Alloy Tubes Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| ASTM B338 Titanium Alloy Tubes Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| ASTM B338 Titanium Alloy Tubes Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
Chemical Composition
| Element | Chemical Composition % | ||||||||
| Grade 1 | Grade 2 | Grade 3 | Grade 5 | Grade 7 | Grade 9 | Grade 11 | Grade 12 | Grade 23 | |
| Nitrogen, max | 0.03 | 0.03 | 0.05 | 0.05 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
| Carbon, max | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 |
| Hydrogen, max | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.0125 |
| Iron, max | 0.20 | 0.30 | 0.30 | 0.40 | 0.30 | 0.25 | 0.20 | 0.30 | 0.25 |
| Oxygen, max | 0.18 | 0.25 | 0.35 | 0.20 | 0.25 | 0.15 | 0.18 | 0.25 | 0.13 |
| Aluminum | … | … | … | 5.5-6.75 | … | 2.5-3.5 | … | … | 5.5-6.5 |
| Vanadium | … | … | … | 3.5-4.5 | … | 2.0-3.0 | … | … | 3.5-4.5 |
| Tin | … | … | … | … | … | … | … | … | … |
| Ruthenium | … | … | … | … | … | … | … | … | … |
| Palladium | … | … | … | … | 0.12-0.25 | … | 0.12-0.25 | … | … |
| Molybdenum | … | … | … | … | … | … | … | 0.2-0.4 | … |
| Chromium | … | … | … | … | … | … | … | … | … |
| Nickel | … | … | … | … | … | … | … | 0.6-0.9 | … |
| Niobium | … | … | … | … | … | … | … | … | … |
| Ziconium | … | … | … | … | … | … | … | … | … |
| Silicon | … | … | … | … | … | … | … | … | … |
| Residuals, max each | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Residuals, max total | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Titanium | balance | balance | balance | balance | balance | balance | balance | balance | balance |
Mechanical Properties
ASTM B338 Tensile Strength of Titanium Tubes
Grade | Tensile Strength, min | Yield Strength (0.2% Offset) | Elongation 2 in. or 50 mm | |||||
min | max | |||||||
Ksi | (Mpa) | Ksi | (Mpa) | Ksi | (Mpa) | gage length min % | ||
Grade 1 | 35 | (240) | 25 | (170) | 45 | (310) | 24 | |
Grade 2 | 50 | (345) | 40 | (275) | 65 | (450) | 20 | |
Grade 3 | 65 | (450) | 55 | (380) | 80 | (550) | 18 | |
Grade 5 | 130 | (895) | 120 | (828) | … | … | 10 | |
Grade 7 | 50 | (345) | 40 | (275) | 65 | (450) | 20 | |
Grade 9 | 90 | (620) | 70 | (483) | 45 | … | 15 | |
Grade 11 | 35 | (240) | 25 | (170) | … | (310) | 24 | |
Grade 12 | 70 | (483) | 50 | (345) | … | … | 18 | |
Grade 23 | 120 | (828) | 110 | (759) | … | … | 10 | |
Applications
- 1. Chlorination systems
- 2. Flue gas scrubbers
- 3. Outlet ducting and stack liners for power plants, pulp and paper bleach plants, sulfur dioxide scrubbers, and weld overlay of less corrosion resistant metals
- 4. Acid production and pickling systems
- 5. Pharmaceutical industries use alloy fittings and tubing to avoid contamination caused by corrosion related failures
- 6. Cellophane manufacturing
- 7. Chlorination systems
- 8. Pesticide production
- 9. Incineration scrubber systems
- 10. Chemical process industry in equipment like flue gas scrubbers, chlorination systems, sulfur dioxide scrubbers, pulp and paper bleach plants, pickling systems, and nuclear fuel reprocessing
- 11. Waste water processing
- 12. Pollution control stack liners, ducts, dampers, scrubbers, stack-gas reheaters, fans and fan housings
- 13. Flue gas desulfurization systems
- 14. Chemical processing components like heat exchangers, reaction vessels, evaporators, and transfer piping
- 15. Sour gas wells
- 16. Pulp and paper production
- 17. Waste treatment
- 18. Pharmaceutical and food processing equipment
