Overview
ASTM20 Titanium is an important structural metal developed in the 1950s, widely used in various fields because of its high strength, good corrosion resistance, and high heat resistance. A338 The first practical titanium alloy was Ti-6Al-4V, successfully developed in 1954. Due to its heat resistance, strength, plasticity, toughness, formability, weldability, corrosion resistance and biocompatibility, it has become the flagship alloy in the titanium alloy industry, accounting for 75% to 85% of all titanium alloy usage. Many other titanium alloys can be regarded as modifications of Ti-6Al-4V.

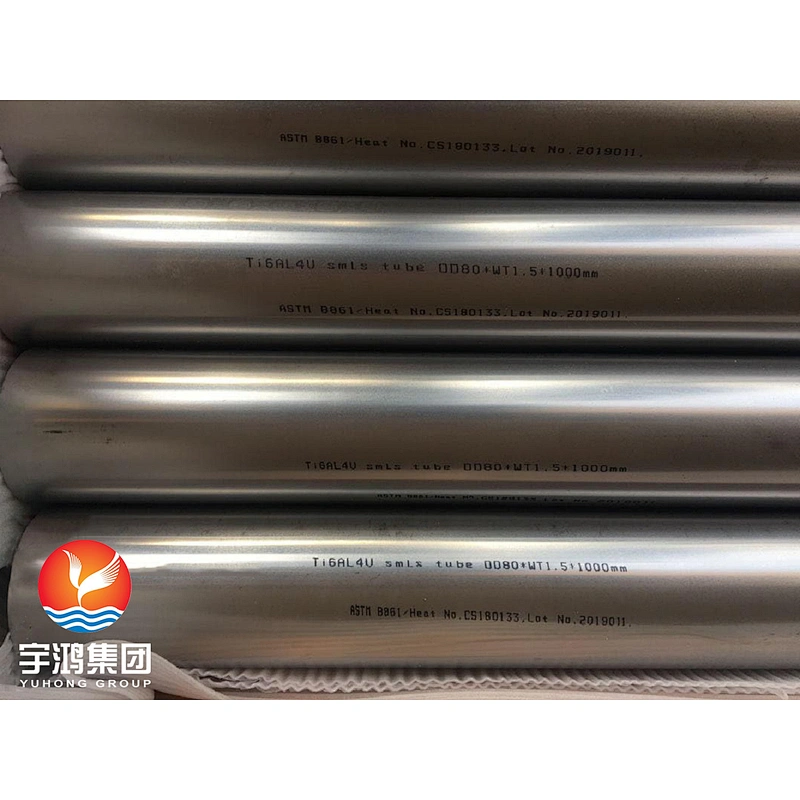

Titanium25 Grade 5, UNS R56400, 3.7164, Ti-6Al-4V is the most widely used α+β titanium alloy. Grade 53 It offers excellent specific strength, corrosion resistance and fracture toughness, along with good welding processability and the ability to withstand extreme temperatures, and can be strengthened by heat treatment. Originally developed for the aerospace market, it is widely used in aerospace structural components. Because of its very good biocompatibility, it has also been widely recognized in the medical industry. This titanium alloy is supplied as Alloy26 tube and pipe product forms for demanding industrial service. Tube17 Seamless tube and pipe are available for condensers, heat exchangers and other critical applications.
Specification
STM B338-17e1 Standard Specification for Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers.
ASTM B338 Titanium Alloy Tubes Specification ASTM B338 / ASTM B861 / ASTM B862 / ASME SB338 / ASME SB861 / ASME SB862
ASTM B338 Titanium Alloy Tubes Grades Grade 1, Grade 2, Grade 3, Grade 5, Grade 7, Grade 8, Grade 9, Grade 11, Grade 12, Grade 23, UNS R50250, UNS R50400, UNS R56400, UNS R52400, UNS R56320, UNS R53400, Ti-6Al-4V, C-130AM, C-110M, Ti-4Al-3Mo-1V, Ti-6Al-2Sn-4Zr-2Mo, Ti-8Al-1Mo-1V, Ti-13V-11Cr-3Al, Ti-15V-3Cr-3Sn-3Al
ASTM B338 Titanium Alloy Tubes Type Hot Rolled / Cold Drawn / Welded / ERW
ASTM B338 Titanium Alloy Tubes Outer Diameter Size Seamless - 1/4"NB to 12"NB (Nominal Bore Size); Welded / ERW - 1"NB to 16"NB (Nominal Bore Size)
ASTM B338 Titanium Alloy Tubes Wall Thickness Schedule 10 to Schedule 160
ASTM B338 Titanium Alloy Tubes Length 5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size
ASTM B338 Titanium Alloy Tubes Pipe Ends Plain Ends / Beveled Ends
ASTM B338 Titanium Alloy Tubes Delivery Conditions As Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered
ASTM B338 Titanium Alloy Tubes Coating Electropolish, Mechanical Polish, Satin Finish, Passivated
ASTM B338 Titanium Alloy Tubes Other Testing Hardness Test, Hydrostatic Test, Eddy Current Test, Tensile Test, Flattening, Flare Test, Annealed, Hydrostatic Test, Tempered, Stress Relieved etc.
ASTM B338 Titanium Alloy Tubes Dimension All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME
ASTM B338 Titanium Alloy Tubes Value Added Services Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment
ASTM B338 Titanium Alloy Tubes Packaging Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
ASTM B338 Titanium Alloy Tubes Shipment & Transportation By Road - Truck / Train; By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container; By Air - Freighter Civil Passenger and Cargo Planes
ASTM B338 Titanium Alloy Tubes Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC
Chemical Composition
| ASTM B338 Titanium Alloy Tubes Specification | ASTM B338 / ASTM B861 / ASTM B862 / ASME SB338 / ASME SB861 / ASME SB862 |
| ASTM B338 Titanium Alloy Tubes Grades | Grade 1 , Grade 2, Grade 3 , Grade 5 , Grade 7, Grade 8, Grade 9, Grade 11, Grade 12, Grade 23, UNS R50250, UNS R50400, UNS R56400, UNS R52400, UNS R56320, UNS R53400, Ti-6Al-4V, C-130AM, C-110M, Ti-4Al-3Mo-1V, Ti-6Al-2Sn-4Zr-2Mo, Ti-8Al-1Mo-1V, Ti-13V-11Cr-3Al, Ti-15V-3Cr-3Sn-3Al |
| ASTM B338 Titanium Alloy Tubes Type | Hot Rolled / Cold Drawn / Welded / ERW |
| ASTM B338 Titanium Alloy Tubes Outer Diameter Size | Seamless - 1/4"NB to 12"NB (Nominal Bore Size) Welded / ERW- 1"NB to 16"NB (Nominal Bore Size) |
| ASTM B338 Titanium Alloy Tubes Wall Thickness | Schedule 10 to Schedule 160 |
| ASTM B338 Titanium Alloy Tubes Length | 5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size. |
| ASTM B338 Titanium Alloy Tubes Pipe Ends | Plain Ends / Beveled Ends |
| ASTM B338 Titanium Alloy Tubes Delivery Conditions | As Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered |
| ASTM B338 Titanium Alloy Tubes Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| ASTM B338 Titanium Alloy Tubes Other Testing | ardness Test, Hydrostatic Test, Eddy Current test, Eddy Current, Tensile Test, Flattening, Flare Test, Annealed, Hydrostatic Test, Tempered, Stress Relieved etc. |
| ASTM B338 Titanium Alloy Tubes Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME |
| ASTM B338 Titanium Alloy Tubes Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| ASTM B338 Titanium Alloy Tubes Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| ASTM B338 Titanium Alloy Tubes Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| ASTM B338 Titanium Alloy Tubes Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
Chemical Composition
| Element | Chemical Composition % | ||||||||
| Grade 1 | Grade 2 | Grade 3 | Grade 5 | Grade 7 | Grade 9 | Grade 11 | Grade 12 | Grade 23 | |
| Nitrogen, max | 0.03 | 0.03 | 0.05 | 0.05 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
| Carbon, max | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 |
| Hydrogen, max | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.0125 |
| Iron, max | 0.20 | 0.30 | 0.30 | 0.40 | 0.30 | 0.25 | 0.20 | 0.30 | 0.25 |
| Oxygen, max | 0.18 | 0.25 | 0.35 | 0.20 | 0.25 | 0.15 | 0.18 | 0.25 | 0.13 |
| Aluminum | … | … | … | 5.5-6.75 | … | 2.5-3.5 | … | … | 5.5-6.5 |
| Vanadium | … | … | … | 3.5-4.5 | … | 2.0-3.0 | … | … | 3.5-4.5 |
| Tin | … | … | … | … | … | … | … | … | … |
| Ruthenium | … | … | … | … | … | … | … | … | … |
| Palladium | … | … | … | … | 0.12-0.25 | … | 0.12-0.25 | … | … |
| Molybdenum | … | … | … | … | … | … | … | 0.2-0.4 | … |
| Chromium | … | … | … | … | … | … | … | … | … |
| Nickel | … | … | … | … | … | … | … | 0.6-0.9 | … |
| Niobium | … | … | … | … | … | … | … | … | … |
| Ziconium | … | … | … | … | … | … | … | … | … |
| Silicon | … | … | … | … | … | … | … | … | … |
| Residuals, max each | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Residuals, max total | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Titanium | balance | balance | balance | balance | balance | balance | balance | balance | balance |
Mechanical Properties
ASTM B338 Tensile Strength of Titanium Tubes
Grade | Tensile Strength, min | Yield Strength (0.2% Offset) | Elongation 2 in. or 50 mm | |||||
min | max | |||||||
Ksi | (Mpa) | Ksi | (Mpa) | Ksi | (Mpa) | gage length min % | ||
Grade 1 | 35 | (240) | 25 | (170) | 45 | (310) | 24 | |
Grade 2 | 50 | (345) | 40 | (275) | 65 | (450) | 20 | |
Grade 3 | 65 | (450) | 55 | (380) | 80 | (550) | 18 | |
Grade 5 | 130 | (895) | 120 | (828) | … | … | 10 | |
Grade 7 | 50 | (345) | 40 | (275) | 65 | (450) | 20 | |
Grade 9 | 90 | (620) | 70 | (483) | 45 | … | 15 | |
Grade 11 | 35 | (240) | 25 | (170) | … | (310) | 24 | |
Grade 12 | 70 | (483) | 50 | (345) | … | … | 18 | |
Grade 23 | 120 | (828) | 110 | (759) | … | … | 10 | |
Applications
- 1. Aviation engine parts
- 2. Airframe parts
- 3. Marine equipment
- 4. Offshore oil and gas equipment
- 5. Power generation industry
- 6. Chemical industry
- 7. Automotive sports parts
- 8. Medical equipment
- 9. Surgical implants
- 10. Sports equipment
