Overview

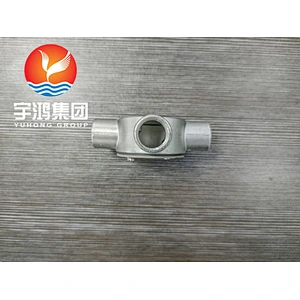

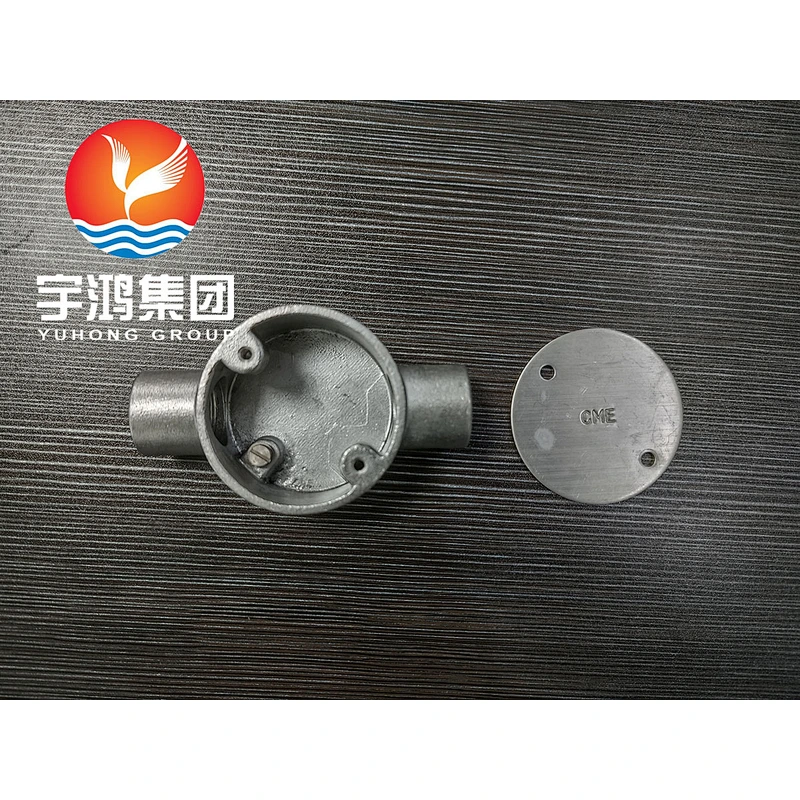

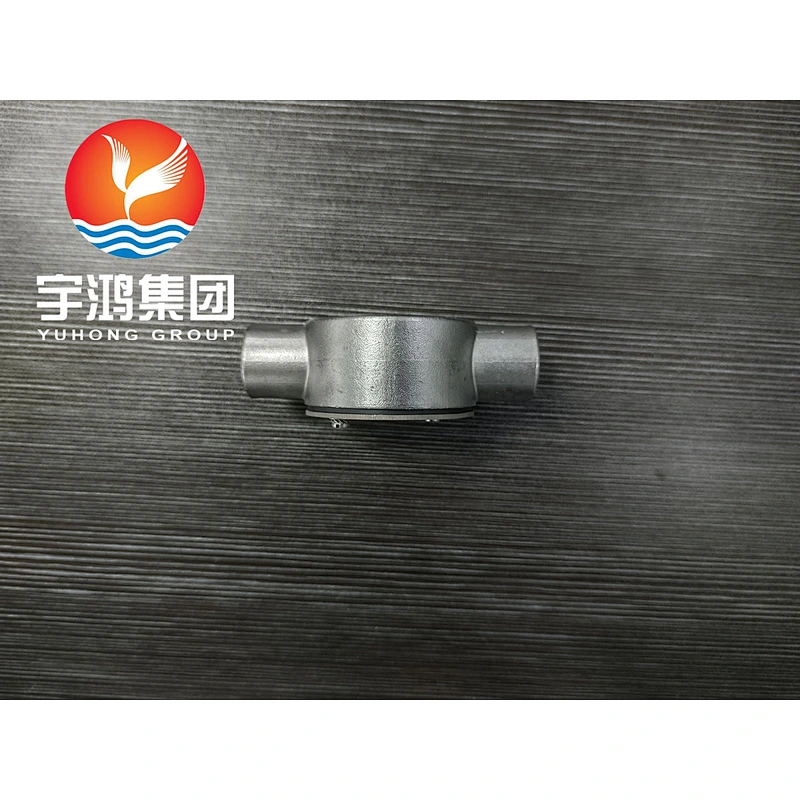

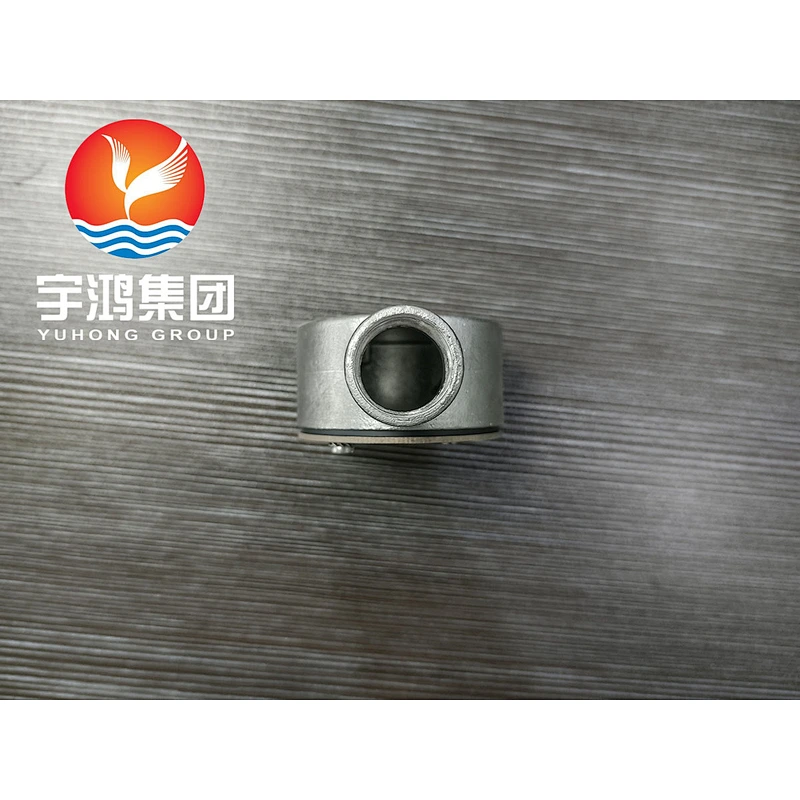

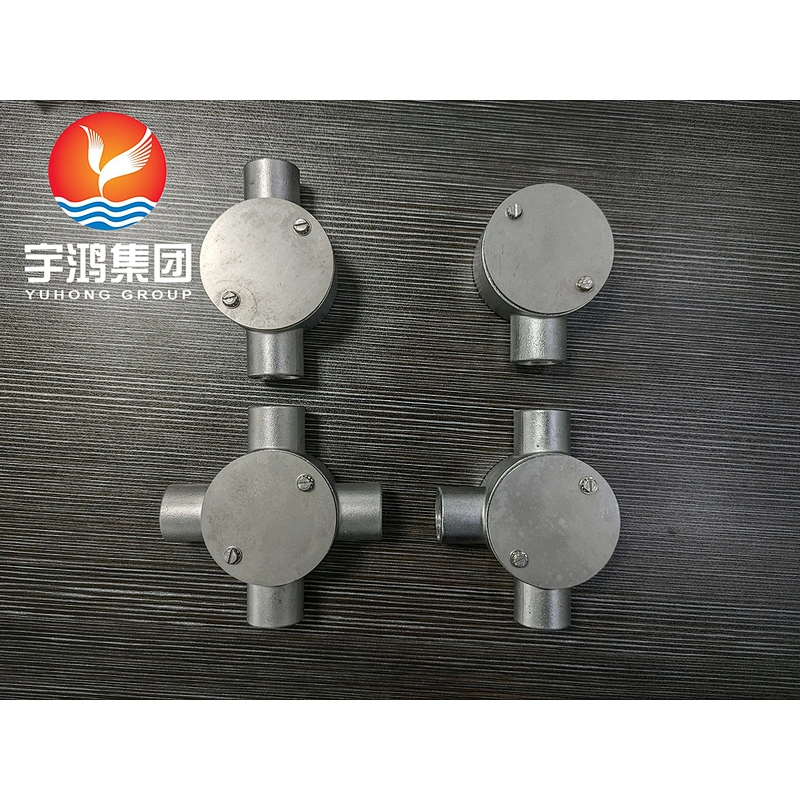

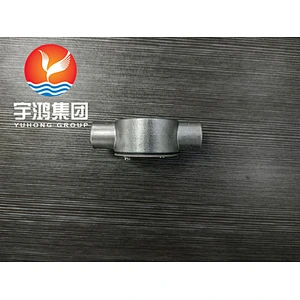

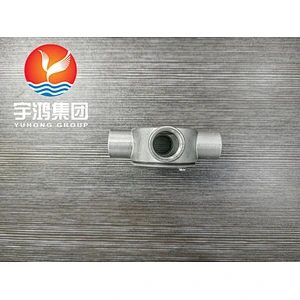

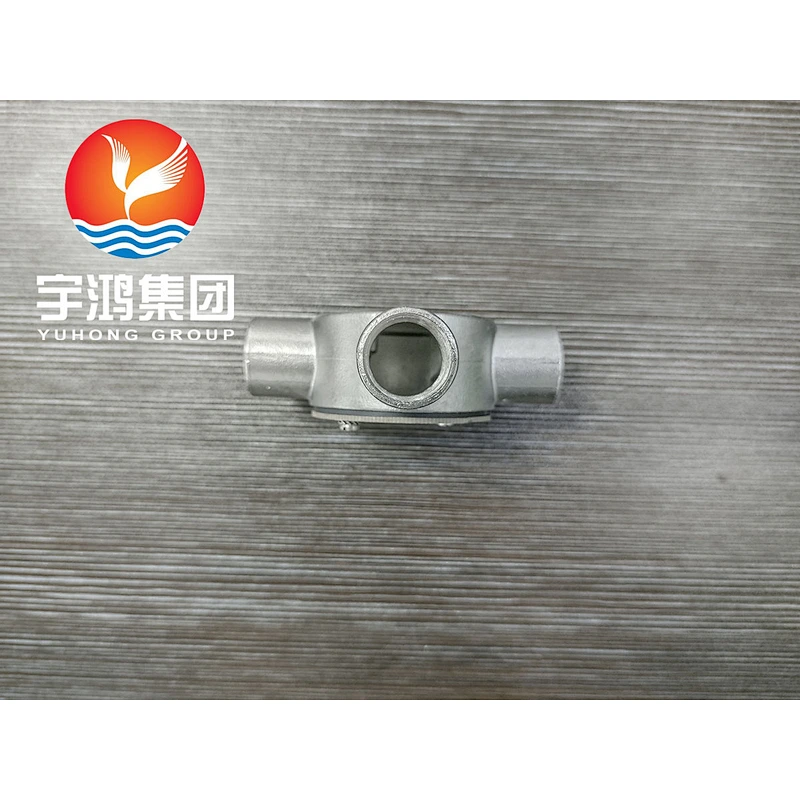

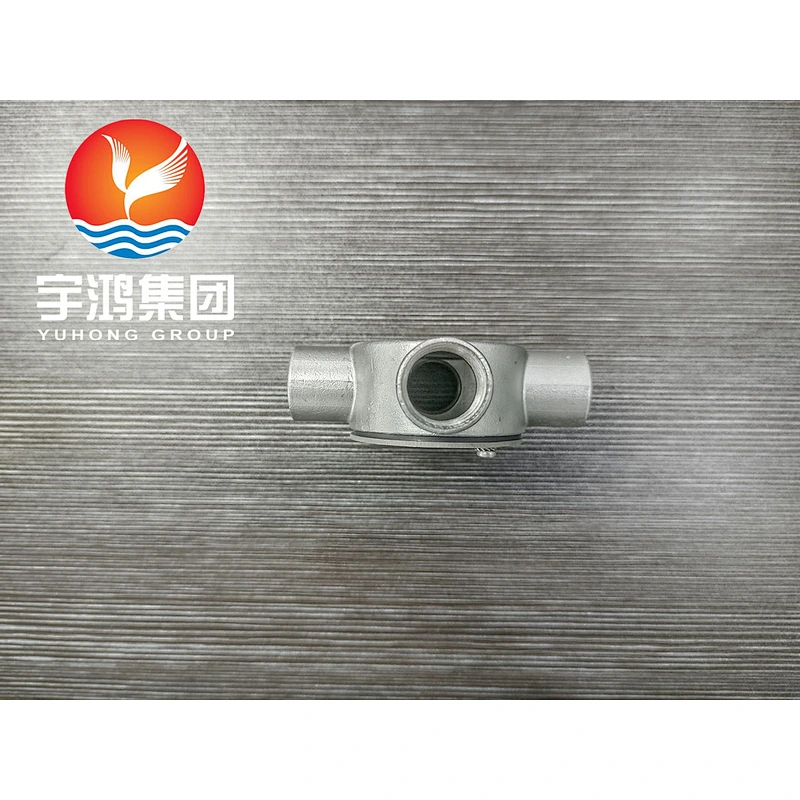

This through box cable conduit fitting lets you join conduits while also protecting electrical connections. With a lid, screws and a neoprene rubber gasket, this fitting provides a weather-proof and tamper-proof seal for industrial conduit connections.
It's constructed from high-grade 316 stainless steel that's corrosion-resistant and able to withstand high-pressure washdowns. It has a metric female thread with a pitch of 1.5 mm and comes with both a tapped hole and an earth screw in the base for holding the fitting in place.
This product meets rigorous safety and quality standards. It offers IP67 protection from dust particles and can be submerged in up to 1 metre of water for 30 minutes. It also meets British and international standards for wiring and electrical equipment enclosures.
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 | Min | - | - | - | 0 | - | 16.0 | 2.00 | 10.0 | - |
| Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| 316L | Min | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| 316H | Min | 0.04 | 0.04 | 0 | - | - | 16.0 | 2.00 | 10.0 | - |
| max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | - |
Mechanical Properties
| Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
| 316H | 515 | 205 | 40 | 95 | 217 |
Features and Benefits
• Through box cable conduit fitting
• 316 stainless steel construction
• Neoprene rubber gasket
• Tapped hole and earth screw on base
• IP67 rating for protection in 1 m of water for 30 minutes
• Meets BS EN 60529:1992 and IEC 529:1989 standards for electrical equipment enclosures
• Meets EN50086 standard for corrosion resistance
• Conduit threads meet BS 4568:1:1970 wiring regulations
