Overview
U bolts available in a range of sizes and finishes to support different loads, torque requirements and environments.

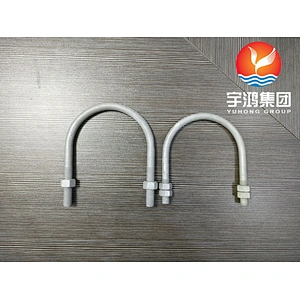

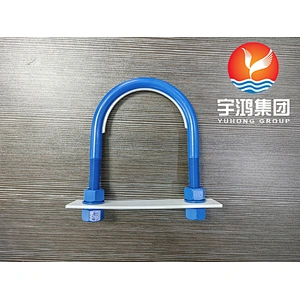

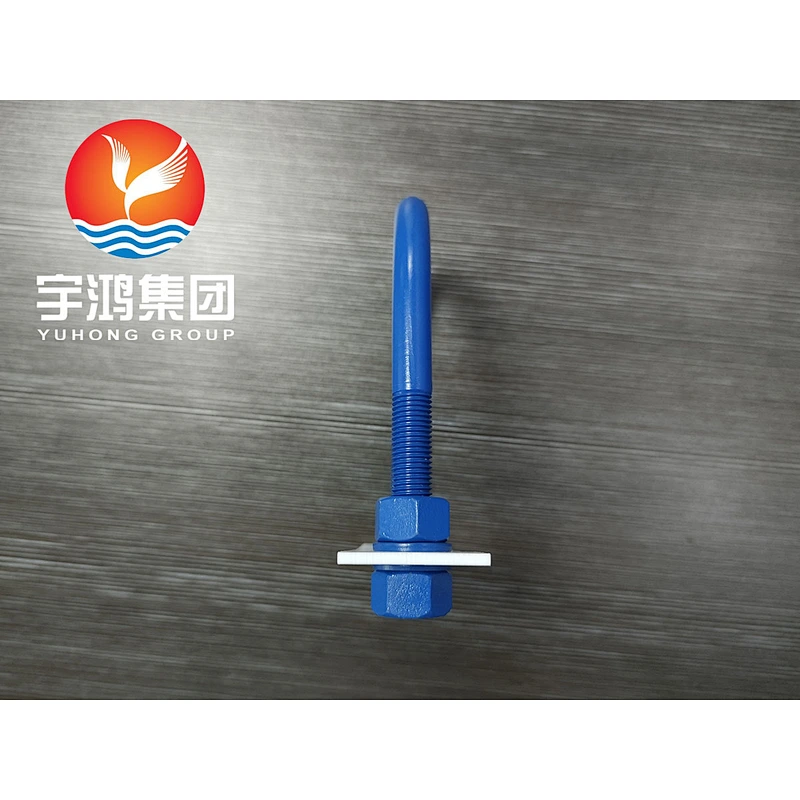

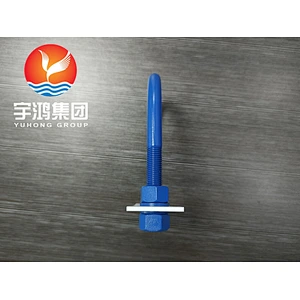

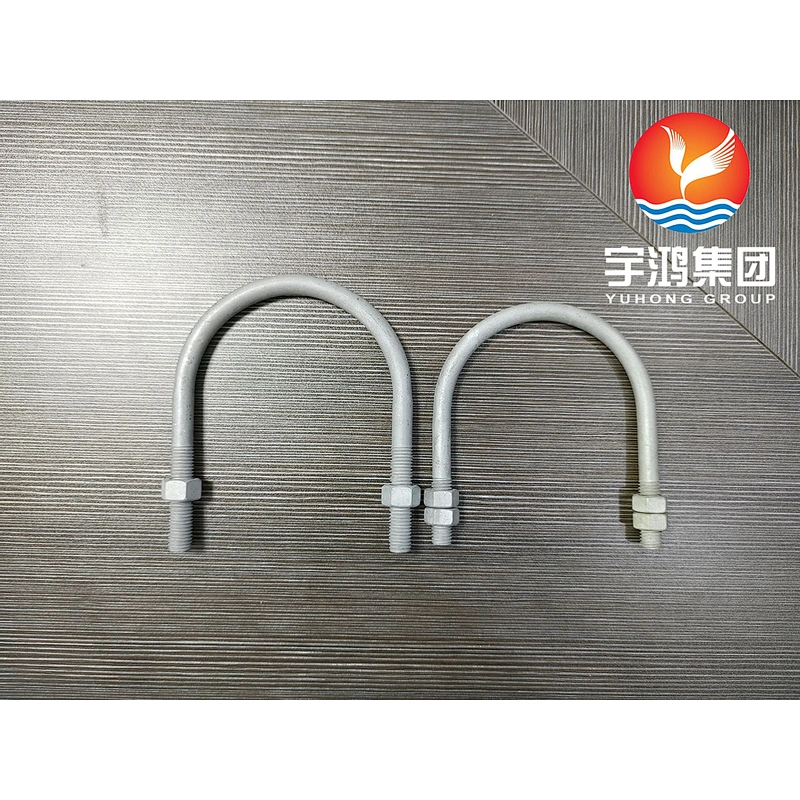

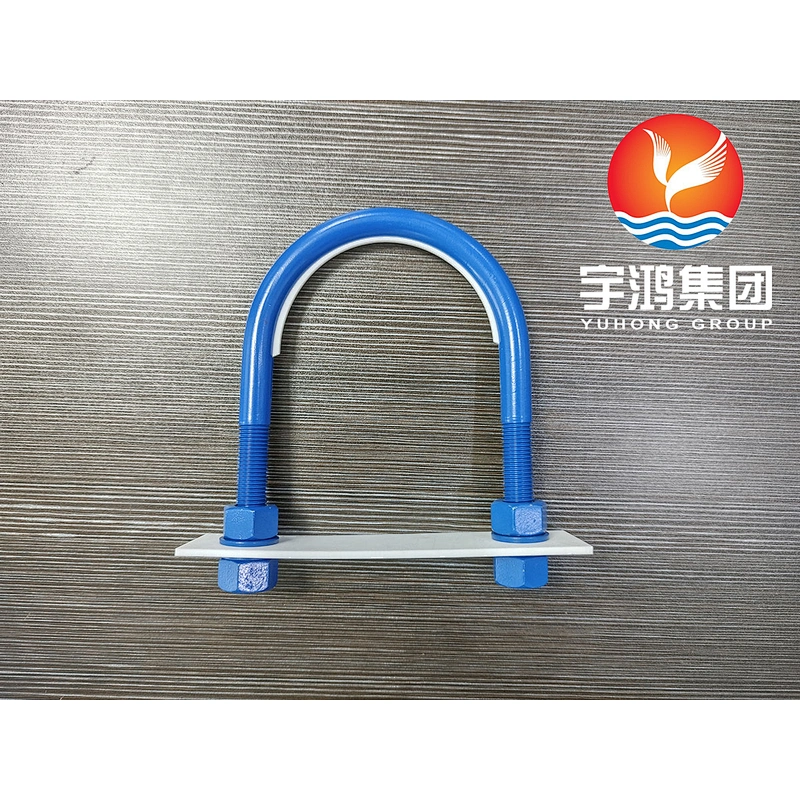

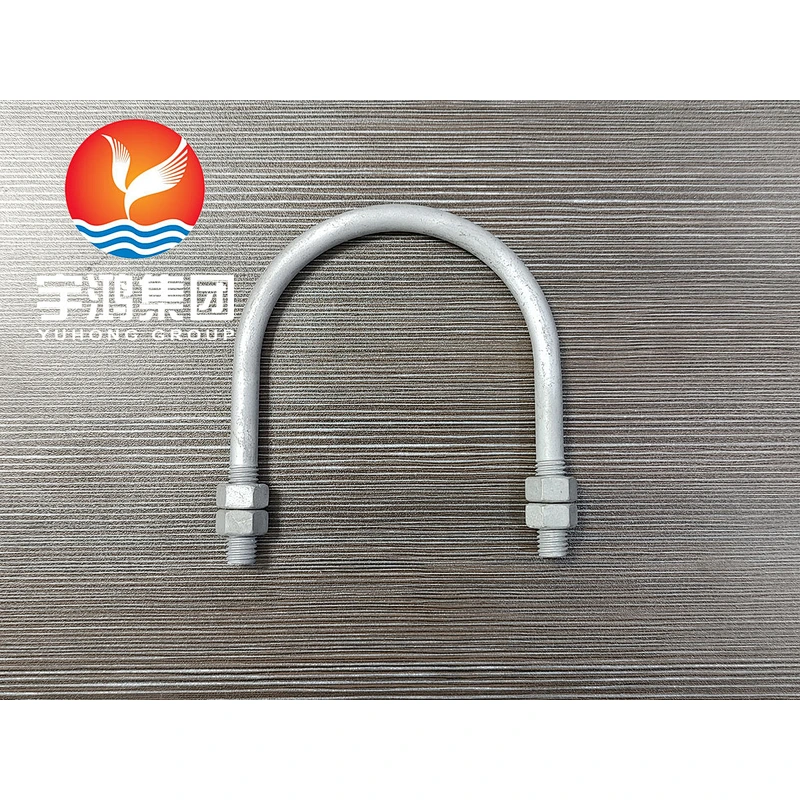

A U-bolt is an industrial fastener in the shape of the letter U with two threaded arms (or legs) extending from a curved base. U bolts are typically used to support pipework or to attach a part to a pole, beam or wall, where the “U” shape keeps it firmly in place, adding stability to the support.

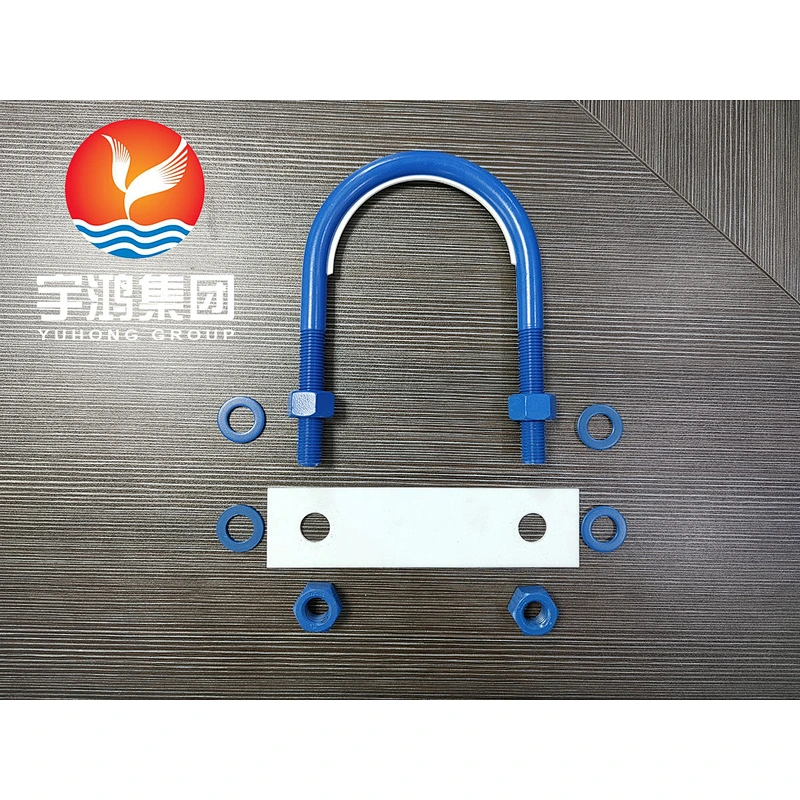

The threaded ends are designed for use with washers and screws, and can also be used with a crosspiece spanning both threaded arms of the bolt, to make it more secure in certain settings and uses. U-bolts are designed to be inserted through holes that have already been drilled or punched. Often used as framing fasteners and anchors for foundations and roofs, pipe and conduit holders and bolts for motor and engine shaft components.
Specification
| Size | M6-M30 costomed | ||||
| Material | Stainless Steel SS304, SS316 | ||||
| Thread | M, UNC, UNF | ||||
| Finish | Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G | ||||
| Packing | bulk in cartons (25kg Max.)+wood Pallet or according to customer special demand | ||||
| Application | Structural Steel; Metal Buliding; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile: Home Decorating | ||||
| Equipments | Caliper, Go&No-go gauge, Tensile test machine, Hardness tester,Salt spraying tester, H.D.G thickness tester, 3D detector, Projector, Magnetic flaw detecter | ||||
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
304 | min. | - | - | - | - | - | 18.0 | - | 8.0 | - |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||
316 | min. | - | - | - | 0 | - | 16.0 | 2.00 | 10.0 | - |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 3.00 | 14.0 | 0.10 | |
Mechanical Properties
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| 316 | 515 | 205 | 40 | 95 | 217 |
Applications
- 1. Construction and installation
- 2. Machinery parts connected vehicles
- 3. Ships
- 4. Bridges
- 5. Tunnels
- 6. Railways
