Overview
316Ti (UNS S31635) is a titanium stabilised version of 316 molybdenum-bearing austenitic stainless steel. The 316 alloys are more resistant to general corrosion and pitting/crevice corrosion than the conventional chromium-nickel austenitic stainless steels such as 304. They also offer higher creep, stress-rupture and tensile strength at elevated temperature.
High carbon Alloy 316 stainless steel can be susceptible to sensitisation, the formation of grain boundary chromium carbides at temperatures between approximately 900 and 1500°F (425 to 815°C) which can result in intergranular corrosion. Resistance to sensitisation is achieved in Alloy 316Ti with titanium additions to stabilise the structure against chromium carbide precipitation, which is the source of sensitisation. This stabilisation is achieved by an intermediate temperature heat treatment, during which the titanium reacts with carbon to form titanium carbides.
This significantly reduces susceptibility to sensitisation in service by limiting the formation of chromium carbides. Thus, the alloy can be used for extended periods at elevated temperatures without compromising its corrosion resistance. 316Ti has equvilent corrosion resistance to sensitisation as the low carbon version 316L.
Specification

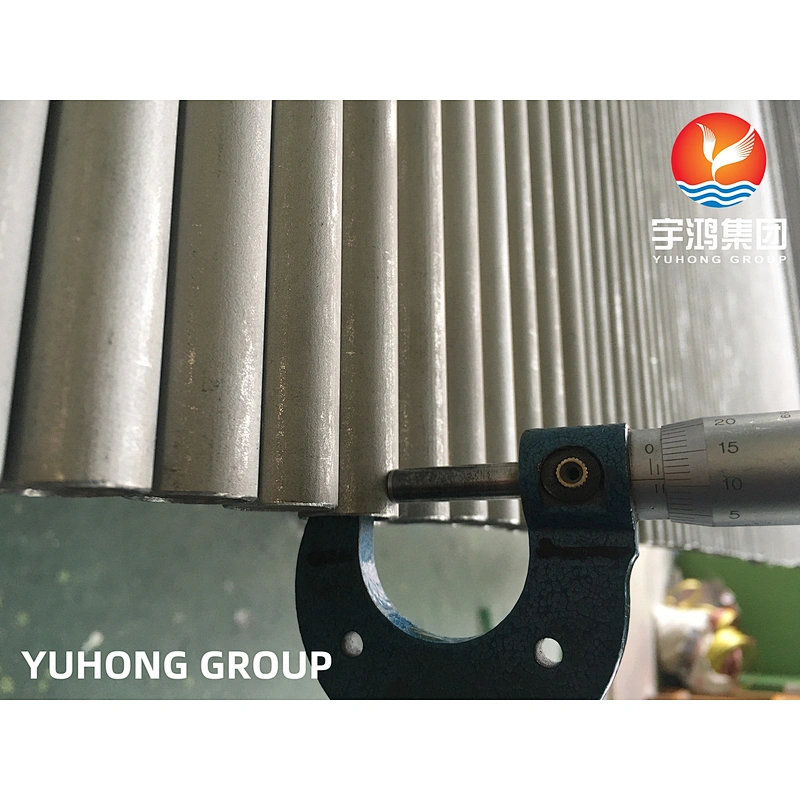

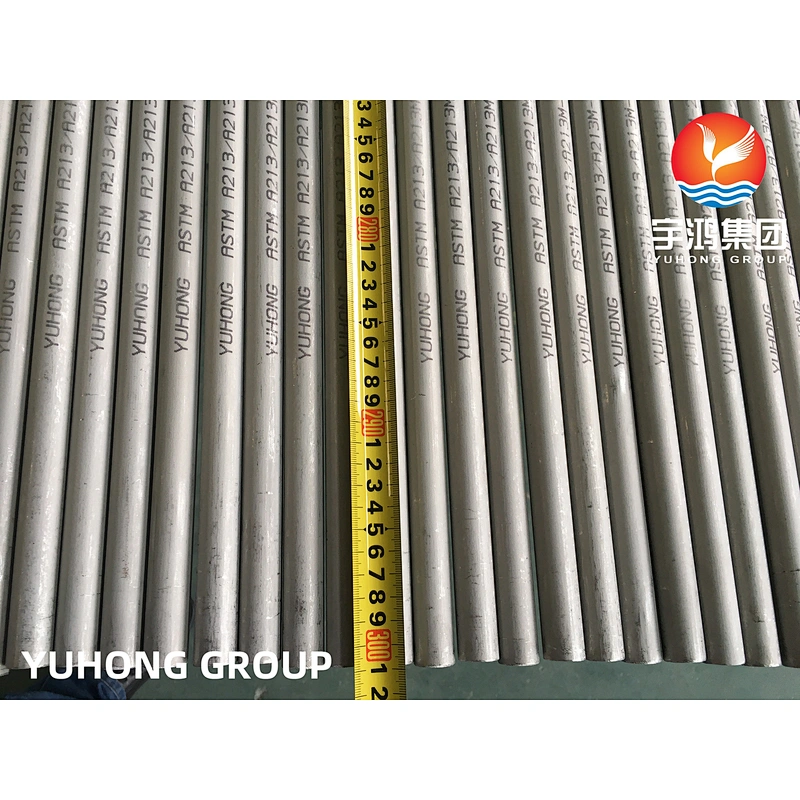

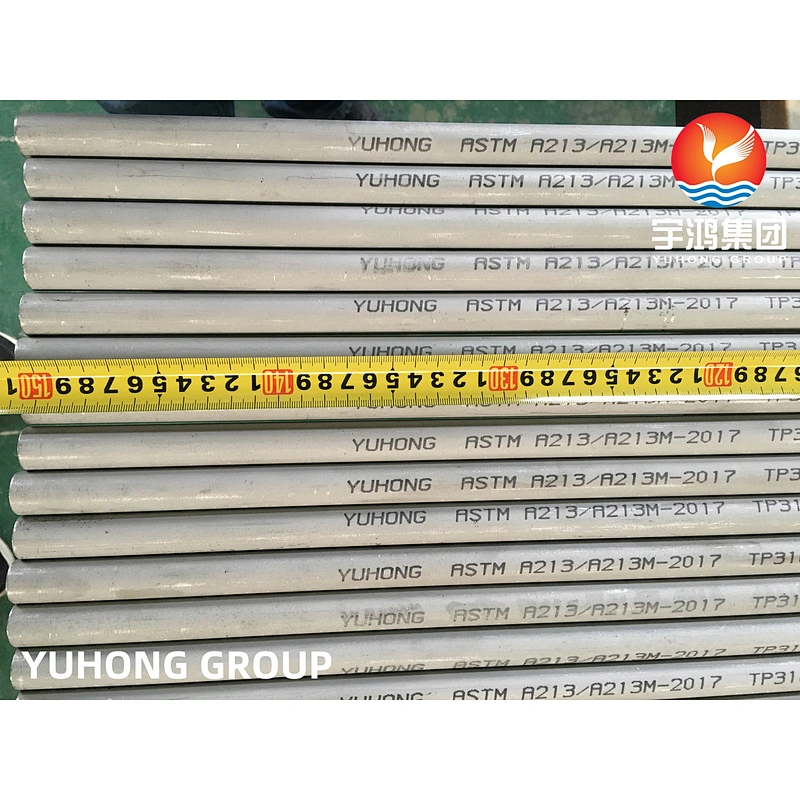

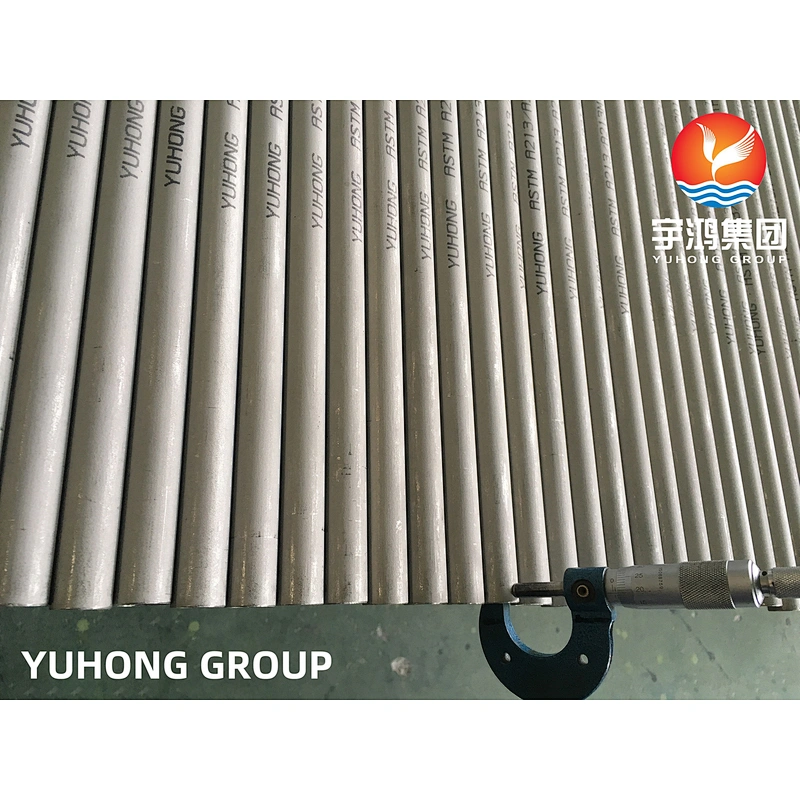

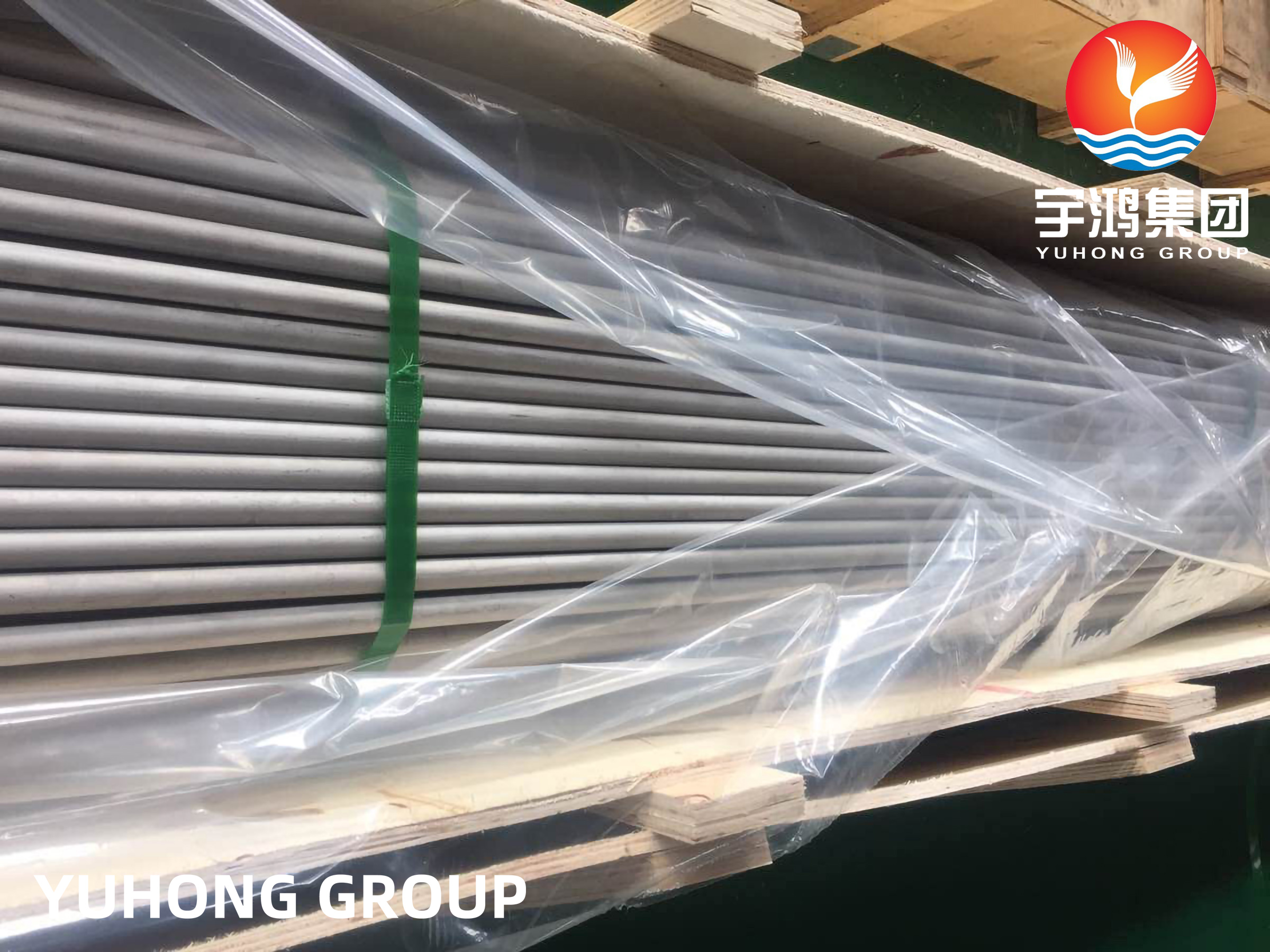

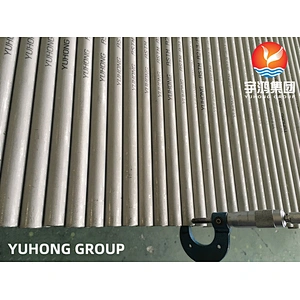

ASTM A213/A213M-21a Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes.
316Ti Stainless Steel Pipe & Tubes Specification | ASTM A269, ASTM A213, ASTM A312, ASME SA269, ASME SA213, ASME SA312 |
316Ti Stainless Steel Pipe & Tubes Grades | 202, 304, 304L, 304H, 304LN, 309S, 310S, 316, 316L, 316H, 316Ti, 316LN, 317L, 321, 321H, 347, 347H, 904L, SMO 254, ALLOY 254, 6MO, 6MOLY, UNS S31254 ETC. |
316Ti Stainless Steel Pipe & Tubes Type | Seamless / Welded / ERW / EFW / Cold Draw / Hot Finish / Cold Finish |
316Ti Stainless Steel Pipe & Tubes Outer Diameter Size | Seamless - 1/2"NB TO 18"NB |
316Ti Stainless Steel Pipe & Tubes Wall Thickness | Schedule 10 to Schedule 160 (3 mm to 100 mm Thickness) |
316Ti Stainless Steel Pipe & Tubes Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
316Ti Stainless Steel Pipe & Tubes Ends | Plain Ends / Beveled Ends |
316Ti Stainless Steel Pipe & Tubes Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
316Ti Stainless Steel Pipe & Tubes Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
316Ti Stainless Steel Pipe & Tubes Other Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiograph HIC Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
316Ti Stainless Steel Pipe & Tubes Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
Chemical Composition
Element | Min | Max |
C | - | 0.08 |
Si | - | 0.75 |
Mn | - | 2 |
P | - | 0.45 |
S | - | 0.03 |
Cr | 16 | 18 |
Mo | 2 | 3 |
N | - | 0.1 |
Fe | Balance | |
Ni | 10 | 14 |
Ti | 5x%(C+N) | |
Mechanical Properties
Temper | Annealed | |
|---|---|---|
Tensile Rm | 75 | ksi (min) |
Tensile Rm | 515 | MPa (min) |
R.p. 0.2% Yield | 30 | ksi (min) |
R.p. 0.2% Yield | 205 | MPa (min) |
Elongation (2” or 4D gl) | 35 | % (min) |
Physical Properties
Specific Heat (0-100°C) | 500 | J.kg-1.°K-1 |
Thermal Conductivity | 14.6 | W.m -1.°K-1 |
Thermal Expansion | 16.5 | mm/m/°C |
Modulus Elasticity | 193 | GPa |
Electrical Resistivity | 7.4 | μohm/cm |
Density | 7.99 | g/cm3 |
Applications
1. Food preparation equipment particularly in chloride environments.
2. Laboratory benches & equipment.
3. Coastal architectural panelling, railings & trim.
4. Boat fittings.
5. Chemical containers, including for transport.
6. Heat Exchangers.
7. Woven or welded screens for mining, quarrying & water filtration.
8. Threaded fasteners.
9. Springs.
