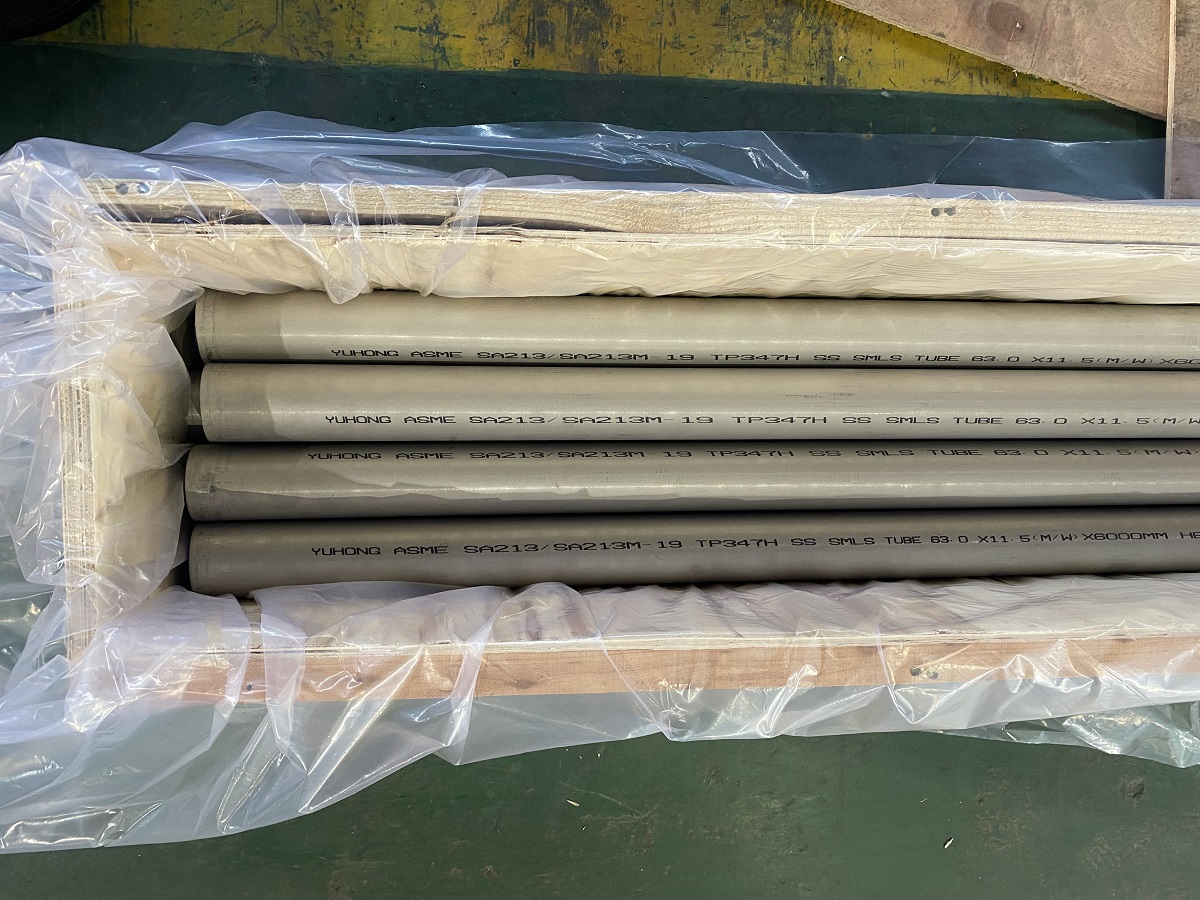

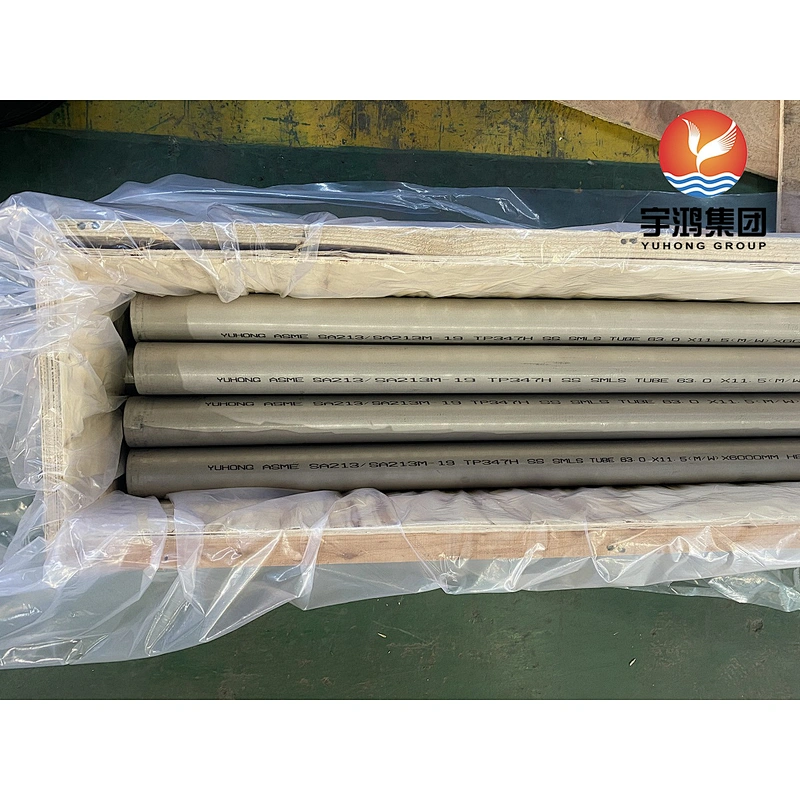

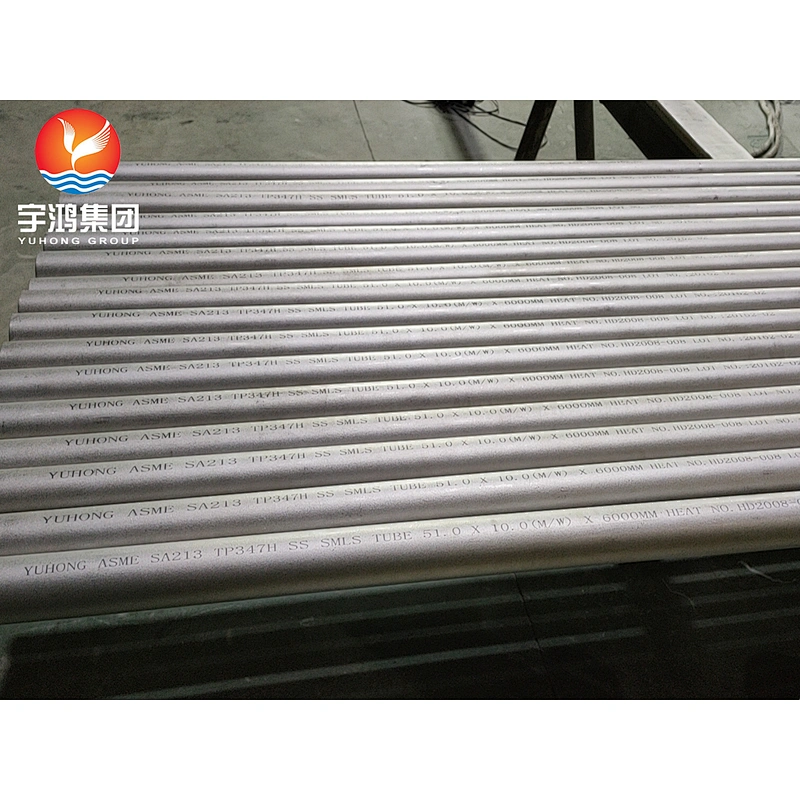

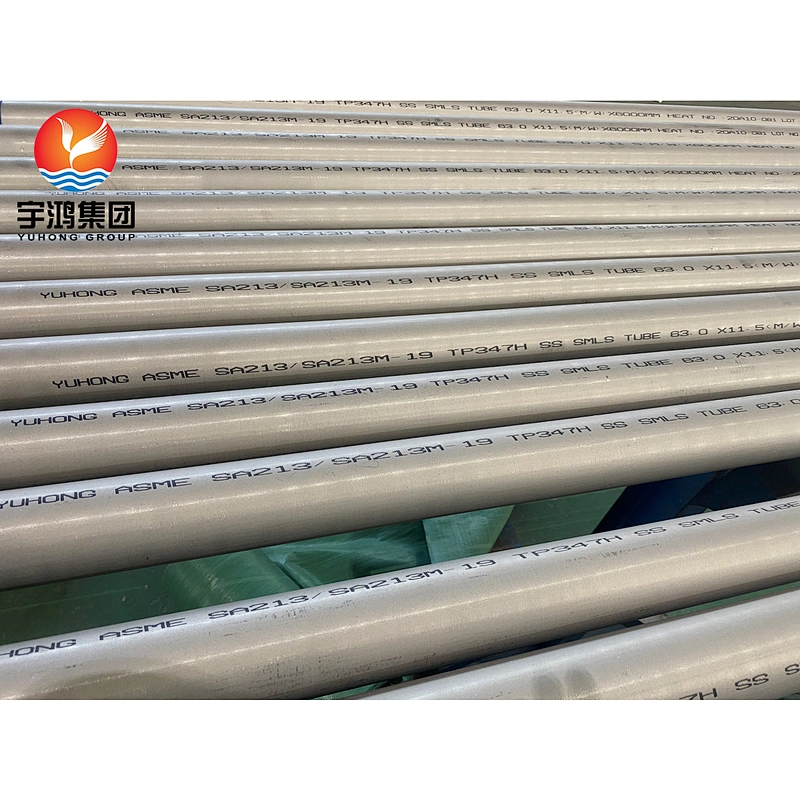

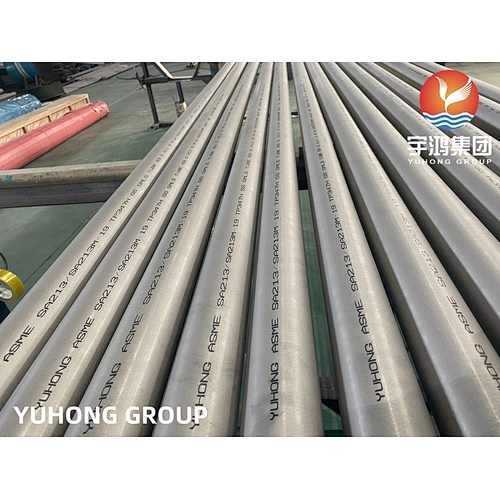

ASME SA213 TP347H STAINLESS STEEL SEAMLESS TUBE

Standard Specification:

ASTM A213 / A213M - 11a :Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes

ASTM A269 - 10 : Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service

ASTM A312 / A312M - 12 : Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes

ASTM A511 / A511M - 12 : Standard Specification for Seamless Stainless Steel Mechanical Tubing

ASTM A789 / A789M - 10a : Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service

ASTM A790 / A790M - 11 : Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe

DIN 17456-2010 : GENERAL PUROSE SEAMLESS CIRCULAR STAINLESS STEEL TUBES.

DIN 17458-2010 : Seamless Circular of Austenitic Stainless Steel Tube

EN10216-5 CT 1/2 : Stainless Steel Seamless Pipe & Tube

GOST 9941-81 : SEAMLESS COLD- AND WARM-WORKED TUBES MADE OF CORROSION RESISTANT STEEL.

Standard: ASTM A213, ASME SA213
Equivalent Standards: EN 10216-5, DIN 17458, GOST 9941-81, GOST 9940-81

Material: TP347H, S34709
Equivalent Material: 07Cr18Ni11Nb, X7CrNiNb18-10, SUS 347H TB

Chemistry Composition

C, %	Si, %	Mn, %	P, %	S, %	Cr, %	Ni, %	Nb, %
0.04-0.10	1.00 max	2.00 max	0.045 max	0.030 max	17.0-19.0	9.0-13.0	8*C-1.1

Mechanical Properties

Tensile Strength , MPa	Yield Strength, MPa	Elongation, %	Hardness, HB
515 min	205 min	35 min	192 max

Outside Diameter & Tolerance

Hot rolled	Outside Diameter, mm	Tolerance, mm
	OD≤101.6	+0.4/-0.8
	101.6＜OD≤190.5	+0.4/-1.2
	190.5＜OD≤228.6	+0.4/-1.6
Cold Drawn	Outside Diameter, mm	Tolerance, mm
	OD＜25.4	±0.10
	25.4≤OD≤38.1	±0.15
	38.1＜OD＜50.8	±0.20
	50.8≤OD＜63.5	±0.25
	63.5≤OD＜76.2	±0.30
	76.2≤OD≤101.6	±0.38
	101.6＜OD≤190.5	+0.38/-0.64
	190.5＜OD≤228.6	+0.38/-1.14

Wall thickness & Tolerance

Hot rolled	Outside Diameter, mm	Tolerance, %
	OD≤101.6, WT≤2.4	+40/-0
	OD≤101.6, 2.4＜WT≤3.8	+35/-0
	OD≤101.6, 3.8＜WT≤4.6	+33/-0
	OD≤101.6, WT>4.6	+28/-0
	OD>101.6, 2.4＜WT≤3.8	+35/-0
	OD>101.6, 3.8＜WT≤4.6	+33/-0
	OD>101.6, WT>4.6	+28/-0
Cold Drawn	Outside Diameter, mm	Tolerance, %
	OD≤38.1	+20/-0
	OD>38.1	+22/-0

ASTM A213/A213M specification covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes. The tubing sizes and thicknesses usually furnished to ASTM A213/A213M specification are 1⁄8 in. [3.2 mm] in inside diameter to 5 in.[127 mm] in outside diameter and 0.015 to 0.500 in. [0.4 to 12.7 mm], inclusive, in minimum wall thickness or, if specified in the order, average wall thickness. Tubing having other diameters may be furnished, provided such tubes comply with all other requirements of ASTM A213/A213M specification.

Manufacture: tubes shall be made by the seamless process and shall be either hot finished or cold finished, as specified.
Heat Treatment: solution treatment.
Inspection & Test: chemistry composition, tensile test, hardeness test, flattening test, flaring test, NDT, surface inspection and dimension check.

Length: 5800mm; 6000mm; 6096mm; 7315mm; 11800mm; 12000mm; and so on.
Max developed length: 32 meters, also U bending can be offered, each leg length can be 15.24 meters.

ASME SA213 TP347H STAINLESS STEEL SEAMLESS TUBE
