Overview

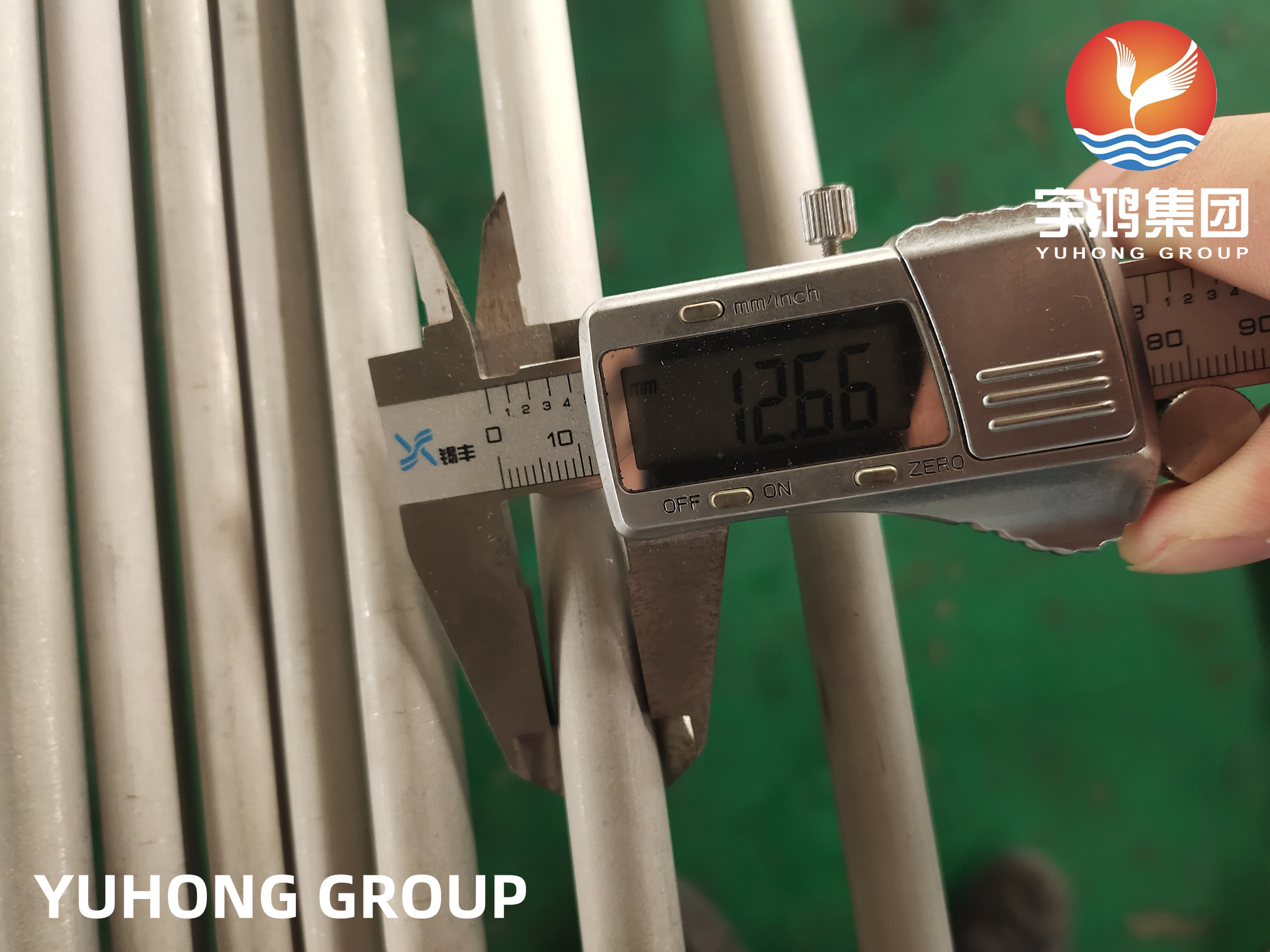

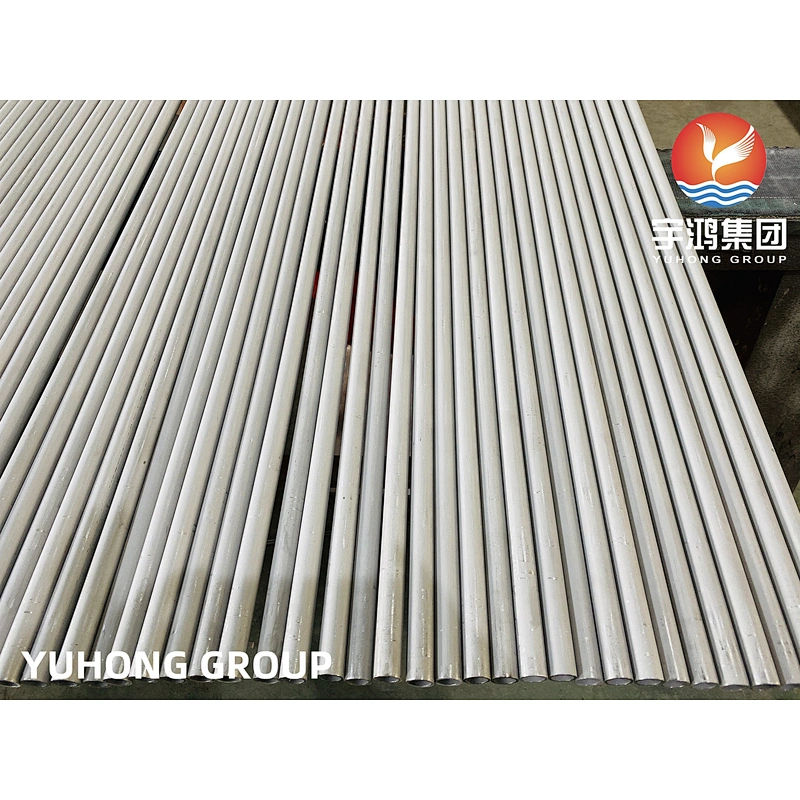

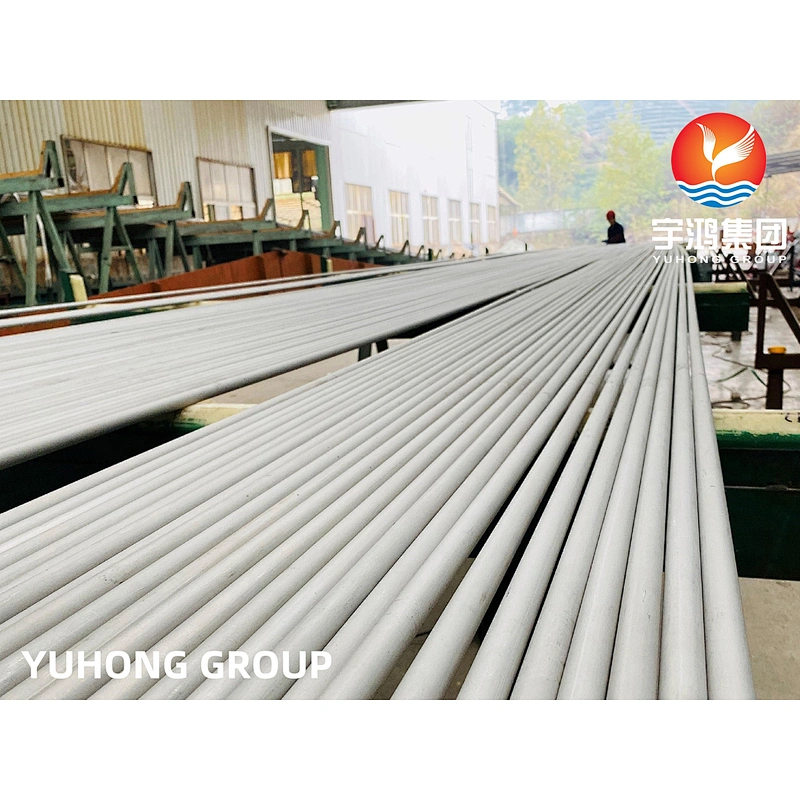

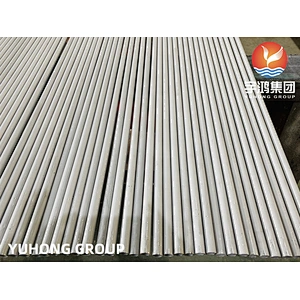

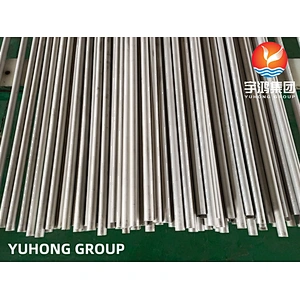

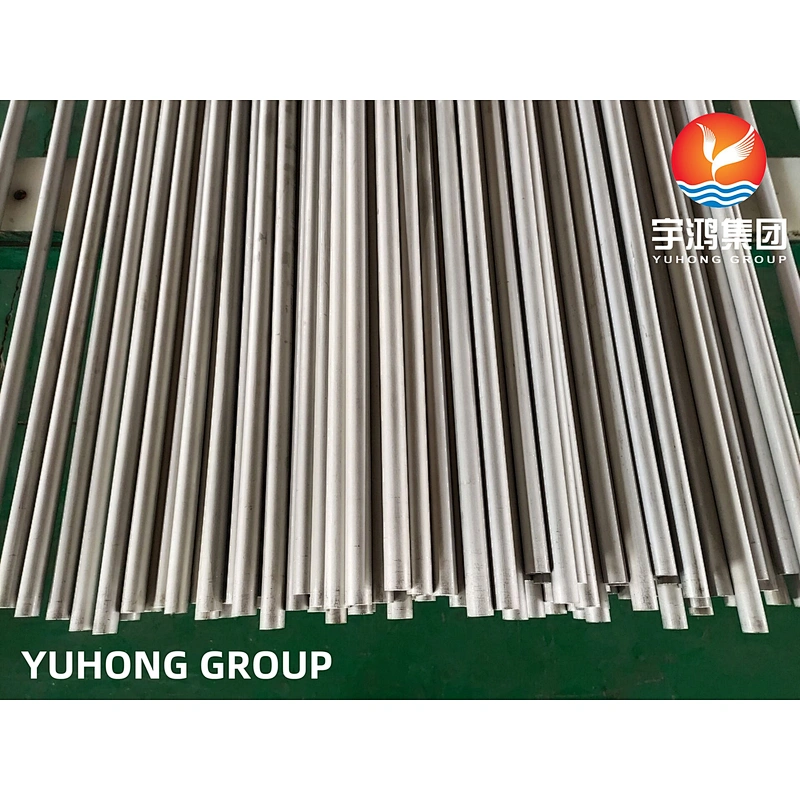

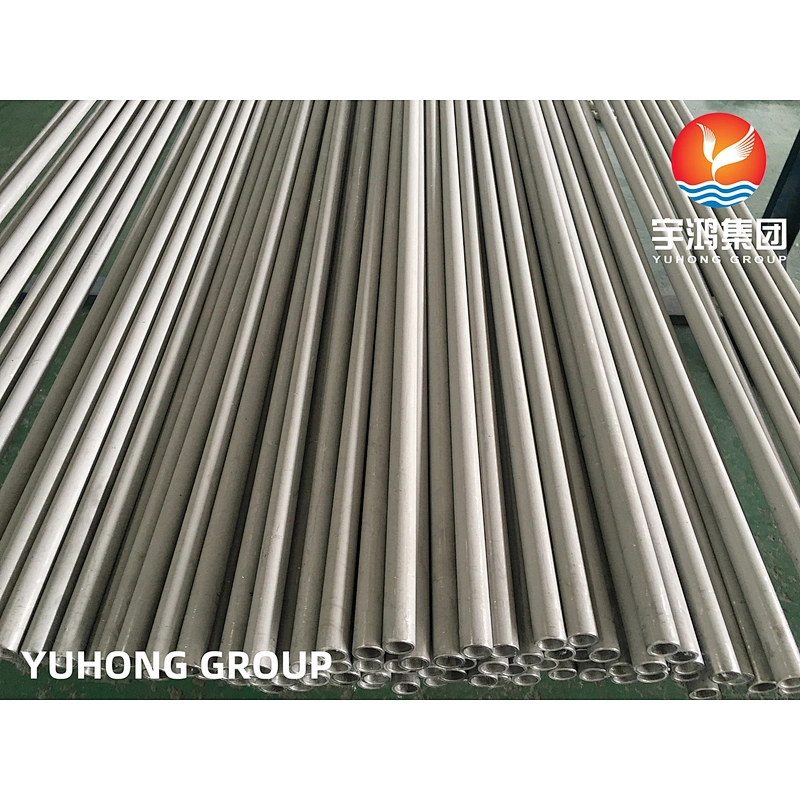

Grade 310 Stainless Steel Tubes or UNS S31000 Tubes is one of the most widely used grades of heat-resistant stainless steel having good strength and oxidation resistance in continuous service temperatures up to 2000 Deg F (1093 Deg C). The key properties of this material are its high chromium and medium nickel content making its resistance to oxidation, sulfidation and other forms of hot corrosion its main characteristics.
It has resistant to resist high temperatures and can be preferred for heat treatment equipment and furnace. The SS 310 is mixture of manganese, carbon, phosphorus, silicon, chromium, sulfur, nickel, molybdenum, nitrogen material. This mixture gives unique strength and features.
Specification
ASTM A213/A213M-21a Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes.
Specifications | ASTM A213 / ASME SA213 |
Dimensions | ASTM, ASME and API |
Range | 1/2"OD - 12"OD |
Outside Diameter | 3.00 mm - 219.10 mm, 6.35 mm O.D to 114.3 mm O.D |
Length | Single Random, Double Random & Required Length |
Thickness | 0.40 mm - 12.70 mm, 0.8 mm to12.7 mm |
Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS |
Type | Seamless |
Form | Round Tube, Square Tube, Rectangular Tube |
End | Plain End, Beveled End, Treaded |
Equivalent Grades
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | - | X15CrNi25-20 |
Chemical Composition
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
310 | min. | - | - | - | - | - | 24.0 | - | 19.0 |
310S | min. | - | - | - | - | - | 24.0 | - | 19.0 |
Mechanical Properties
Density | Melting Point | Tensile Strength | Yield Strength | Elongation |
7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Applications
1. Heat Exchangers
2. Radiant Tubes
3. Muffles, retorts, annealing covers
4. Tube hangers for petroleum refiing adn steam boilers
5. Coal gasifier internal components
6. Furnace parts, conveyor belts, rollers, oven linings, fans
7. Food processing equipment
8. Cryogenic structures
