Overview
It is widely used in the chemical industry because of its excellent corrosion resistance. It's also a derivative steel of 18-8 type austenitic stainless steel, with 2 to 3% Mo element added. On the basis of 316L, many steel grades are also derived. For example, 316Ti is derived from adding a small amount of Ti, 316N is derived from adding a small amount of N, and 317L is derived from increasing the content of Ni and Mo.
The Mo content of 316L makes the steel with excellent pitting resistance and can be safely used in environments containing halogen ions such as Chloride. Because of the chemical properties, steel mills have slightly lower requirements for surface inspection of 316L (relative to 304). Customers with higher requirements on the surface should strengthen the surface inspection.
Specification

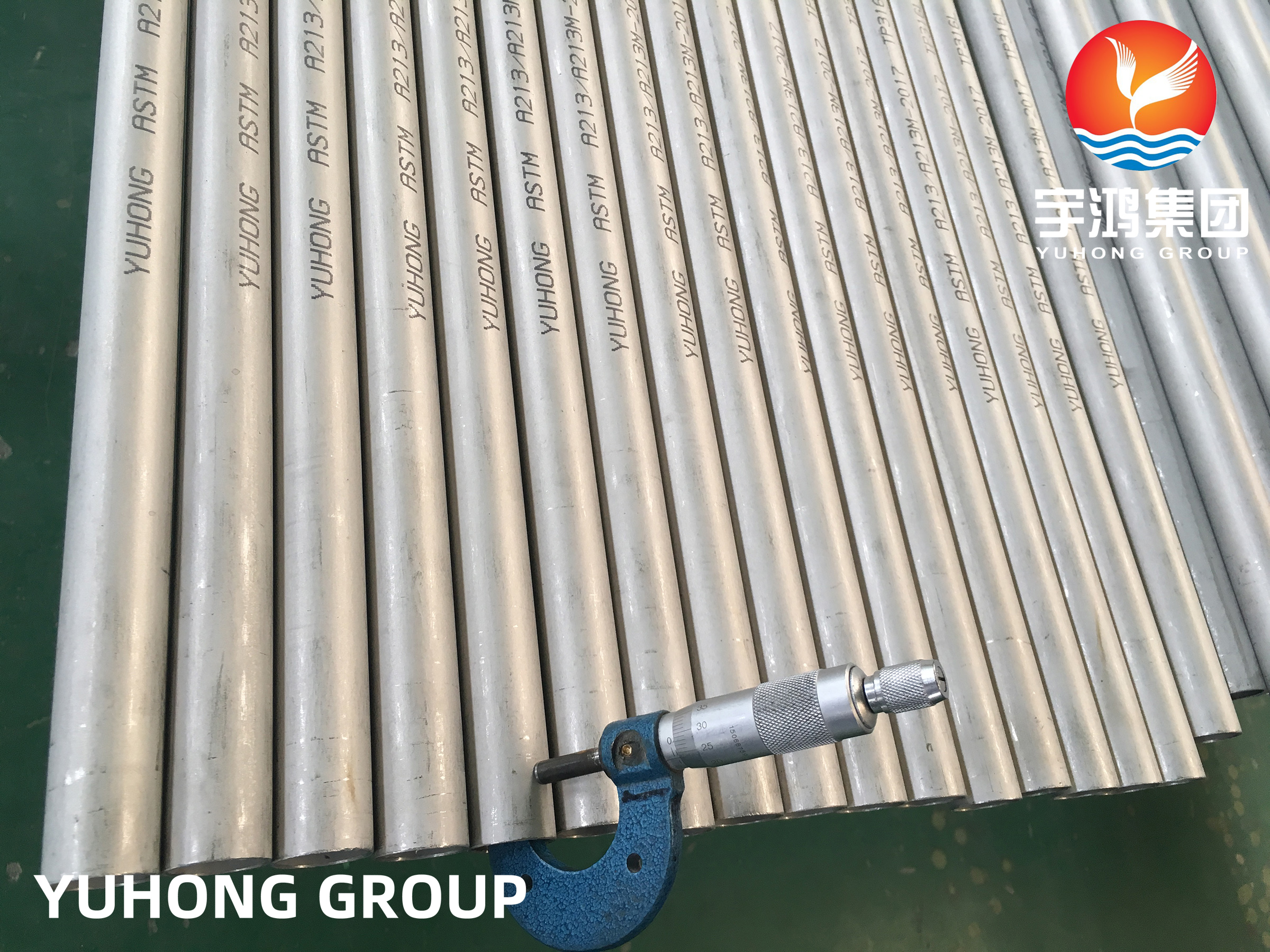

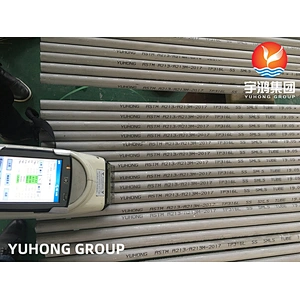

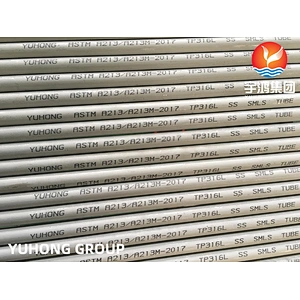

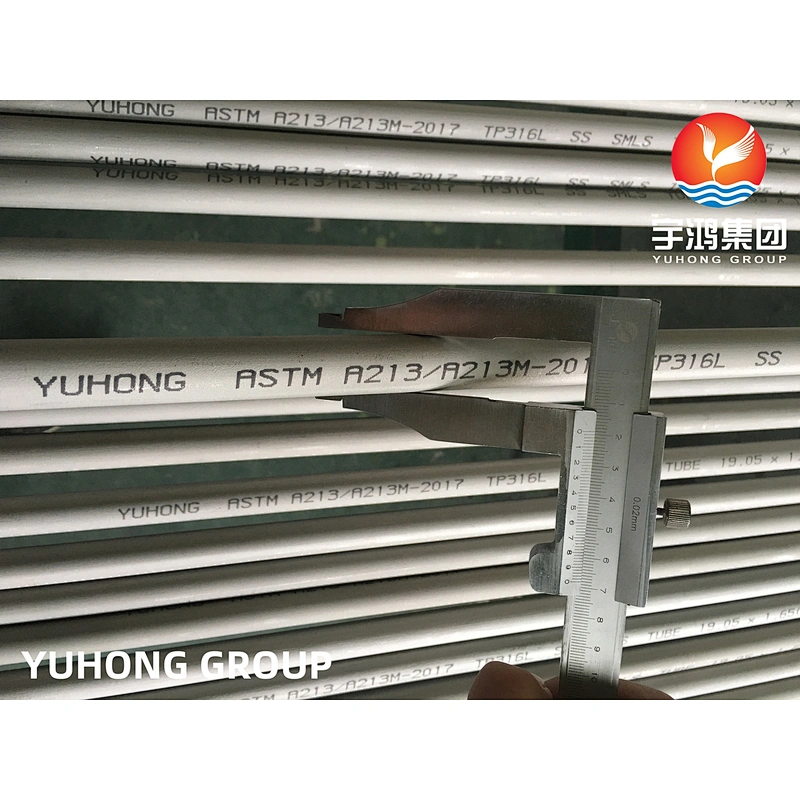

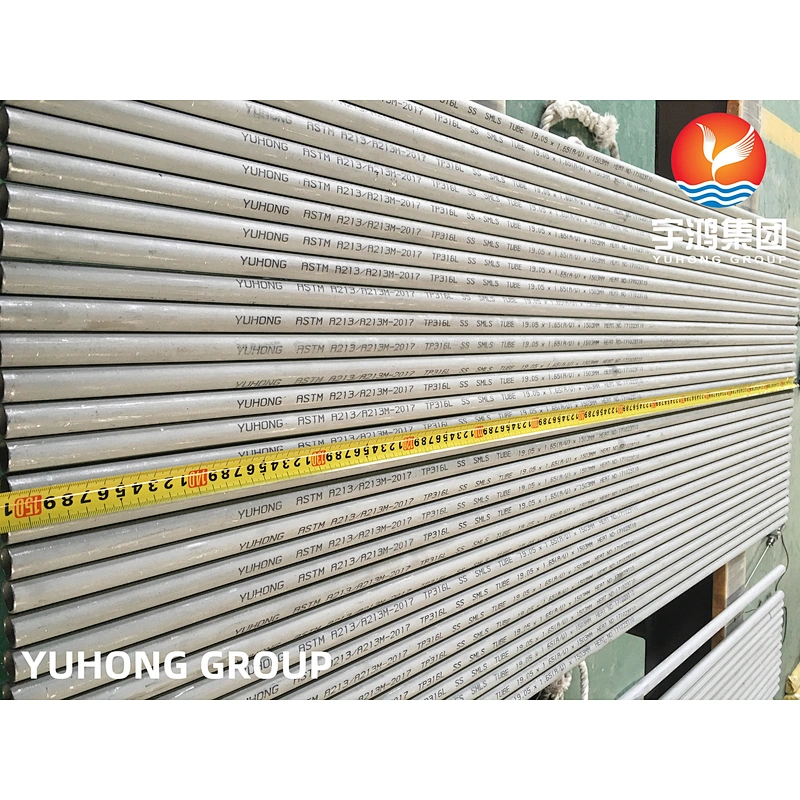

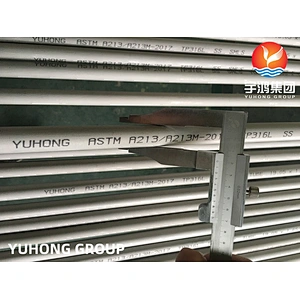

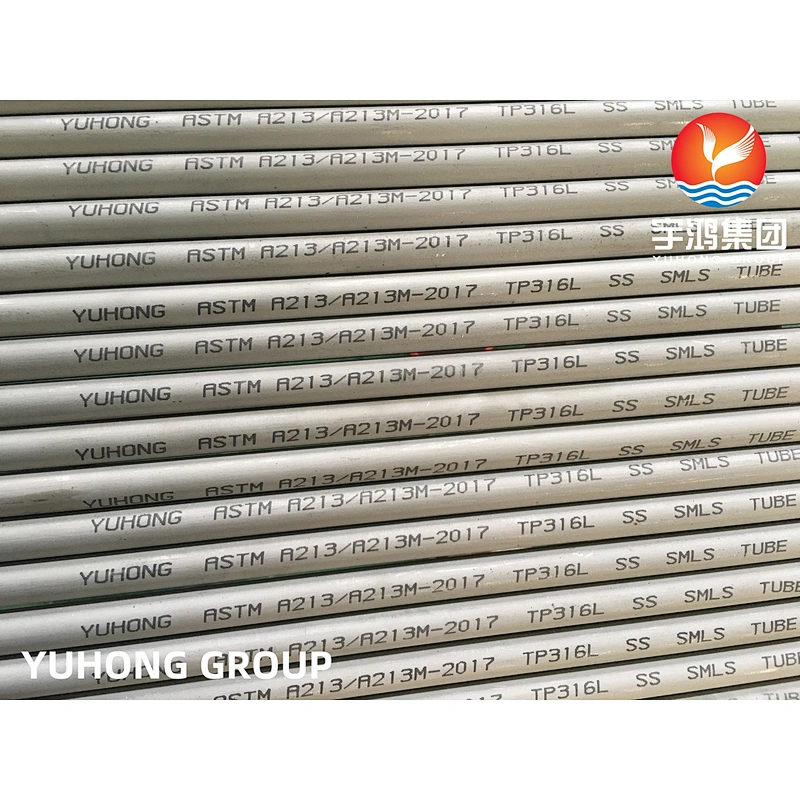

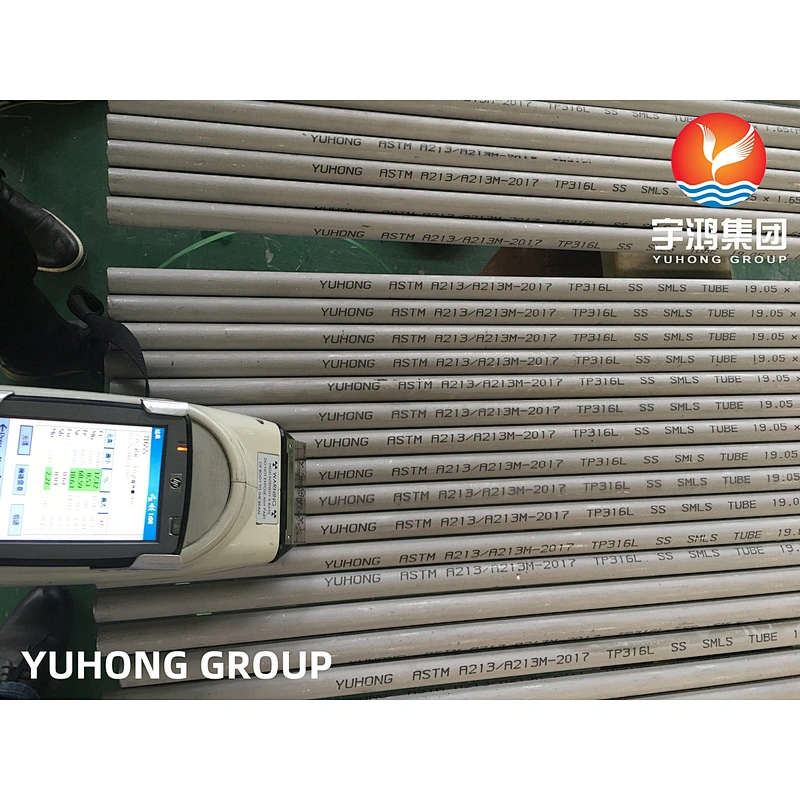

ASTM A213/A213M-21a Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes.
| 316L Stainless Steel Pipe & Tubes Specification | ASTM A269, ASTM A213, ASTM A312, ASME SA269, ASME SA213, ASME SA312 |
| 316L Stainless Steel Pipe & Tubes Grades | 202, 304, 304L, 304H, 304LN, 309S, 310S, 316, 316L, 316H, 316Ti, 316LN, 317L, 321, 321H, 347, 347H, 904L, SMO 254, ALLOY 254, 6MO, 6MOLY, UNS S31254 ETC. |
| 316L Stainless Steel Pipe & Tubes Type | Seamless / Welded / ERW / EFW / Cold Draw / Hot Finish / Cold Finish |
| 316L Stainless Steel Pipe & Tubes Outer Diameter Size | Seamless - 1/2"NB TO 18"NB Welded / ERW- 1"NB TO 16"NB EFW - 8"NB TO 110"NB |
| 316L Stainless Steel Pipe & Tubes Wall Thickness | Schedule 10 to Schedule 160 (3 mm to 100 mm Thickness) |
| 316L Stainless Steel Pipe & Tubes Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| 316L Stainless Steel Pipe & Tubes Ends | Plain Ends / Beveled Ends |
| 316L Stainless Steel Pipe & Tubes Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
| 316L Stainless Steel Pipe & Tubes Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| 316L Stainless Steel Pipe & Tubes Other Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiograph HIC Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
| 316L Stainless Steel Pipe & Tubes Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| 316L Stainless Steel Pipe & Tubes Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
Chemical Composition
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
316 | Min | - | - | - | 0 | - | 16.0 | 2.00 | 10.0 | - |
Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
316L | Min | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
316H | Min | 0.04 | 0.04 | 0 | - | - | 16.0 | 2.00 | 10.0 | - |
max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | - | |
Mechanical Properties
Grade | Tensile Str | Yield Str | Elong | Hardness | |
Rockwell B | Brinell | ||||
316 | 515 | 205 | 40 | 95 | 217 |
316L | 485 | 170 | 40 | 95 | 217 |
316H | 515 | 205 | 40 | 95 | 217 |
Physical Properties
Grade | Density | Elastic Modulus | Mean Co-eff of | Thermal Conductivity | Specific Heat 0-100°C | Elec Resistivity | |||
0-100°C | 0-315°C | 0-538°C | At 100°C | At 500°C | |||||
316/L/H | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Applications
1. Chemical and petrochemical industry.
2. Food processing.
3. Pharmaceutical equipment.
4. Medical devices.
5. Potable water.
6. Wastewater treatment.
7. Marine applications and architectural applications near the seashore or in urban areas
