Overview

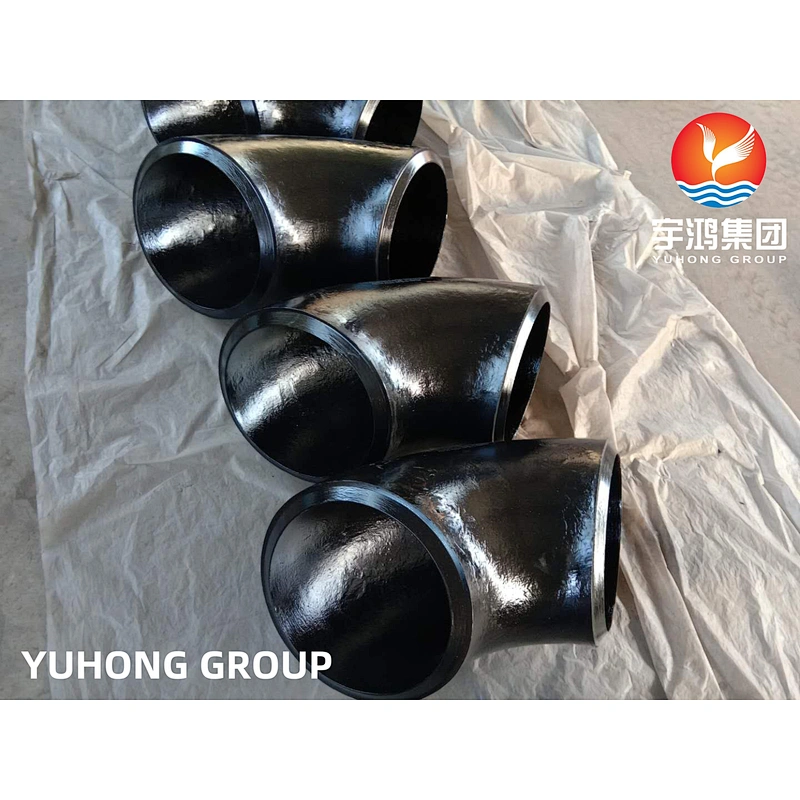

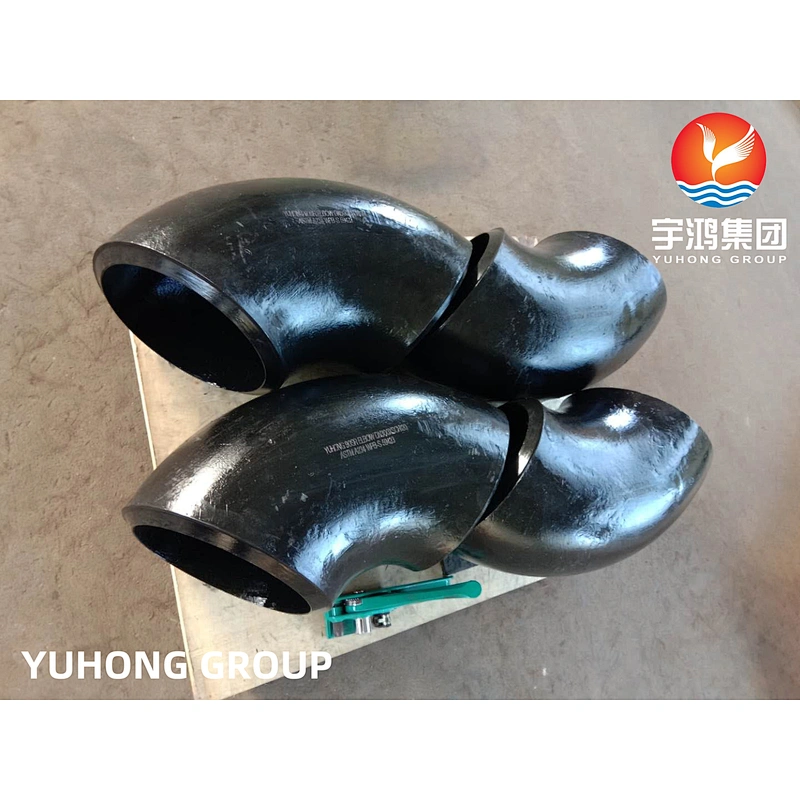

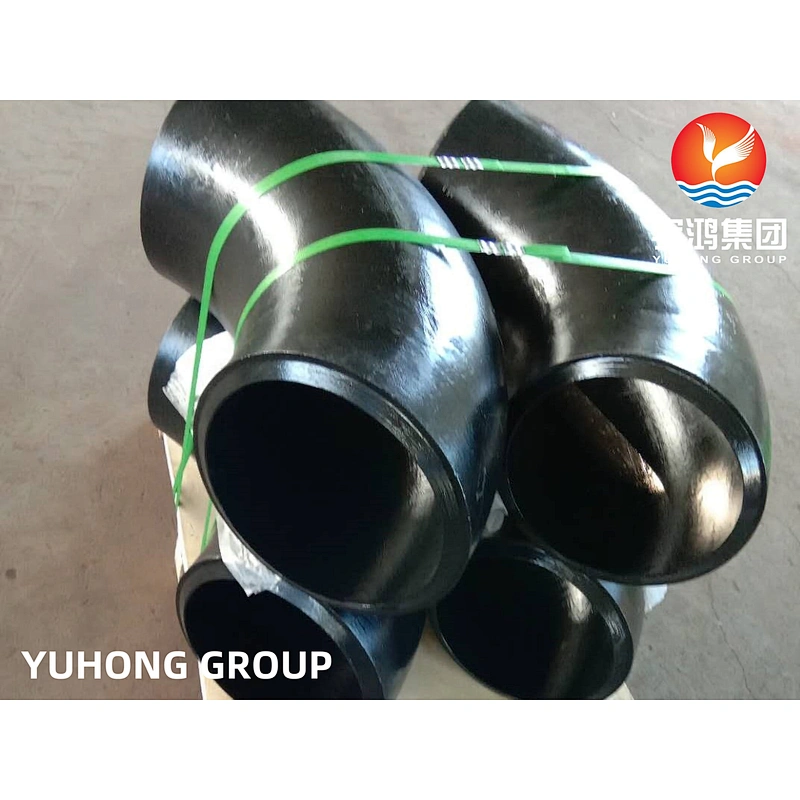

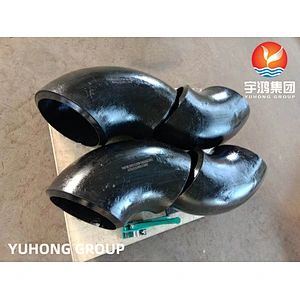

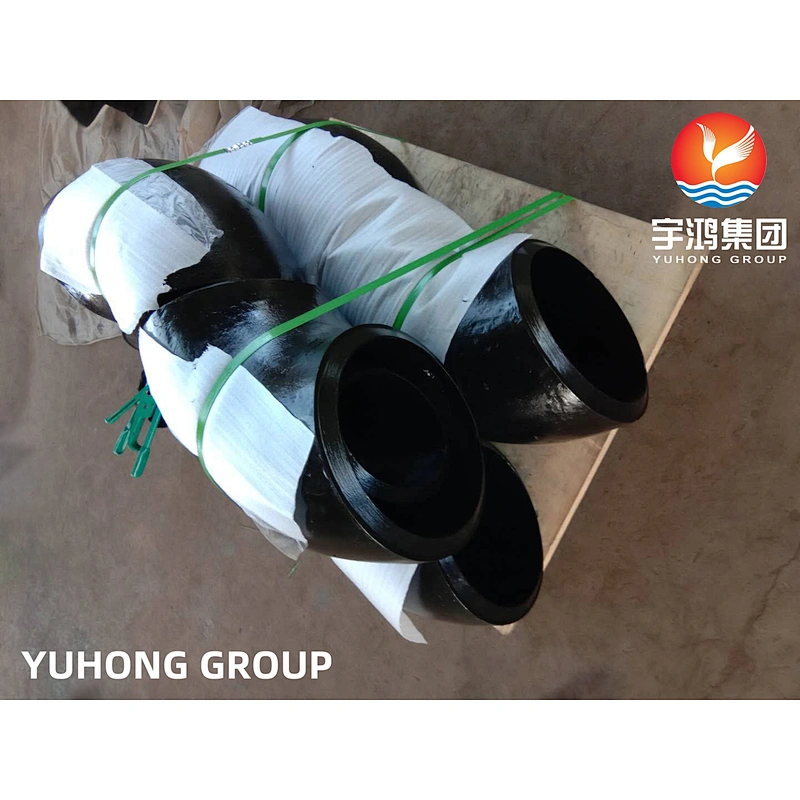

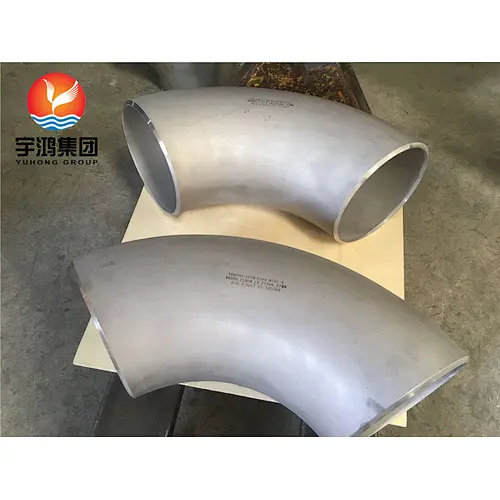

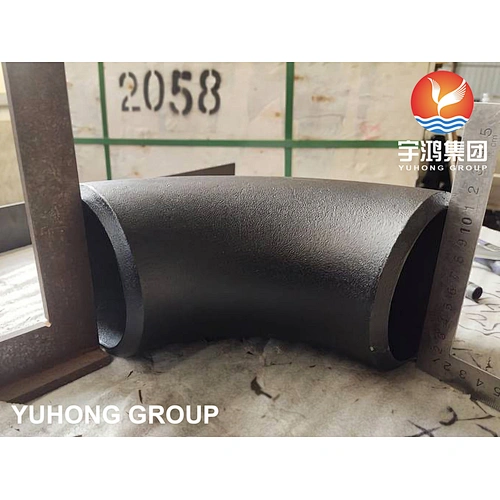

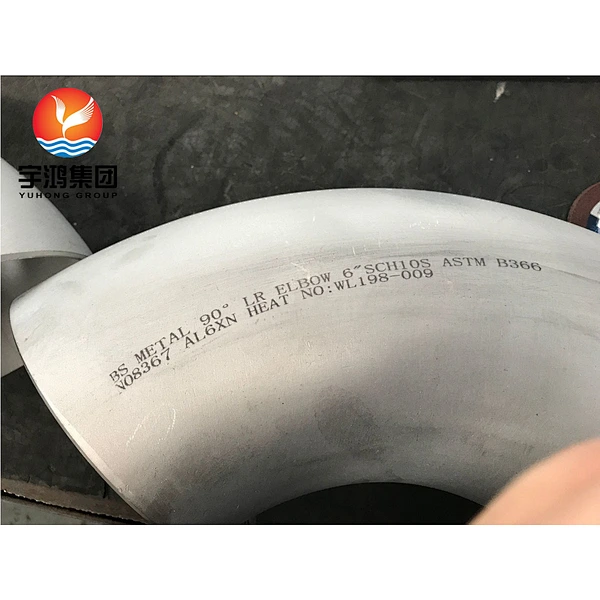

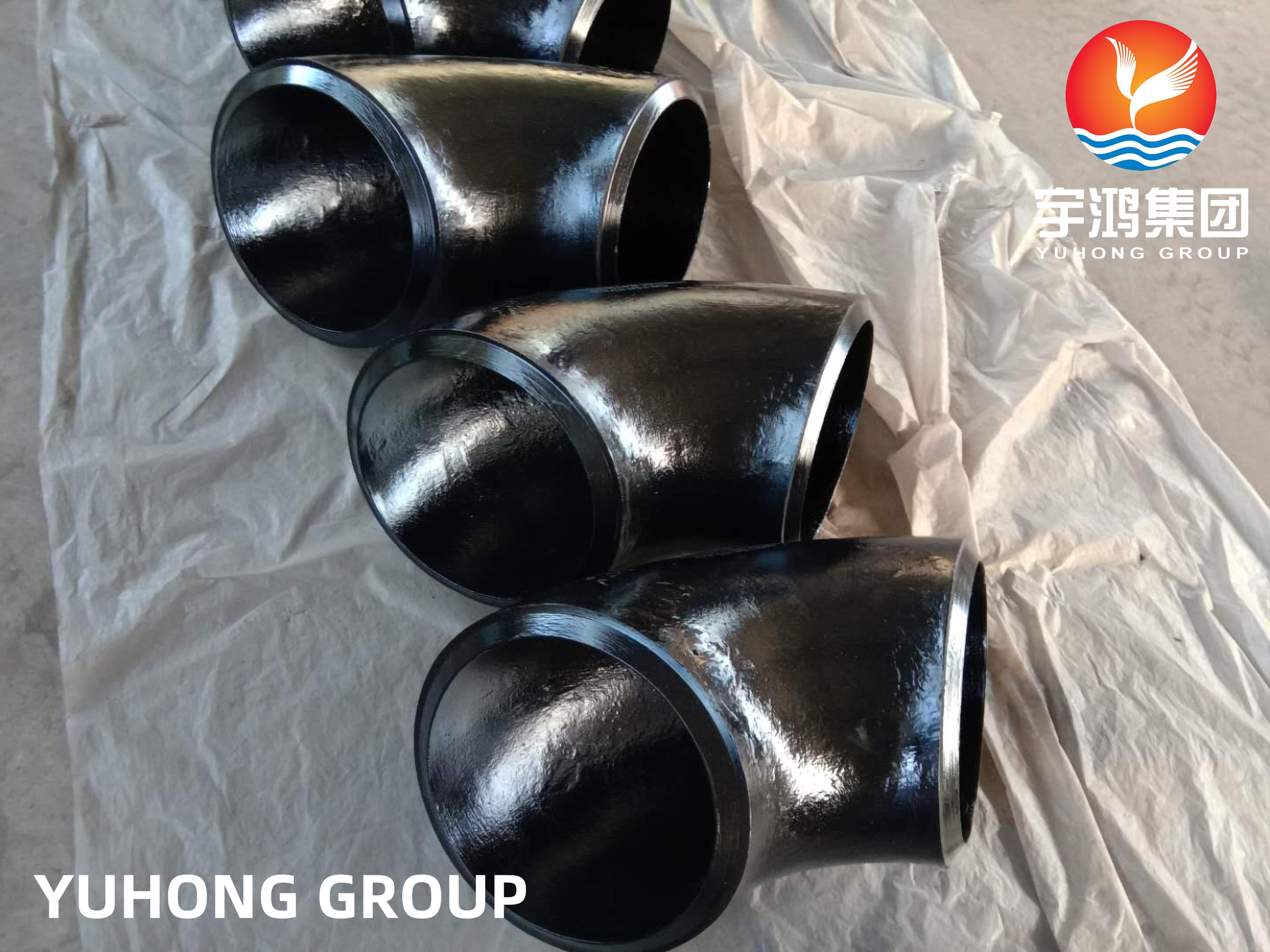

Steel elbow is used to be installed between two lengths of pipe or tube allowing a change of direction,usually these carbon steel elbows distinguished by connection ends, The ends may be machined for butt welding , threaded or socketed, so the carbon steel elbows are consist of butt weld,thread elbow socket elbow and other series.the material is selected according to the application use such as high temperature use,sanitary fitting,regular industrial use etc.
Specfication

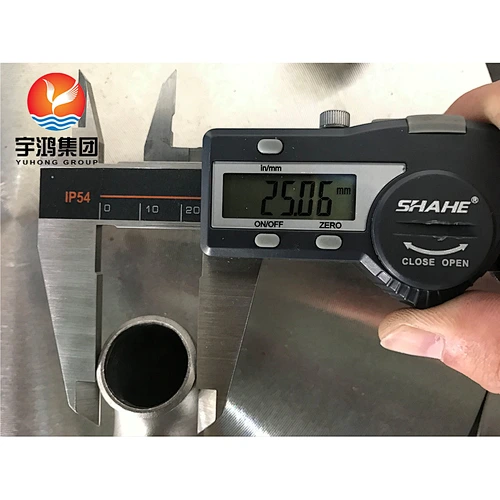

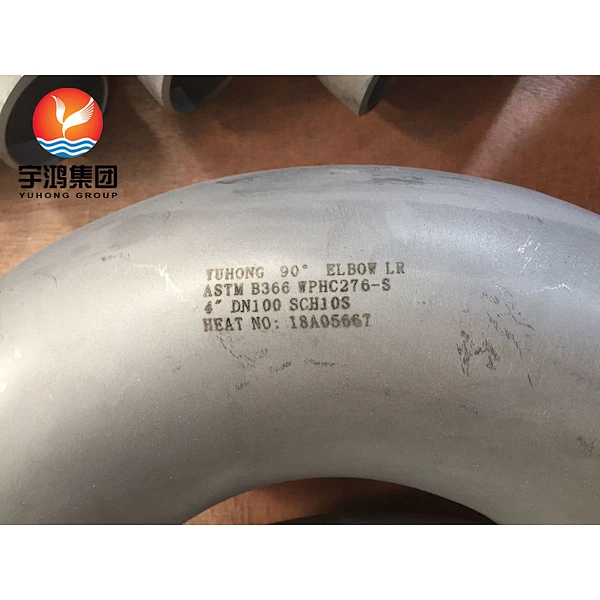

Product Name | Pipe Elbow |
Size | 1/2"-36" seamless, 26"-110" welded |
Standard | ANSI B16.9, EN10253-2, DIN2605, GOST17375-2001, JIS B2313, MSS SP 75, etc. |
Wall thickness | STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
Elbow | 30° 45° 60° 90° 180°,etc |
Radius | LR/long radius/R=1.5D,SR/Shrot radius/R=1D |
End | Bevel end/BE/buttweld |
Surface | Nature color, varnished, black painting, anti-rust oil etc. |
Material | Carbon steel: A234WPB, A420 WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH,P235GH, P265GH, P280GH, P295GH, P355GH etc. |
Pipeline steel: ASTM 1860 WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc. | |
Cr-Mo alloy steel: A234 WP11,WP22,WP5,WP9,WP91, 10CrMo9-10, 16Mo3 etc. | |
Advantages | Ready stock,faster delivery time;available in all sizes,austomized;high quality |
Chemical Composition
Grade | C | Mn | P | S | Si | Cr | Mo | Ni | Cu | V | Nb |
WPB | 0.3 | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
Mechanical Properties
Tensile Requirements | WPB | WPC, WP11CL2 | WP11CL1 | WP11CL3 |
Tensile Strength, min, ksi[MPa] | 60-85 | 70-95 | 60-85 | 75-100 |
(0.2% offset or 0.5% extension-under-load) | [415-585] | [485-655] | [415-585] | [520-690] |
Yield Strength, min, ksi[MPa] | 32 | 40 | 30 | 45 |
[240] | [275] | [205] | [310] |
Applications
1. Petrochemical Industry
2. Aviation and Aerospace Industry
3. Pharmaceutical Industry
4. Gas Exhaust
5. Power Plant
6. Ship Building
7. Water Treatment
