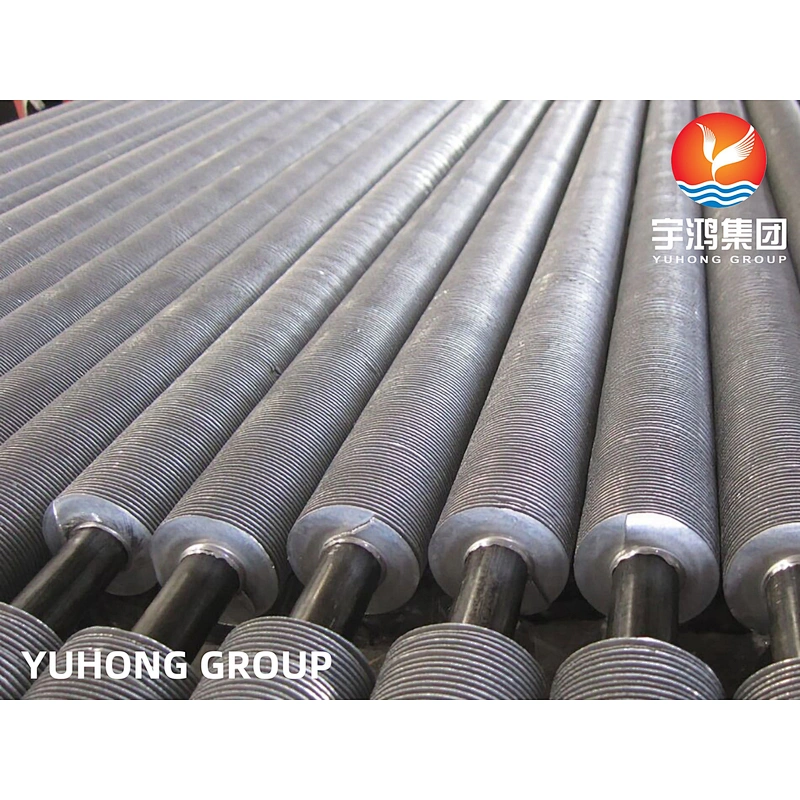

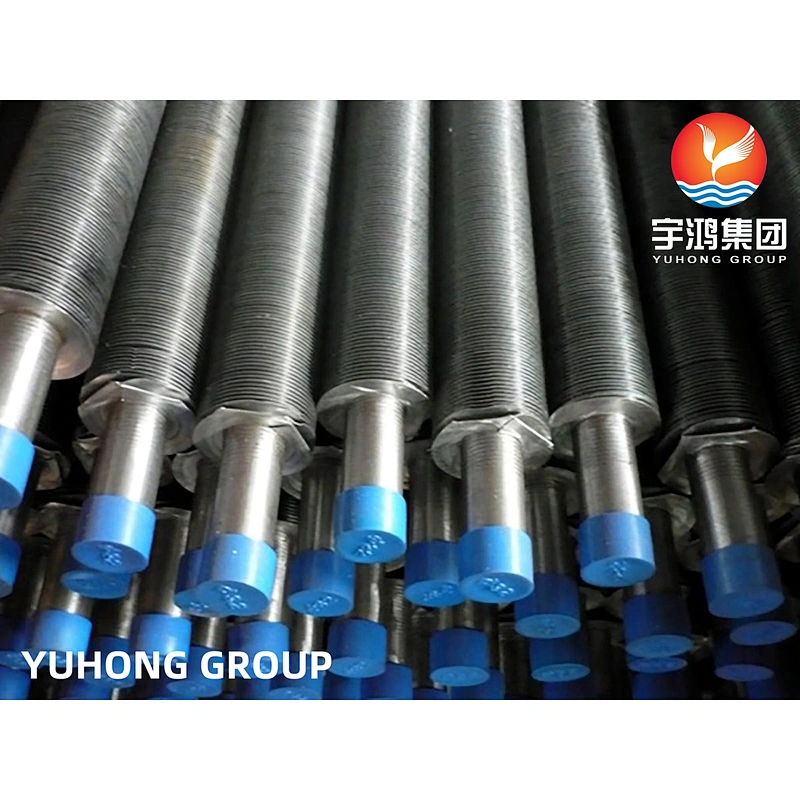

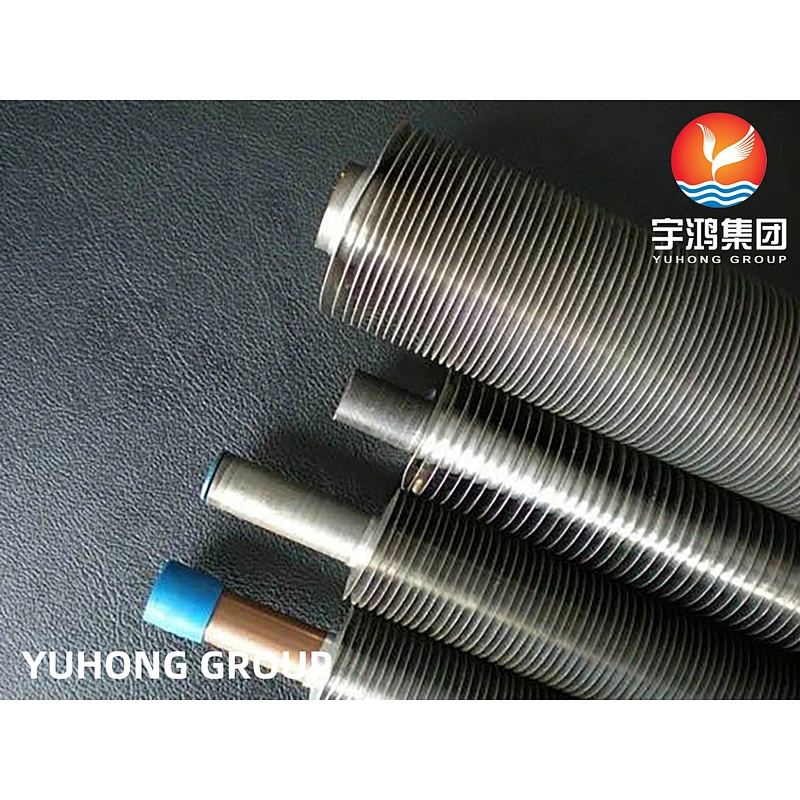

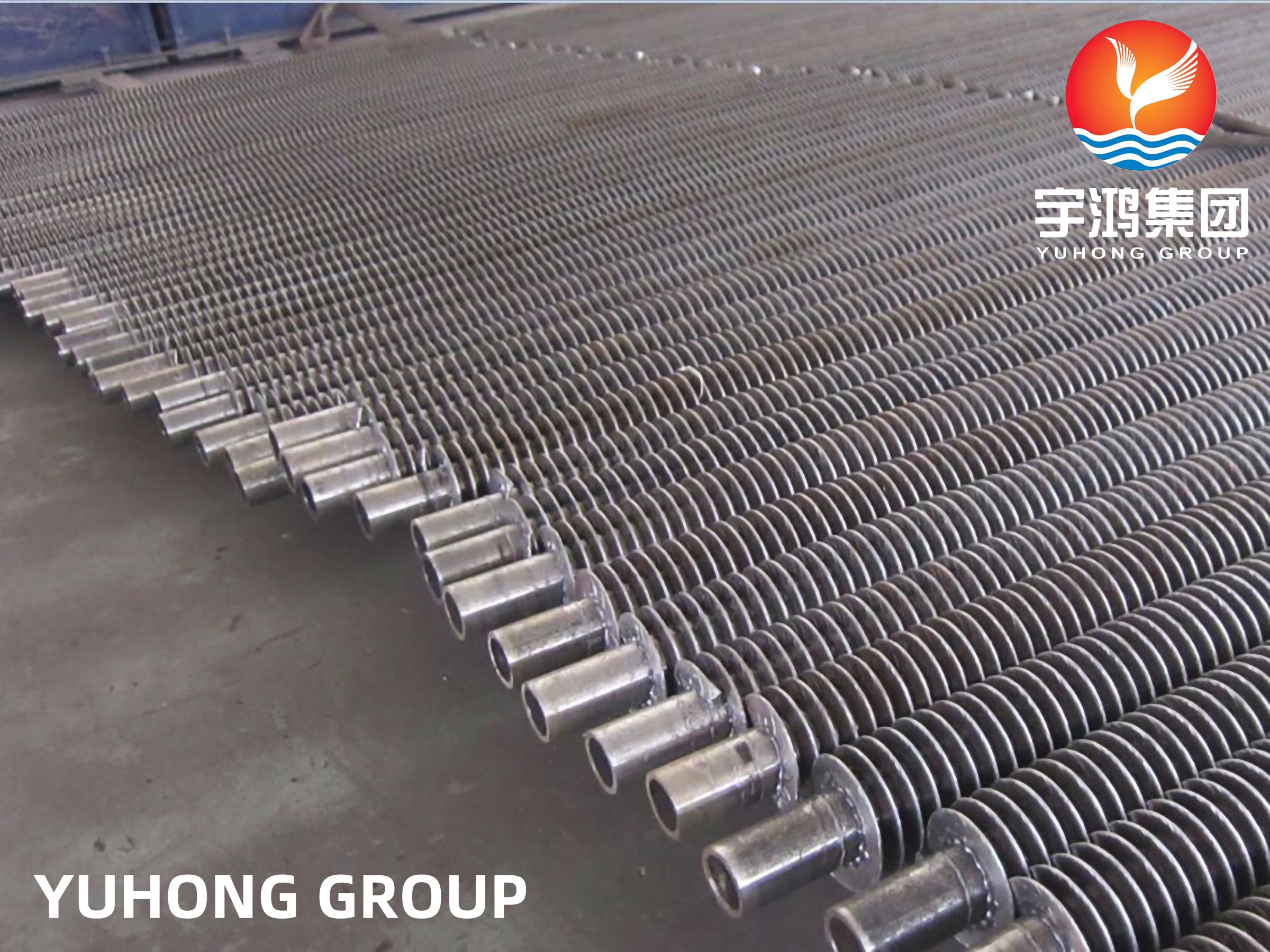

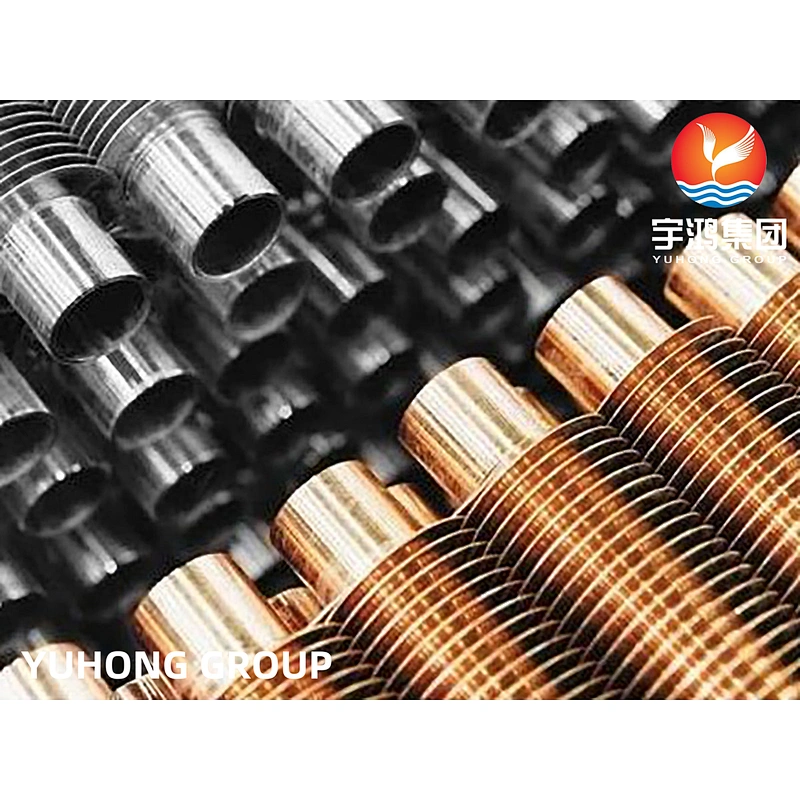

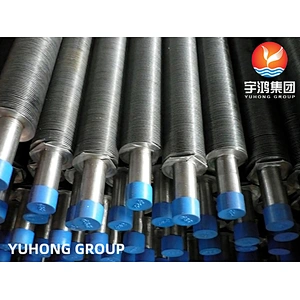

B338 Gr. 2 SMLS Titanium Heat Exchanger Fin Tube 1.245mmWT Spiral Extruded Finned Tube
ASTM B338: Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers
Detail
| General extrusion production capacity | General specifications of DR Type-Extruded Fin Tubes |
Extrusion Facility: 10 finning machines. | Tube OD: 50.8mm(2'') max. |
Description
Manufacturing Process
A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve.
Fins Type
The fins are solid plain or serrated into 12,16 or 24 segments or as your design.
Unfinned Section
Both plain ends with appr. 10mm~50mm and gaps (Unfinned Section) in the middle.
Surface Coating
Both bare ends of Bimetallic Finned Tubes shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating.
Accessories
Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).
Applications
The common application fileds are
1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants).
2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids).
3. The petroleum, chemical and petrochemical industries.
4. The food processing and refrigeration industries.
5. Natural gas treatment.
Specifications
Extruded Bimetallic Finned Tube is combined with two different materials.
| Items | General Materials | Popular ASTM Materials |
| Core Tube Material | Any metallic materials, as carbon steel, low-alloy steel, | 1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B |
| Fins Material | 1. Aluminum | 1. Aluminum (Alu.1100,Alu.1060,Alu.6063) |
All dimensions are in Inches and specification upon your requests. | |||
Tube OD | Fin Height | Fin Thickness | Fins per Pitch(Density) |
5/8 | 3/8,1/2 | .015/.016/ .020 | 4, 5, 6, 7, 8, 9, 10, 11, 12 |
3/4 | 3/8,1/2,5/8 | .015/.016/ .020 | 4, 5, 6, 7, 8, 9, 10, 11, 12 |
1 | 3/8,1/2,5/8 | .015/.016/ .020 | 4, 5, 6, 7, 8, 9, 10, 11 |
1 1/4 | 3/8,1/2,5/8 | .015/.016/ .020 | 4, 5, 6, 7, 8, 9, 10, |
1 1/2 | 3/8,1/2,5/8 | .015/.016/ .020 | 4, 5, 6, 7, 8, 9, 10, 11 |
1 3/4 | 3/8,1/2,5/8 | .015/.016/ .020 | 4, 5, 6, 7, 8, 9, 10 |
2 | 3/8,1/2,5/8 | .015/.016/ .020 | 4, 5, 6, 7, 8, 9, 10 |
Competitive Advantage
1. We have more than 10,000 square meters workshop, including 10 extrusion finning machines, daily extrusion capacity up to 3,000 Meters.
2. The extrusion finning machines are designed and assembled by ourselves and we can offer you finning machines, extrusion muff sleeves and all accessories (extrusion finning disks) etc...
3. DR-extruded bimetallic fin tubes maximum operating temperature: 300 degree. The transfer coefficient remains steady.
4. DR-extruded bimetallic fin tubes have stronger fins than other mechanical fins, like L, LL, KL, and G, so it is much easier to clean.
5. In application of high stress and corrosive condiction, DR-extruded bimetallic fin tubes provides an excellent technical and economical savings in comparsion to a costlier single alloy tube, as the use of costlier material is reduced to the min.
Grade
Gr. A, Gr. B , Gr. C 10# , 20% 16Mn ,20G, A1
Standard
A179 , A192 , A210
Packing
Ply-Wooden Case, Iran Case
Delivery Time
5---15 Days
High Light
extruded finned tube, heat exchanger fin tube
