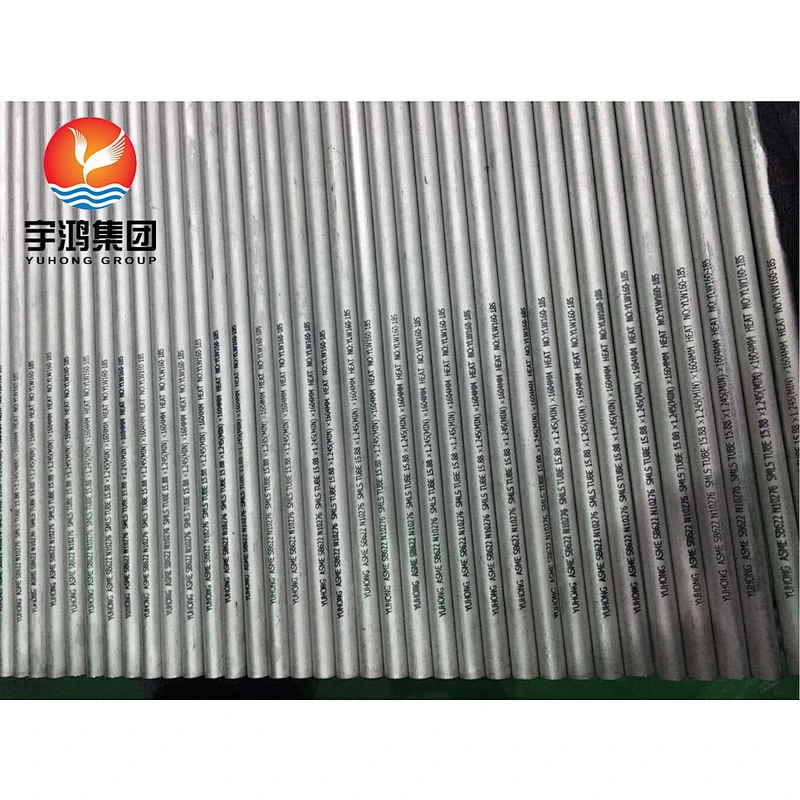

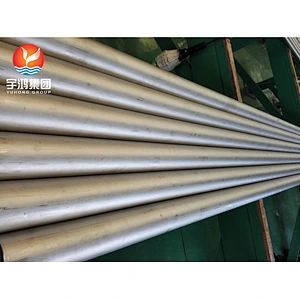

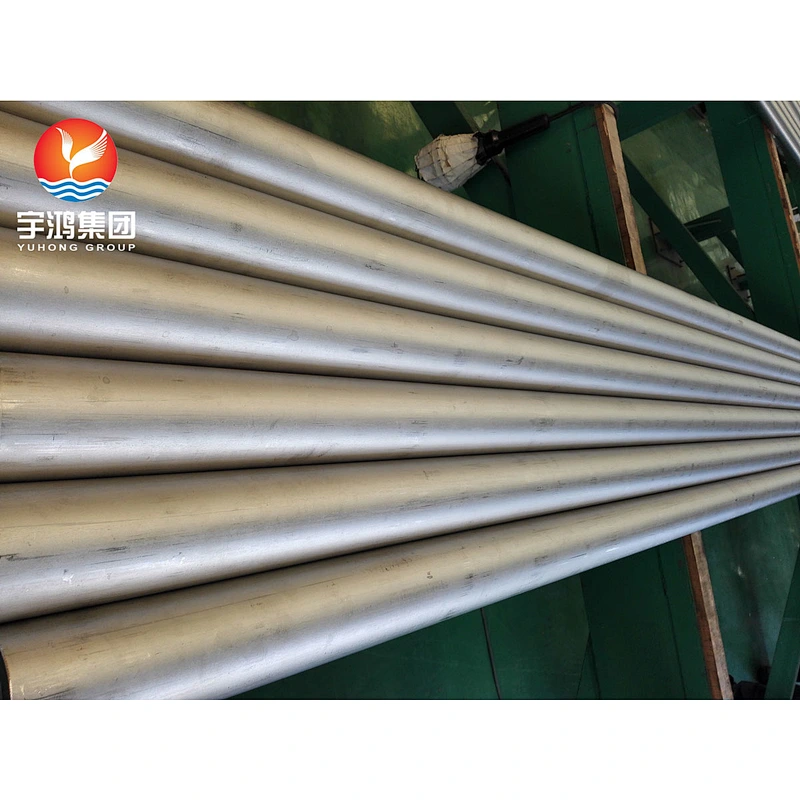

Overview
Hastelloy C276 is a nickel-molybdenum-chromium superalloy with an addition of tungsten designed to have excellent corrosion resistance in a wide range of severe environments. The high nickel and molybdenum contents make the nickel steel alloy especially resistant to pitting and crevice corrosion in reducing environments while chromium conveys resistance to oxidizing media. The low carbon content minimizes carbide precipitation during welding to maintain corrosion resistance in as-welded structures. This nickel alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process application in an as welded condition.
Although there are several variations of the Hastelloy nickel alloy, Hastelloy C-276 is by far the most widely used. It's widely used in the most severe environments such as chemical processing, pollution control, pulp and paper production, industrial and municipal waste treatment, and recovery of sour natural gas.

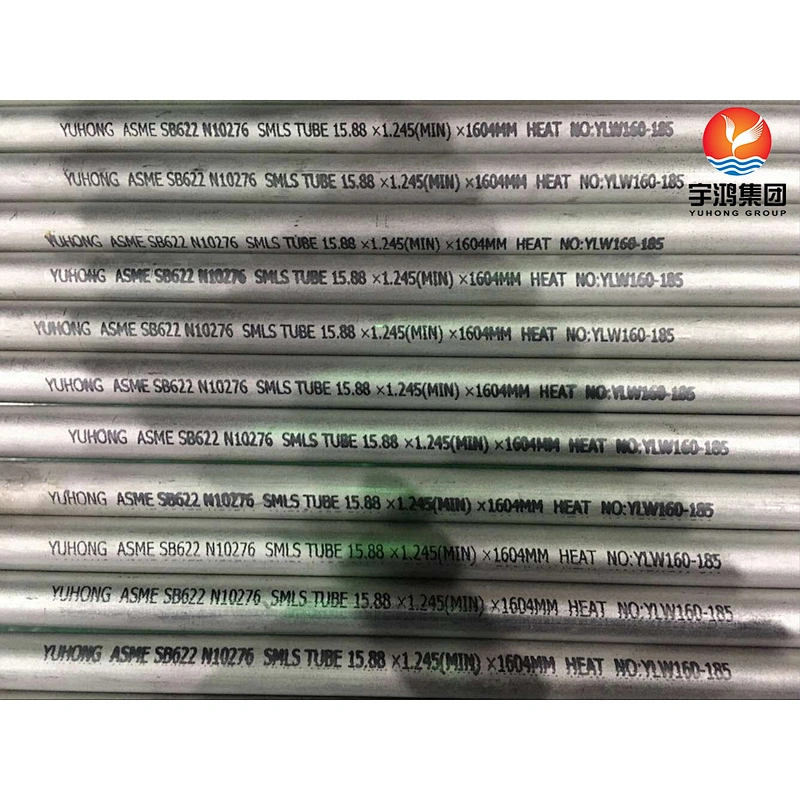

Specification

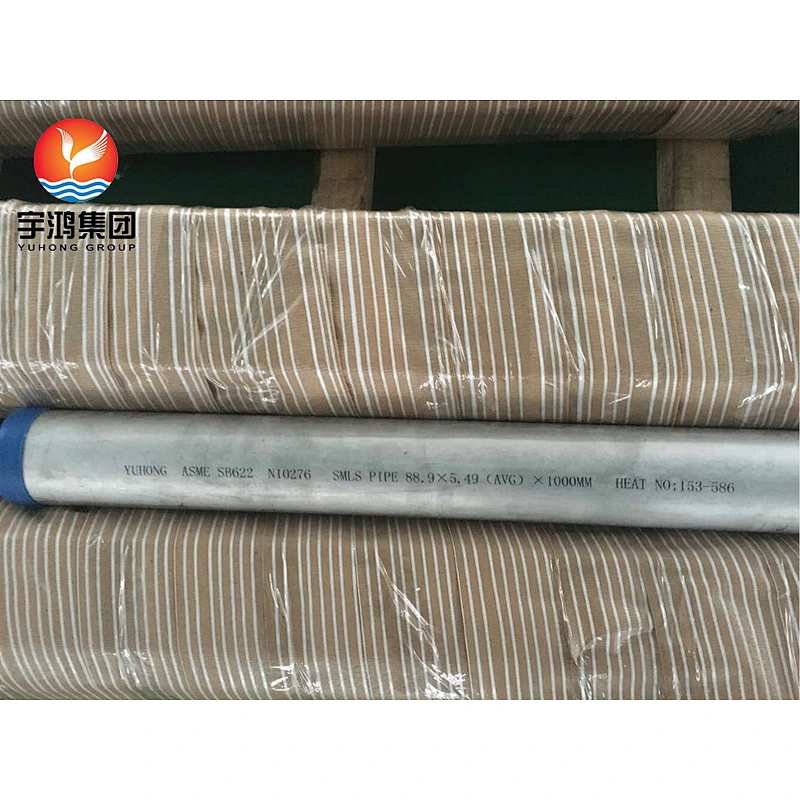

ASTM B622-17b Standard Specification for Seamless Nickel and Nickel-Cobalt Alloy Pipe and Tube.

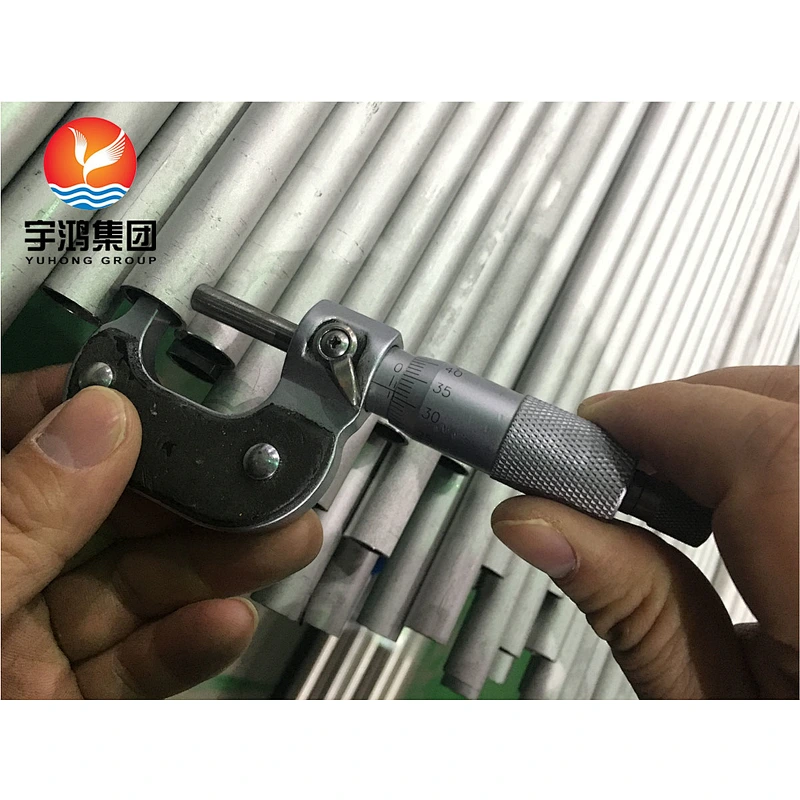

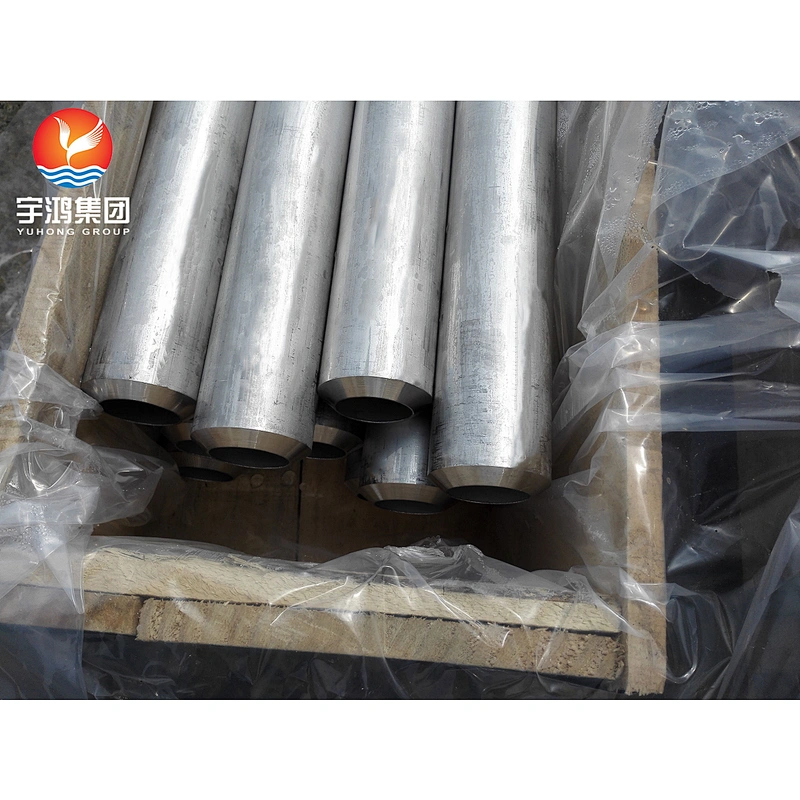

| Specifications | ASTM B622, B626 / ASME SB622, SB626 |
| Dimensions | ASTM, ASME and API |
| Size | 6 mm OD x 0.7 mm to 50.8 mm OD x 3 mm thk. |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Tubes |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
Equivalent Grades for Hastelloy Alloy C276 Tubes :
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | OR | GOST |
| Hastelloy C276 | N10276 | 2.4819 | - | NiMo16Cr15W | NW 0276 | ЭП760 | ХН65МВУ |
Chemical Composition
| Hastelloy C276 | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr |
| Balance | 0.010 max | 15.00 – 17.00 | 1.00 max | 0.08 max | 4.00 – 7.00 | 0.04 max | 0.03 max | 2.5 max | 14.50 – 16.50 |
Mechanical Properties
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 52,000 MPa – 355 | Psi – 1,15,000 MPa – 790 | 40 % |
Alloy C276 Tubing Pressure Rating
Tube O.D. | Wall Thickness of Tube (inches) | |||||||
|---|---|---|---|---|---|---|---|---|
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Working Pressure (psig) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5C276 | 7300 | |||||
| 3/8 | 3100 | 4C276 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4C276 | |||||
| 3/4 | 2200 | 3000 | C2760 | 4600 | ||||
| 1 | 2200 | 2900 | 3C276 | 3900 | 4300 | |||
Applications
- 1. Pollution control stack liners, ducts, dampers, scrubbers, stack-gas reheaters, fans and fan housings.
- 2. Flue gas desulfurization systems.
- 3. Chemical processing components like heat exchangers, reaction vessels, evaporators, and transfer piping.
- 4. Sour gas wells.
- 5. Pulp and paper production.
- 6. Waste treatment.
- 7. Pharmaceutical and food processing equipment.
