Overview
Super duplex 2507 / UNS S32750 pipe fittings have great resistive properties to chloride stress corrosion cracking and a high thermal conductivity with a low coefficient of thermal expansion. These pipe fittings have a great resistance to inorganic acids used in dilute hydrochloric acid.
The ASTM A815 covers Duplex Steel and Super Duplex Pipe Fittings / Buttweld Fittings used for bleaching equipment in the pulp and paper industry also for high-temperature service. Duplex stainless steels are extremely corrosion resistant, work hardenable alloys. Their microstructures consist of a mixture of austenite and ferrite phases. As a result, duplex stainless steels display properties characteristic of both austenitic and ferritic stainless steels. This combination of properties can mean some compromise when compared with pure austenitic and pure ferritic grades.
Duplex stainless steels are in most cases, tougher than ferritic stainless steels. Strengths of duplex stainless steels can in some cases be double that for austenitic stainless steels.

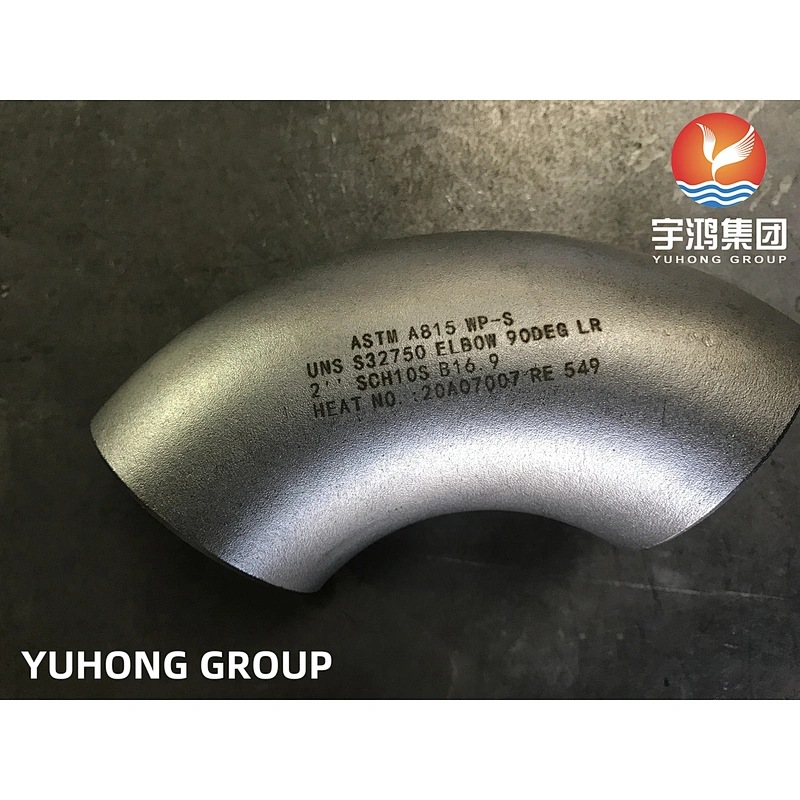

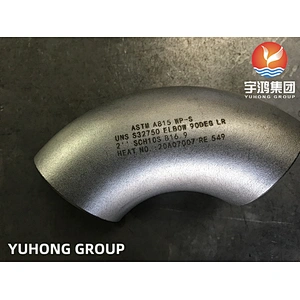

S32750 duplex pipe fittings is one of the buttweld fittings and is available in various shapes, sizes and specifications. This is used in marine industries, nuclear projects, power plants and other chemical industries. The durability of ASTM A815 WPS S32750 Fittings is excellent and the specification of this has two types i.e. WP and CR. By using several chemicals like carbon, manganese, phosphorus, silicon and many more are used. Several grades are also involved like ASTM A815 UNS S31803, A815 UNS S32750 lot more. ASTM A815 WPS 32750 Elbowpipe fittings is usually design to work as in high strength, corrosion resistance to be high, perfect weldability. All these features will be available in the product manufactured by us. As earlier said that there are several types of grades,A815 UNS S32750 Duplex Tube fittings is one of them.
Specification
ASTM A815/A815M-20 Standard Specification for Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings.
| Specifications | ASTM A815 / ASME SA815 |

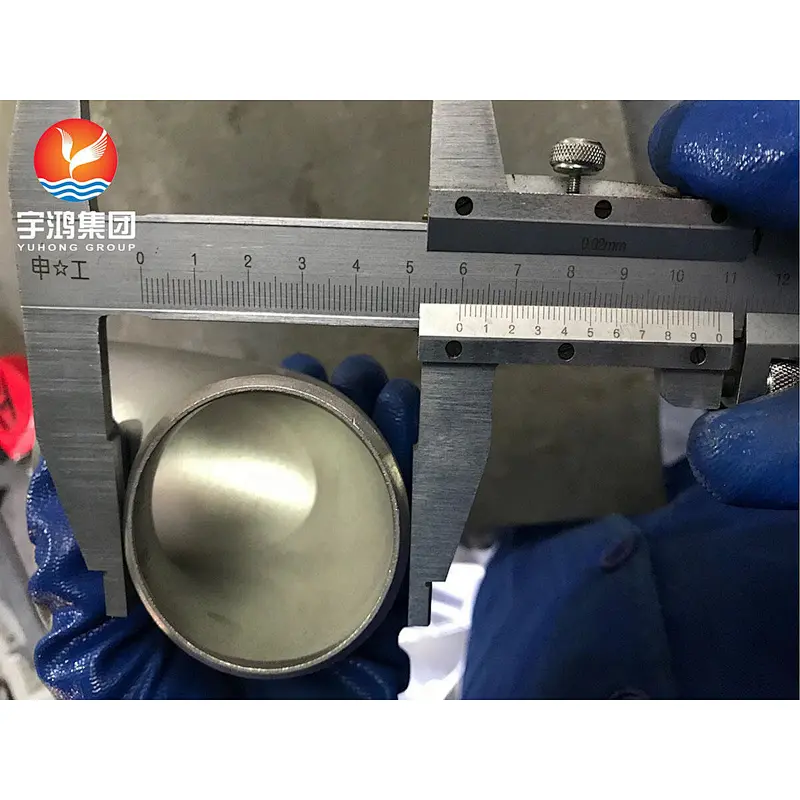

| Size | Seamless Butt Weld Fittings: 1/2″ – 24″, Welded Butt Weld Fittings: 1/2″ – 48″ |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |

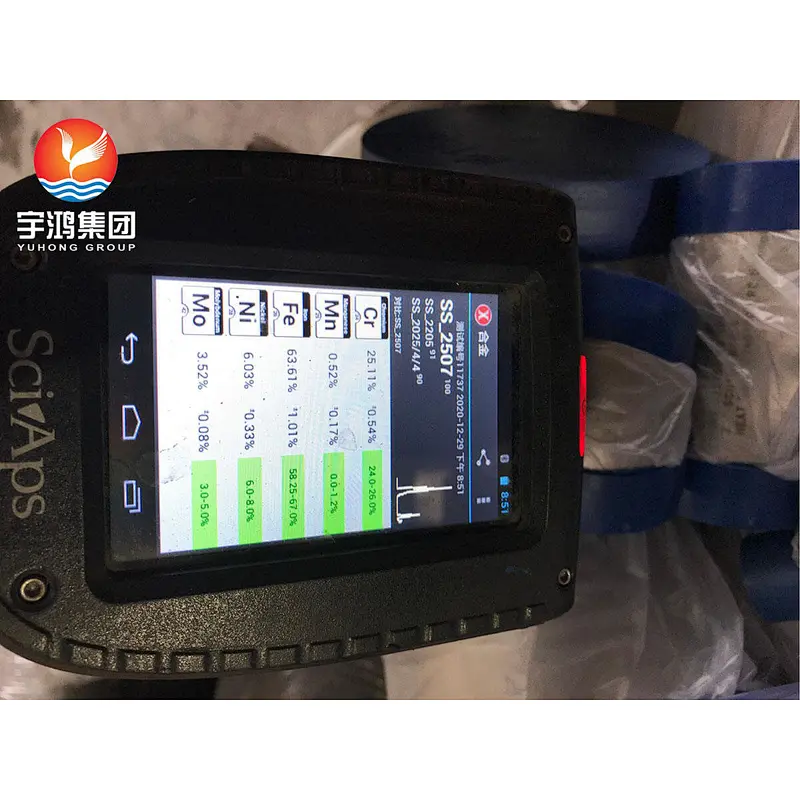

| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
Mechanical Properties
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32750 | 7.8 | 0.281 | 1350 | 2460 |
Applications
- 1. Chemical processing, transport and storage
- 2. Oil and gas exploration and offshore rigs
- 3. Oil and gas refining
- 4. Marine environments
- 5. Pollution control equipment
- 6. Pulp & paper manufacturing
- 7. Chemical process plant
