The mechanical features of incoloy 800/800HT are paired with their resistance to corrosion properties at the elevated temperatures that makes the Incoloy alloys extremely purposeful for using in the different high temperature and long term oriented operations. These alloys are also significantly used in the variety of corrosive media. The chemical composition limits of Incoloy 800H and 800HT reside within the limits of Incoloy alloy 800. Alloy 800 comprises of large mechanical strength over high temperatures. It is suitable for using up to 1500℉. The vital difference between Incoloy alloy series depends on the difference of their mechanical properties. The difference in the mechanical properties is due to difference in their chemical composition and the different temperature annealing. Generally Incoloy 800 alloy possesses higher mechanical properties at the room temperatures and minimum to high temperature exposures. On the other side the Incoloy 800H and 800HT alloys offer high creep and stress rupture strength at the higher temperature exposures.

Incoloy 800 Seamless Tube ASTM B163/ B423 /B407 Incoloy 800/ 800H/800HT/825 /925/926 Solid and Hot Finished

YUHONG GROUP deal with Stainless/Duplex/ Nickel steel seamless tube and tube already more than 10 years, every year sell more than 80000 tons of Stainless/Duplex/ Nickel steel seamless tube and tube. Our client already cover more than 45 countries. Our Stainless Steel Seamless tube and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc. ANSI B16.10: B16.19 SCH 5S, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 60, SCH80S, XS, SCH 100, SCH 120, SCH160, XXS.

Incoloy Alloy 800H/800HT/800AT

Incoloy 800, Alloy 800, Ferrochronin 800, Nickelvac 800, Nicrofer 3220.

Common Trade Names: Incoloy 800H/800HT/800AT, Alloy 800H/800HT/800AT, Ferrochronin 800H/800HT/800AT, Nickelvac 800H/800HT/800AT, Nicrofer 3220.

INCOLOY alloy 800H/800HT/800AT is designated as UNS NO8810, UNS NO8811 and Werkstoff Number 1.4876, 1.4958, 1.4959. It is listed in NACE MR0175 for oil and gas service. Nickel-iron-chromium alloys having the same basic composition as INCOLOY alloy 800 but with significantly higher creep-rupture strength. The higher strength results from close control of the carbon, aluminum, and titanium contents in conjunction with a high-temperature anneal. Used in chemical and petrochemical processing, in power plants for super-heater and reheater tubing, in industrial furnaces, and for heattreating equipment.

Specifications

INCOLOY alloy 800H/800HT/800AT is designated as UNS NO8810, UNS NO8811 and Werkstoff Number 1.4876, 1.4958, 1.4959. It is listed in NACE MR0175 for oil and gas service.

Rod, Bar, Wire, Forgings, and Forging Stock:

ASTM B 408, ASME SB 408 (Rod & Bar), ASTM B 564, ASME SB 564 (Forgings), ASME Code Case 1325 (All Product Forms), ASME Code Case 1949 (Forgings), AMS 5766 (Rod & Bar), ISO 9723 (Rod & Bar), ISO 9724 (Wire), ISO 9725 (Forgings), BS 3076NA15 (Rod & Bar), BS 3075NA15 (Wire), VdTÜV 412 (All Products).

Plate, Sheet, and Strip:

ASTM A 240, ASTM A 480, ASME SA 240, ASME SA 480 (Plate, Sheet, and Strip), ASTM B 409, ASTM B 906, ASME SB 409, ASME SB 906 (Plate, Sheet, and Strip), ASME Code Case 1325 (All Product Forms), ASME Code Case 2339 (Plate), AMS 5871 (Plate, Sheet, and Strip), BS3072NA15 (Plate & Sheet), BS 3073NA15 (Strip), VdTÜV 412 (All Products), ISO 6208 (plate, sheet andstrip).

Pipe and Tubes:

ASTM B 163 & ASME SB 163 (Seamless Condenser & Heat Exchanger Tubes), ASTM B407, ASTM B 829, ASME SB 407, ASME SB 829 (Seamless Pipe & Tubes), ASTM B 514, ASTM B 775, ASME SB 514, ASME SB 775 (Welded Pipe), ASTM B 515, ASTM B 751, ASME SB 515, ASME SB 751(Welded Tubes), ASME Code Case 1325 (All Product Forms), ASME N-20 (Cold Worked Seamless Condenser and Heat Exchanger Tubes for Nuclear Service), BS 3074NA15 (Seamless Pipe & Tubes), VdTÜV 412 (All Products), ISO 6207 (Seamless Tubing).

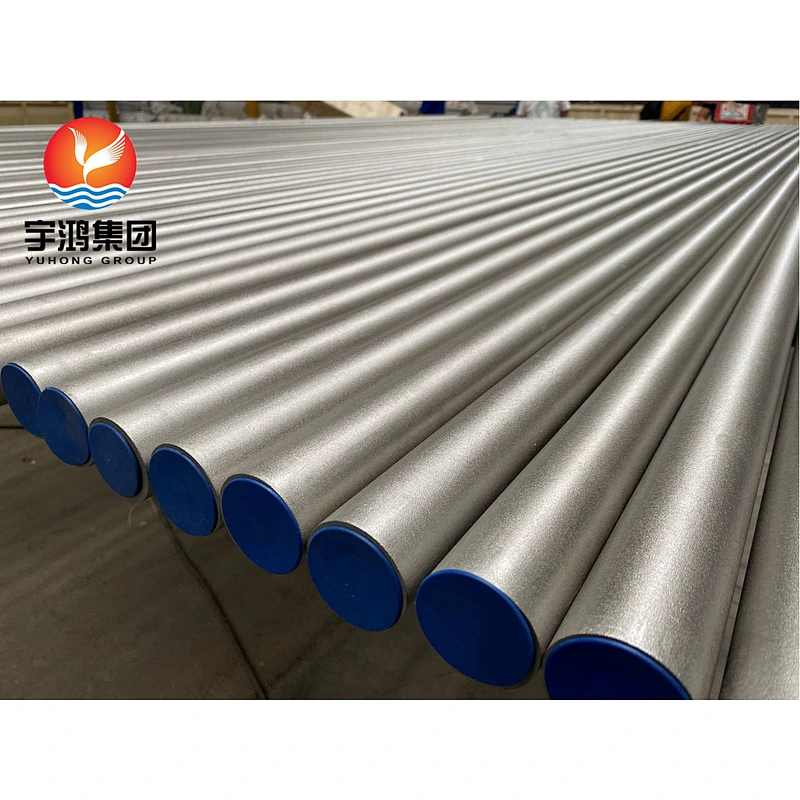

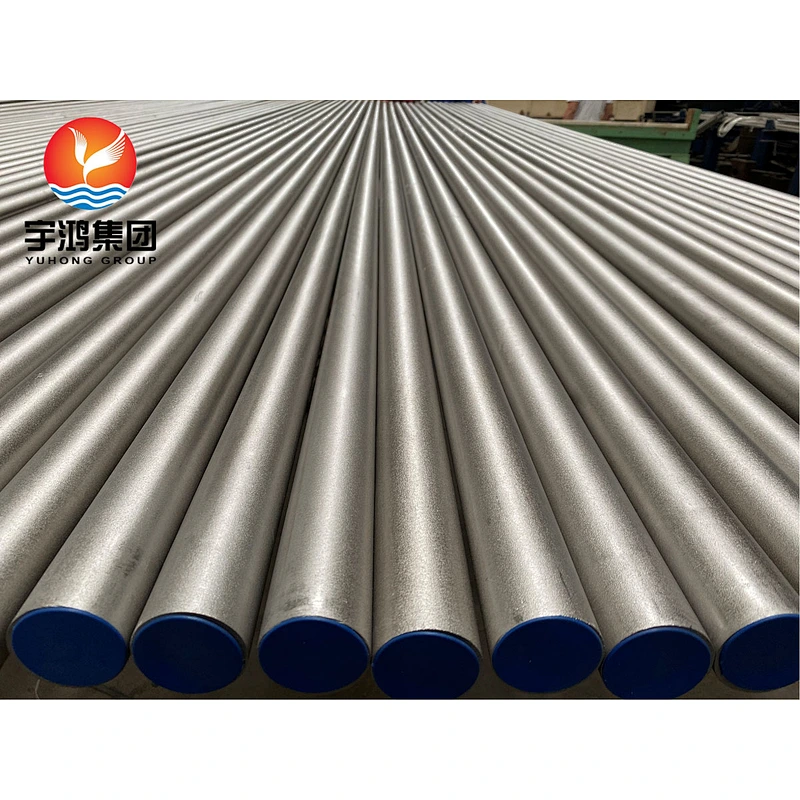

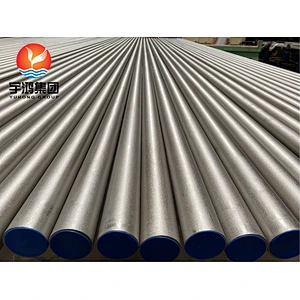

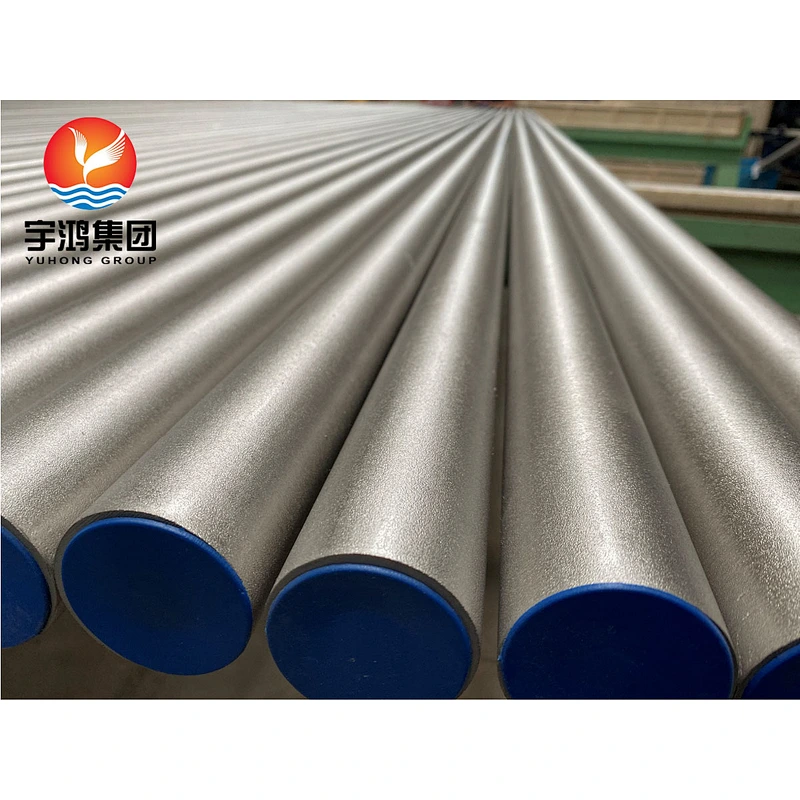

INCOLOY 800 / 800H / 800HT SEAMLESS TUBES
UNS No: UNS NO8810
Werkstoff Nr: 1.4958
Common Trade Names: Incoloy 800, Ferrochronin 800, Nickelvac 800, Nicrofer 3220

The above names are trade names and/or trademarks of specific manufactures including Special Metal Corporation. Prosaic Steel & Alloy is not affiliated with any manufacturer(s). Orders will be filled to meet specifications from any available source(s). Names are listed solely for reference to help identify products consistent with listed specifications.

Incoloy alloy 800 is a widely used material of construction for equipment that must have high strength and resist carburization,oxidation and other harmful effects of high-temperature exposure. (For high temperature applications requiring optimum rupture and creep properties, Incoloy alloys 800H and 800HT are used). The chromium in the alloy imparts resistance to oxidation and corrosion. The high percentage of nickel maintains an austenitic structure so that the alloy is ductile. the nickel content also contributes general corrosion, resistance to scaling and stress-corrosion cracking.

Incoloy alloy 800 is used in a variety of applications involving exposure to high temperatures and corrosive environments. It is used for heat-treating equipment such as baskets, trays and fixtures. In chemical and petrochemical processing the alloy is used for heat exchangers and other piping systems in nitric acid media especially where resistance to chloride stress-corrosion cracking is required. In nuclear power plants, it is used for steam-generator tubing. The alloy is often used in home appliances for sheathing of electric heating elements. In the production of paper pulp, digester liquid heaters are often made of alloy 800. In petroleum processing , the alloy is used for heat exchangers that air-cool the process stream.
Incoloy 800 is a nickel-chromium alloy with good strength and excellent resistance to oxidation and carburization. The alloy maintains stable structure during exposure to high temperature, therefore incoloy 800 has good corrosion resistance to many acidic environments.
